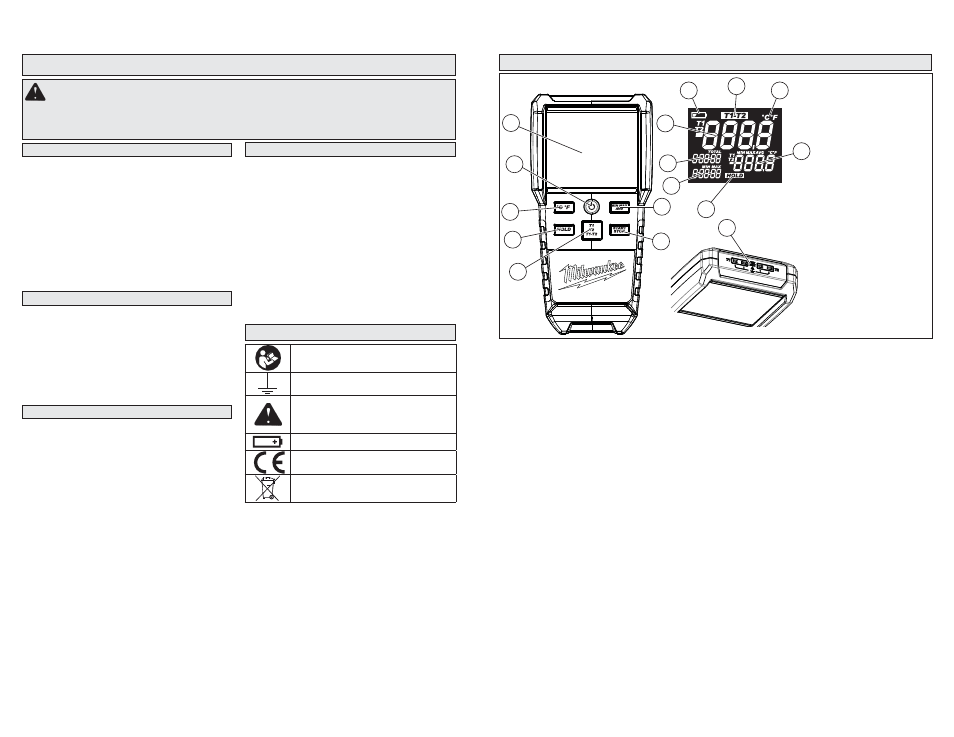

FUNCTIONAL DESCRIPTION
1. Display
2. Power ON/OFF
3. °C or °F selector
4. Hold button
5. Mode selector
6. START STOP button
7. MIN MAX AVG button
8. T1 and T2 inputs
9. Battery life indicator
10. Primary measurement
11. Elapsed time total
12. Time MIN MAX
13. Hold indicator
14. Secondary measurement
15. °C or °F indicator
16. Delta T1-T2 indicator
Specifi cations
Contact temp range: -200°C to 1372°C (-328°F to 2501°F)
Accuracy
For ambient temperatures 18°C to 28°C (64°F to 82°F)
Measurements from -100°C to 1372°C (-148°F to 2501°F)
± (0.1% of reading + 0.7°C)/(0.1% of reading +1.3°F)
Measurements from -200°C to -100°C (-328°F to -148°F)
± (0.4% of reading +0.7°C)/(0.4% of reading +1.3°F)
Temperature Coeffi cient
Measurements from -100°C to 1372°C (-148°F to 2501°F)
(0.01% of reading + 0.05°C) per degree C outside 18°C to 28°C ambient
(0.0056% of reading +0.05°F) per degree F outside of 64°F to 82°F ambient
Measurements from -200°C to -100°C (-328°F to -148°F)
(0.04% of reading + 0.05°C) per degree C outside 18°C to 28°C ambient
(0.022% of reading +0.05°F) per degree F outside of 64°F to 82°F ambient
Contact temp display resolution: 0.1°C/°F
K-Type Probe temp range: -60°C to 200°C (-76°F to 392°F)
K-Type Probe temp input accuracy: ±1.1°C or ±0.4% of reading, whichever is greater
Drop: 1 meter
Operating temperature: -10°C to 50°C (14°F to 122°F)
Storage temperature: -40°C to 60°C (-40°F to 140°F)
Relative humidity: 10 to 90% RH non-condensing at <30°C (<86°F) ambient
Battery: 3 AA batteries, LR6, 4.5V DC
Battery life: Greater than 80 hrs with all functions
Safety Compliances .... EN61326-1,2; IEC61000-3-2,3; IEC61000-4-2,3,4,5,6; CISPR11; FCC Part 15
Certifi cations .... CE
IMPORTANT SAFETY INSTRUCTIONS
PERSONAL SAFETY
WORK AREA SAFETY
BATTERY USE AND CARE
SERVICE
WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow
the warnings and instructions may result in electric shock, fi re and/or serious injury.
Save these instructions - This operator’s manual contains important safety and operating
instructions for the MILWAUKEE Contact Temp Meter. Before using, read this operator’s
manual and all labels on the meter.
• Keep children and bystanders away while
operating meter. Store idle Contact Temp
Meters out of the reach of children and do not
allow persons unfamiliar with the tool or these
instructions to operate them.
• Avoid dangerous environments. Do not use in
rain or snow. Do not immerse meter in water or
allow water to fl ow into the meter. Do not use in
the presence of explosive atmospheres (gaseous
fumes, dust or fl ammable materials) because
sparks may be generated when inserting or remov-
ing batteries, possibly causing fi re.
• Stay alert, watch what you are doing and use
common sense when operating meter. Do not
use while you are tired or under the infl uence
of drugs, alcohol or medication. A moment of
inattention may result in serious personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
in unexpected situations.
• Never connect the probe to an energized circuit.
• This tool is designed to be powered by
3-AA batteries properly inserted into the
MILWAUKEE meter. Do not attempt to use with
any other voltage or power supply.
• Do not leave batteries within the reach of children.
• Do not mix new and used batteries. Do not mix
brands (or types within brands) of batteries.
• Do not mix rechargeable and non-rechargeable
batteries.
• Install batteries according to polarity (+ / –)
diagrams.
• Properly dispose of used batteries immedi-
ately.
• Do not incinerate or dismantle batteries.
• Under abusive conditions, liquid may be eject-
ed from the battery, avoid contact. If contact
accidentally occurs, fl ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Have your meter serviced by a qualifi ed repair
person using only identical replacement parts.
This will ensure that the safety of the tool is main-
tained.
• Do not disassemble. Incorrect reassembly may
result in the risk of electric shock or fi re. If it is dam-
aged, take it to a MILWAUKEE service facility.
• Store in a cool, dry place. Do not store where
temperatures may exceed 140°F (60°C) such as
in direct sunlight, a vehicle or metal building during
the summer.
• Do not remove or deface labels. Maintain labels
and nameplates. These carry important information.
If unreadable or missing, contact a MILWAUKEE
service facility for a free replacement.
SYMBOLOGY
Read Operator’s Manual
Earth
Danger, Warning, or Caution -
Consult the operators manual for
additional safety information.
Battery compartment
European Conformity Mark
Do not dispose of this product as
unsorted municipal waste.
11
12
13
14
15
16
4
2
1
3
5
6
7
8
9
10
