3

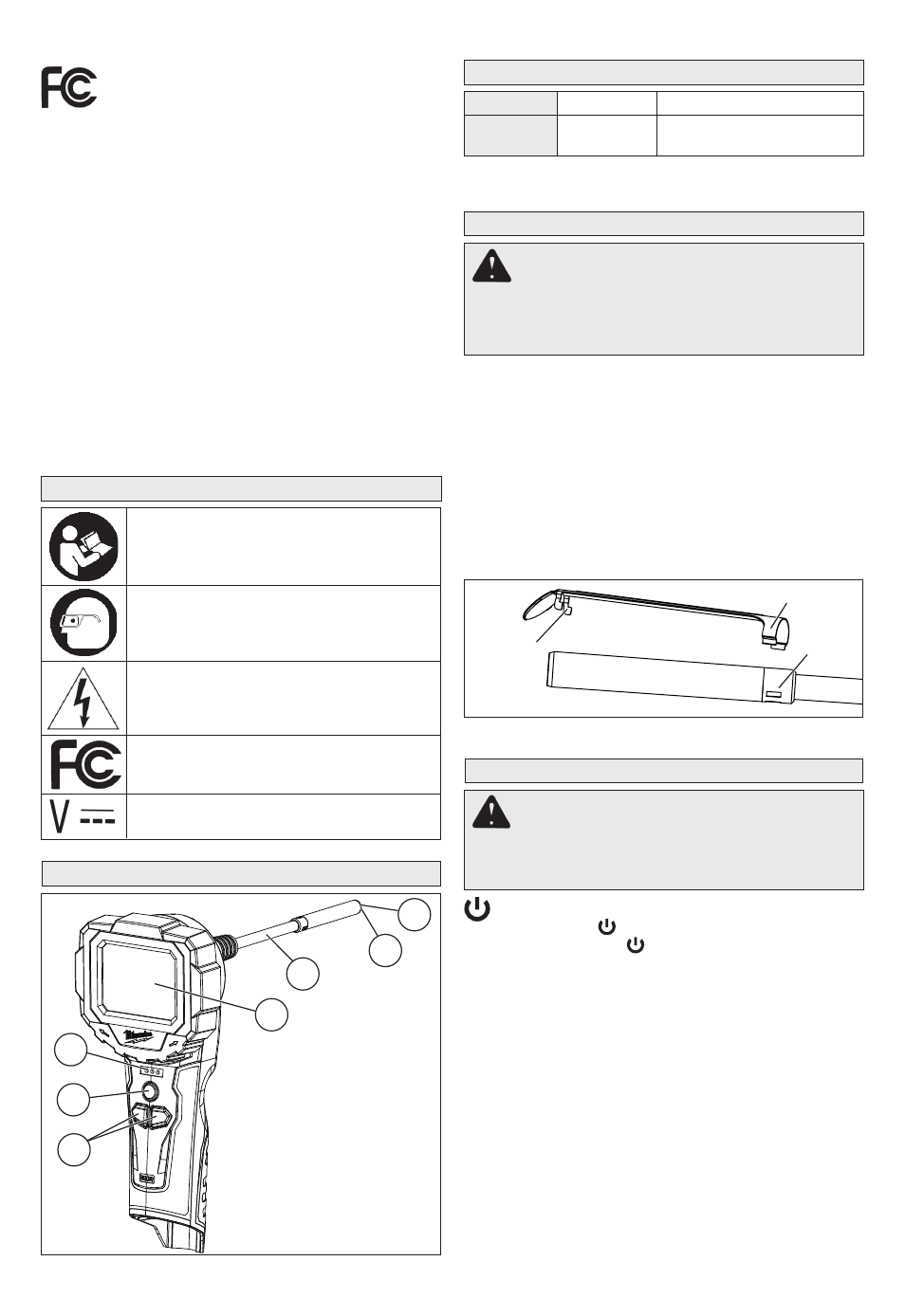

funcTional descripTion
Federal
Communications
Commission
specificaTions
Direct Current
symbology
To prevent electric shock, do not allow
product to contact live electrical parts
Federal Communications Commission
User must read operator’s manual
Wear eye protection
1. Camera
2. Camera LEDs
3. Cable
4. Rotating LCD
5. Fuel gauge
6. Power button
7. LED brightness
increase/decrease
buttons
WARNINg: This is a class
A product. In a domestic
environment this product
may cause radio interference in which case the user
may be required to take adequate measures.
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence when the equipment is operated in a commercial
environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may
cause harmful interference to radio communications. Op-
eration of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
assembly
Warning
Recharge only with the
charger specified for the battery. For
specific charging instructions, read the
operator’s manual supplied with your charger
and battery.
Inserting/Removing the Battery
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
Attaching/Removing Accessories
To attach an accessory, hook the two front hooks
over the front of the camera. Press the clip over the
back end of the camera to snap it into the detents.
To remove, pull up on the clip and then unhook
the accessory.
Cat. No. volts DC Cable Length
2313-20
2314-20
12
12
3 ft
9 ft
Clip
Detent
4
5
3
6
7
1
2
operaTion
Warning
To reduce the risk of injury,
wear safety goggles or glasses with side
shields. Always remove battery pack before
changing accessories or making adjustments.
Turning On/Off
Press the Power button to turn the tool on. Press
and hold the Power button to turn the tool off.
Sleep Mode
The tool will shut off automatically if unused for 5
minutes. To reset, press the Power button again.
Fuel gauge
To determine the amount of charge left in the bat-
tery, turn on the tool. The Fuel Gauge will light up
for 2-3 seconds.
To signal the end of charge, 1 light on the fuel gauge
will flash for 2-3 seconds.
Camera LED
The camera LEDs can be adjusted to 4 levels
of brightness and turned off. Press the camera
LED brightness increase and decrease buttons to
change the level of brightness or turn it off.
Hooks
