MicW M216 User Manual
Page 3
vocals), this microphone lets you achieve outstanding spatial impressions in every
recording session.
Of course, you can use
Mic
W
E216-pair that feature two matched E216 microphones
as well. Each pair is guaranteed to the sensitivity match within 0.5 dB and phase
match within 5°.
The
Mic
W
M216 is a measurement microphone. Its frequency response meets
IEC61672 Class 2 requirements. Each M216 microphone is individually calibrated
and aged at high temperature for long-term stability and reliability. It is good choice
for use in measurements.
5. MICROPHONE INSTALLATION
First screw a clamp onto the stand before attaching the microphone itself.
6. AUDIO CONNECTION
To connect the E216 to your equipment, use a balanced XLR microphone cable with
the following pin assignment: Pin 1 = shielding, pin 2 = +, pin 3 = -. Since all
contact points of the E216 are gold-plated, your microphone cable should feature
gold-plated connectors, if possible.
7. Directional characteristic
The microphone features a capsule with Omni pickup pattern. Microphones with this
polar pattern are most sensitive to sound coming from in each angle of the
microphone.

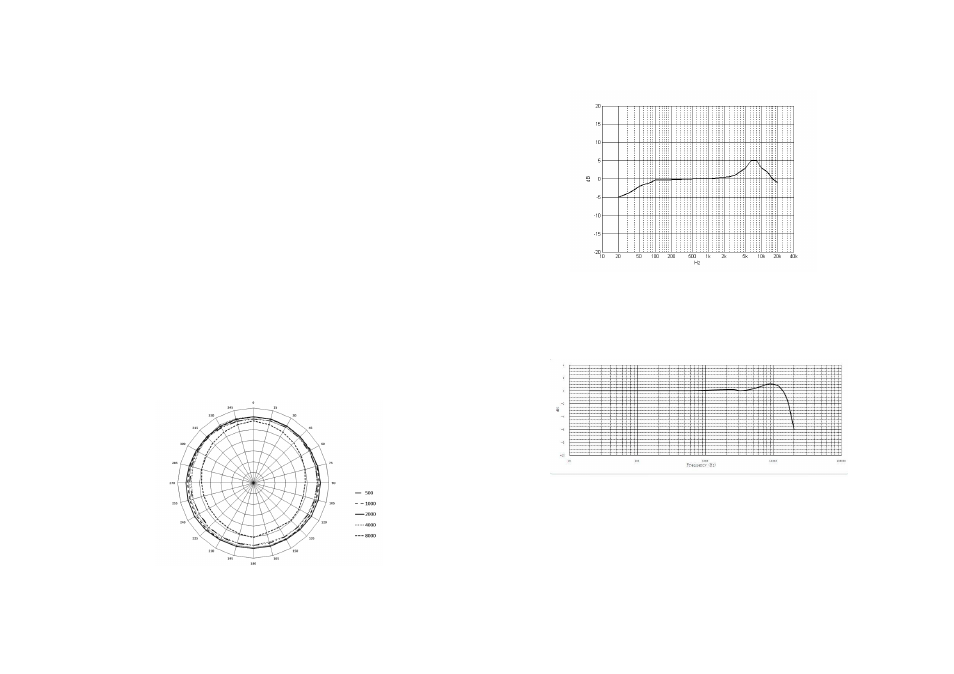

Polar pattern
Polar Pattern
E216/E216-Pair Frequency Response
M216 Frequency Response
