Docking Station for the TPS-6X Crestron TPS-6X-DS
Setup
Hardware Hookup
The only connection to the TPS-6X-DS is via the fixed cable, which is connected to
the TO PANEL port on the (included) TPS-6X-IMCW Interface Module.
When connecting the TPS-6X-DS, consider the following:
• Use Crestron ® power supplies for Crestron equipment.
• The included cable cannot be extended.

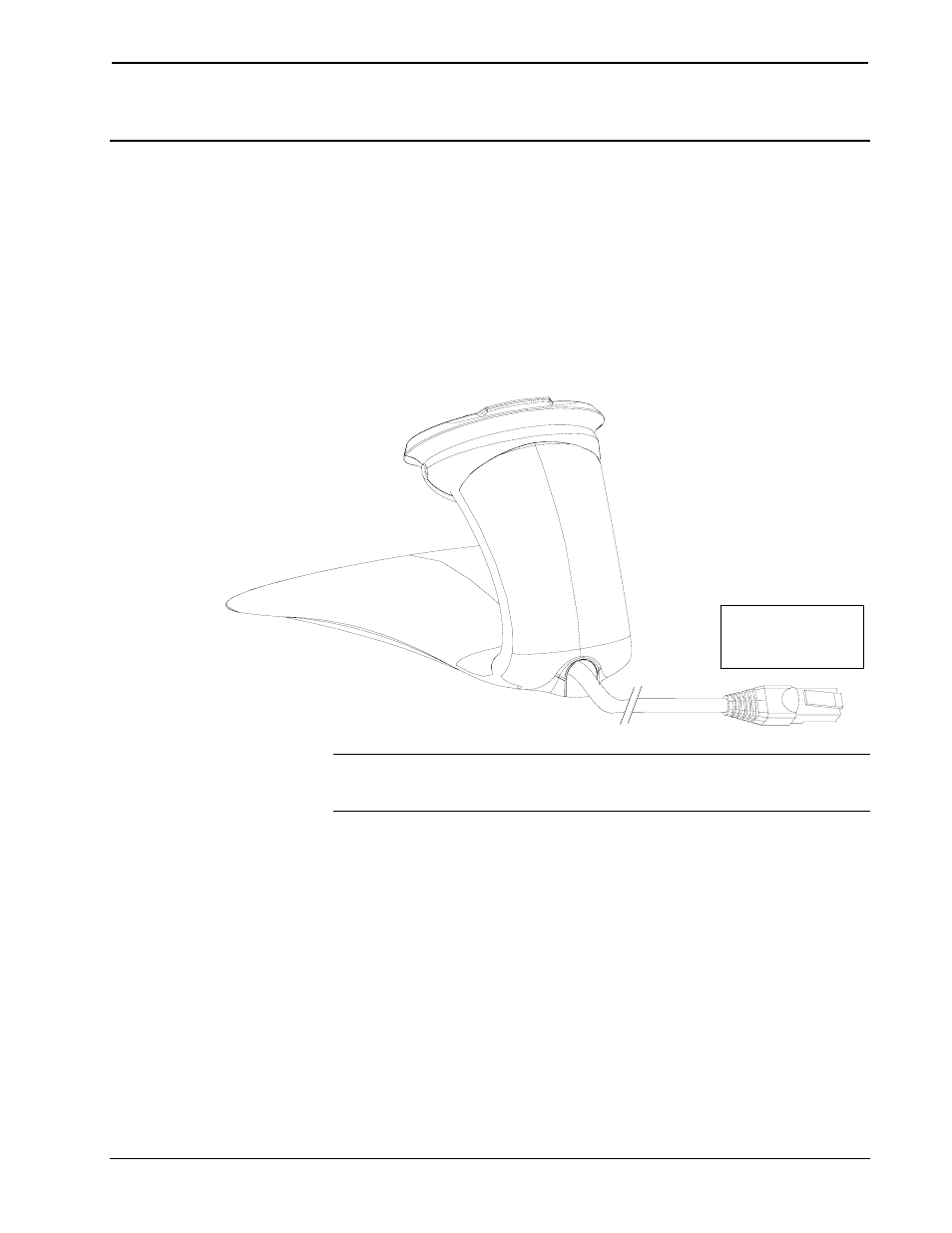

Hardware Connection for the TPS-6X-DS
TO TO PANEL
CONNECTOR ON
TPS-6X-IMCW
NOTE: The length of the connecting cable on the TPS-6X-DS is 9 feet (2.75
meters). The length of the cable has been shortened for illustrative purposes in the
diagram above.
Recommended Cleaning
The TPS-6X-DS comes in a soft microfiber bag to protect it during shipping. This
can be used to clean the docking station.
6 • Docking Station for the TPS-6X: TPS-6X-DS Operations Guide – DOC. 6576B
