1000Base-T to 1000Base-SX/LX Converter
25
Affixing Brackets
We have supplied 2 special panels that easily attaches to
the Converter. This allows for the secure placement of the
converter into the Chassis. It also seals off the front panel
and allows the Chassis to function correctly.
Step 1
Using a Phillips screwdriver, remove two screws from
the side panels on the converter.
Step 2

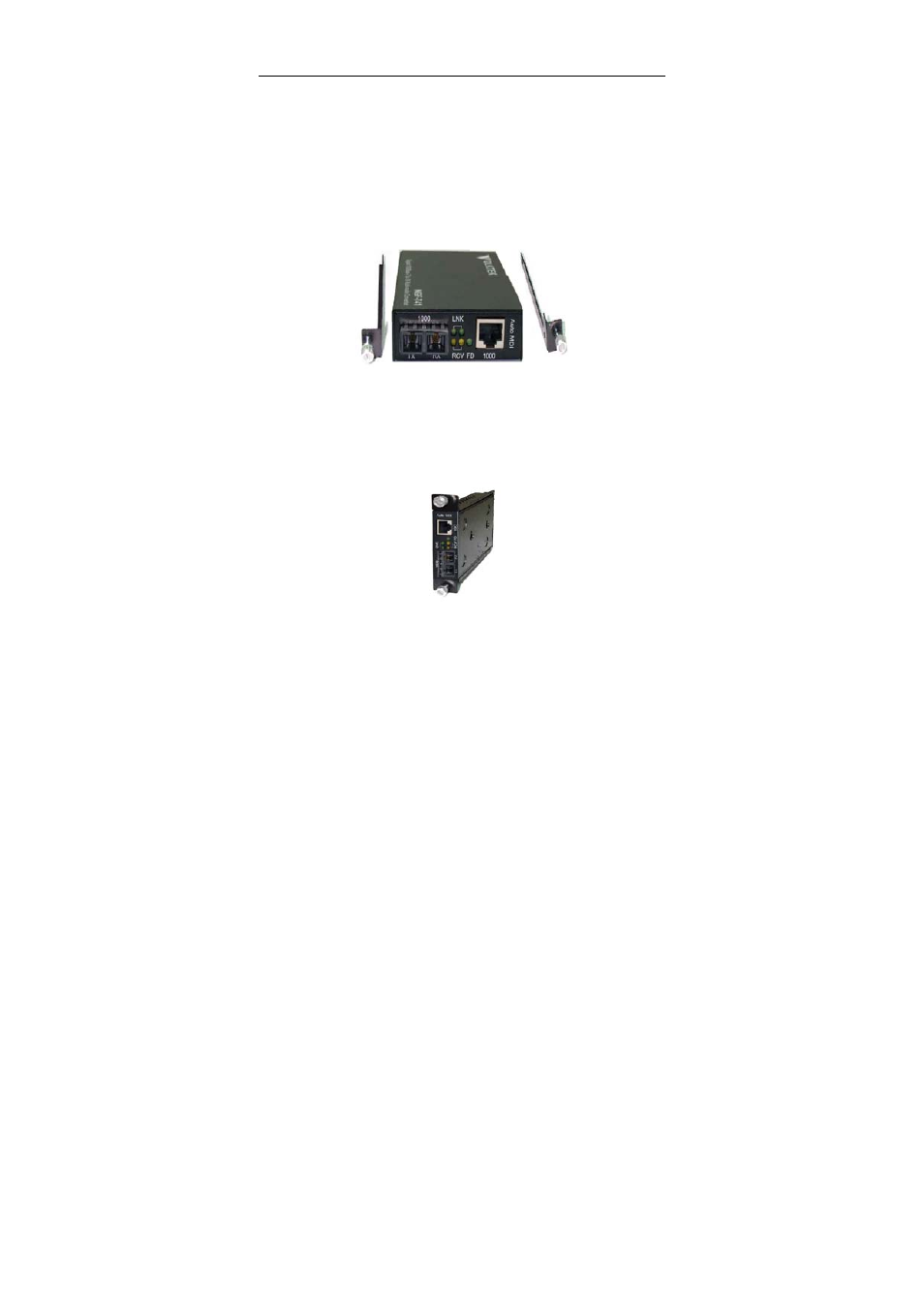

Place the converter and brackets on a flat horizontal
surface as illustrated above. Secure the brackets by
replacing the screws.
