6
≠
+
≠
+
+
≠
+
≠
≠
+
≠
+

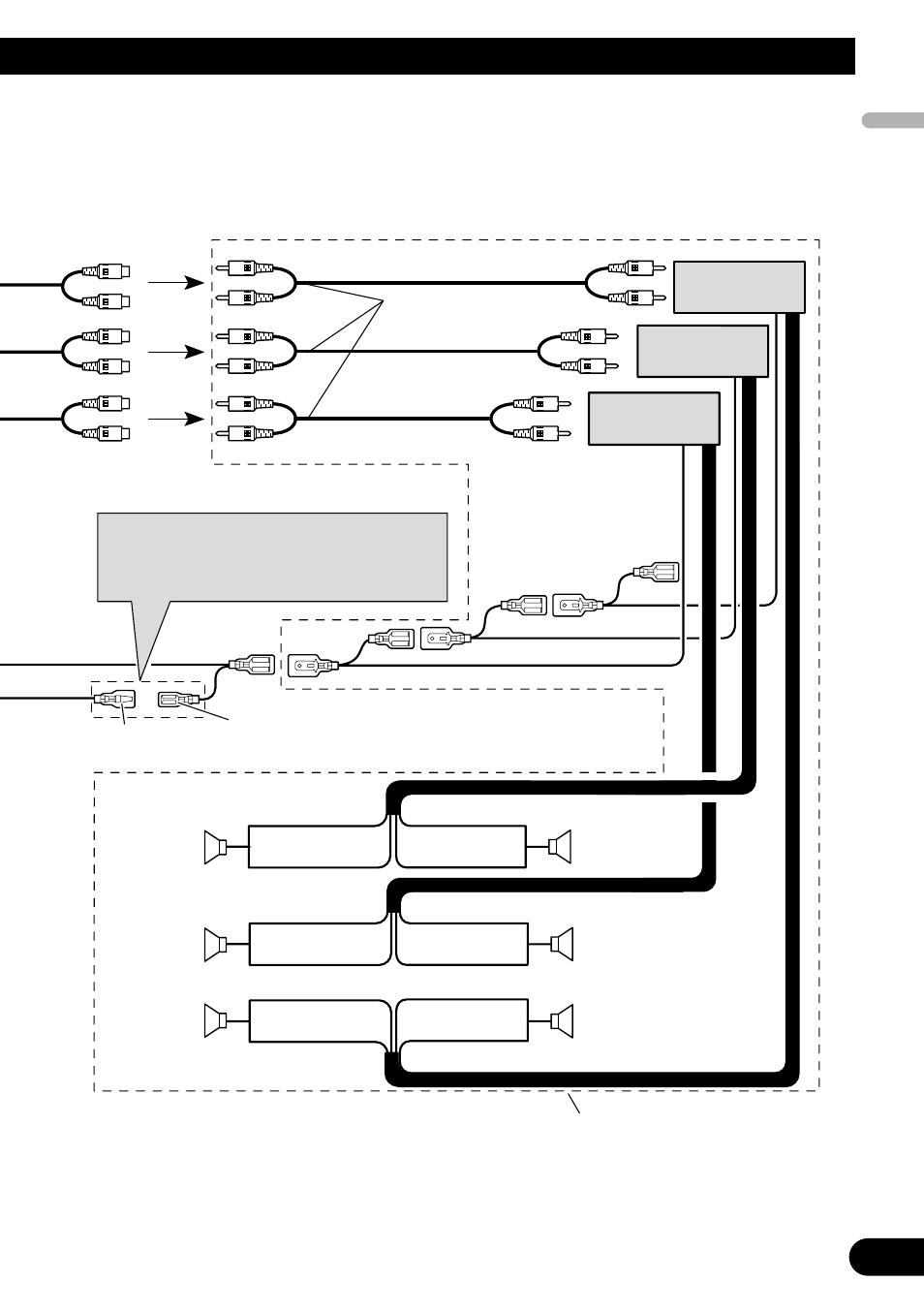

Perform these connections when using the
optional amplifier.
Blue/white (6*)
System remote control
Rear speaker
Subwoofer Subwoofer
Rear speaker
Front speaker Front speaker
Left Right
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 6* and 7*.
Connect with RCA cables
(sold separately)
Blue/white (7*)
Connect to auto-antenna relay control
terminal (max. 300 mA 12 V DC).
