5

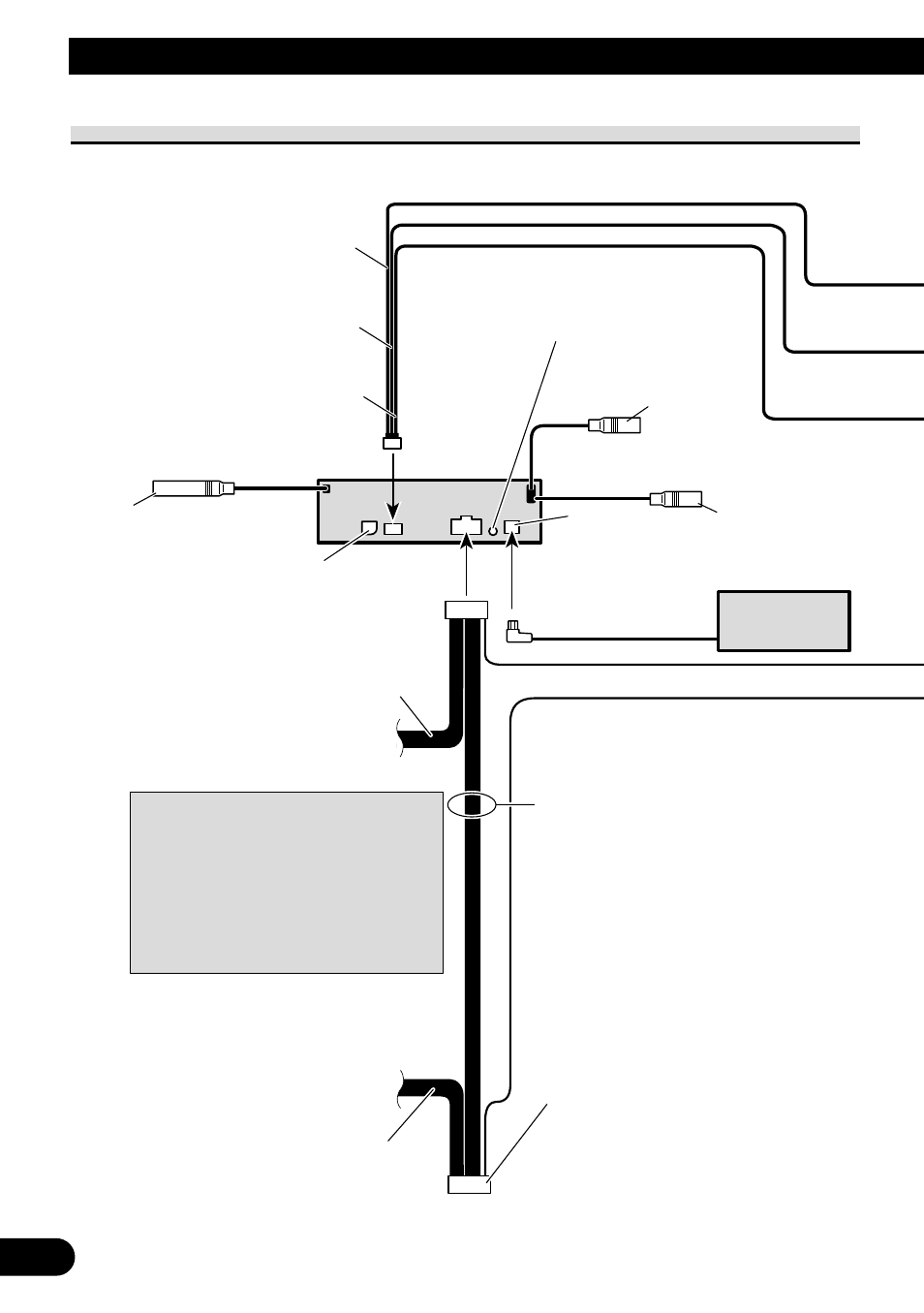

Connecting the Units
This product
IP-BUS input
(Blue)
Antenna jack
14 cm
18 cm
15 cm
Refer to page 3 to 4.
Rear output
(REAR OUTPUT)
Subwoofer output
(SUBWOOFER OUTPUT)
Front output
(FRONT OUTPUT)
15 cm
30 cm
15 cm
Wired remote input
Hard-wired remote control adaptor can
be connected (sold separately).
AUX jack
(Refer to page 3 to 4.)
Notes:
• Change the initial setting of this unit
(refer to the Operation Manual). The
subwoofer output of this unit is monaural.
• When using a subwoofer of 70 W (2
Ω) ,
be sure to connect with Violet and
Violet/black leads of this unit. Do not
connect anything with Green and
Green/black leads.
ISO connector
Note:
In some vehicles, the ISO connector may
be divided into two. In this case, be sure
to connect to both connectors.
Speaker leads
White
: Front left
+
White/black : Front left
≠
Gray : Front right
+
Gray/black : Front right
≠
Green : Rear left
+ or Subwoofer +
Green/black : Rear left
≠ or Subwoofer ≠
Violet : Rear right
+ or Subwoofer +
Violet/black : Rear right
≠ or Subwoofer ≠
Refer to page 3 to 4.
Refer to page 3 to 4.
Microphone input
(Refer to page 3 to 4.)
IP-BUS cable
Multi-CD player
(sold separately)
Connecting to separately sold power amp
