LED graph
//
Displays a value for some settings
like headphone gain, input gain, and others.
I/O gain
//
Input and output gain settings
Battery Status
//
Indicates whether the device is
being powered by the internal battery .
Jog Dial
//
Push and turn to change settings.
Status Indicator
//
Displays the current state of
the microphone:
Illuminated white
//
Standard mode
Not illuminated
//
Settings mode
Illuminated red
//
Overload has occurred.
Decrease the gain or change the pre-attenuation
setting.
Charging Port // Micro USB port; use a dedicated
USB charger as power supply for the DGT 650 on
mobile devices to charge the internal battery. It is not
possible to charge the microphone by connecting
the dedicated charging port to a PC’s USB port, but
there’s no need to do so, since the DGT 650 will then
be charged via the data connection.

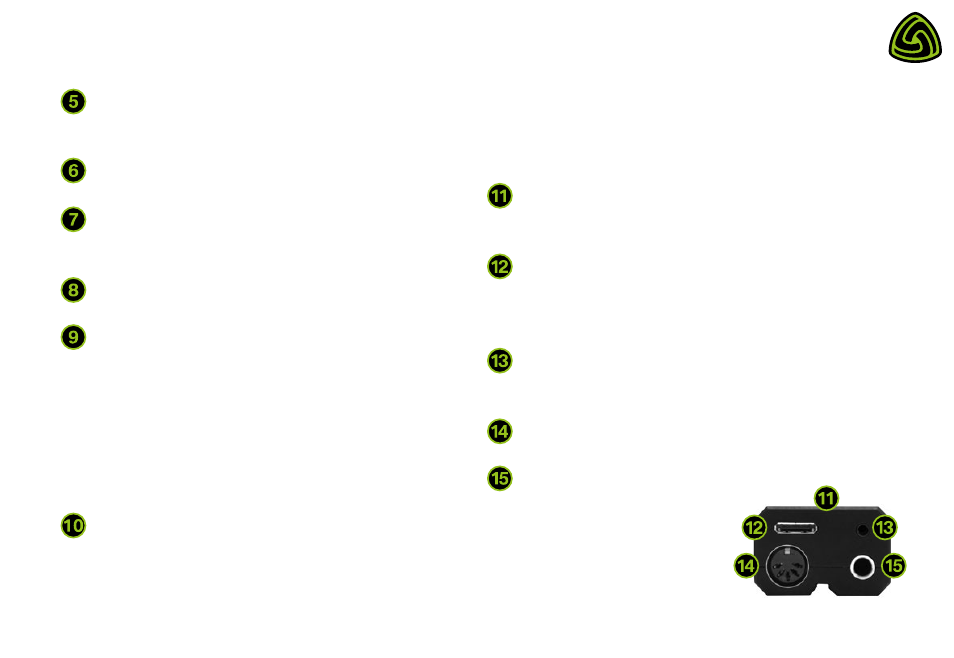

Breakout Box
//
Connects your DGT 650 with
everything else.
Data Connector
//
Connects your DGT 650 to
your device; if connected to a PC or Mac, the internal
battery will be charged.
headphone Jack
//
Plug in your headphones
here.
MIDI In
//
Plug in your MIDI device here.
Line In
//
Plug in your instrument here.
