STEPS FOR ASSEMBLING K-7S
(* REVERSE THE STEPS FOR DISMANTLING)

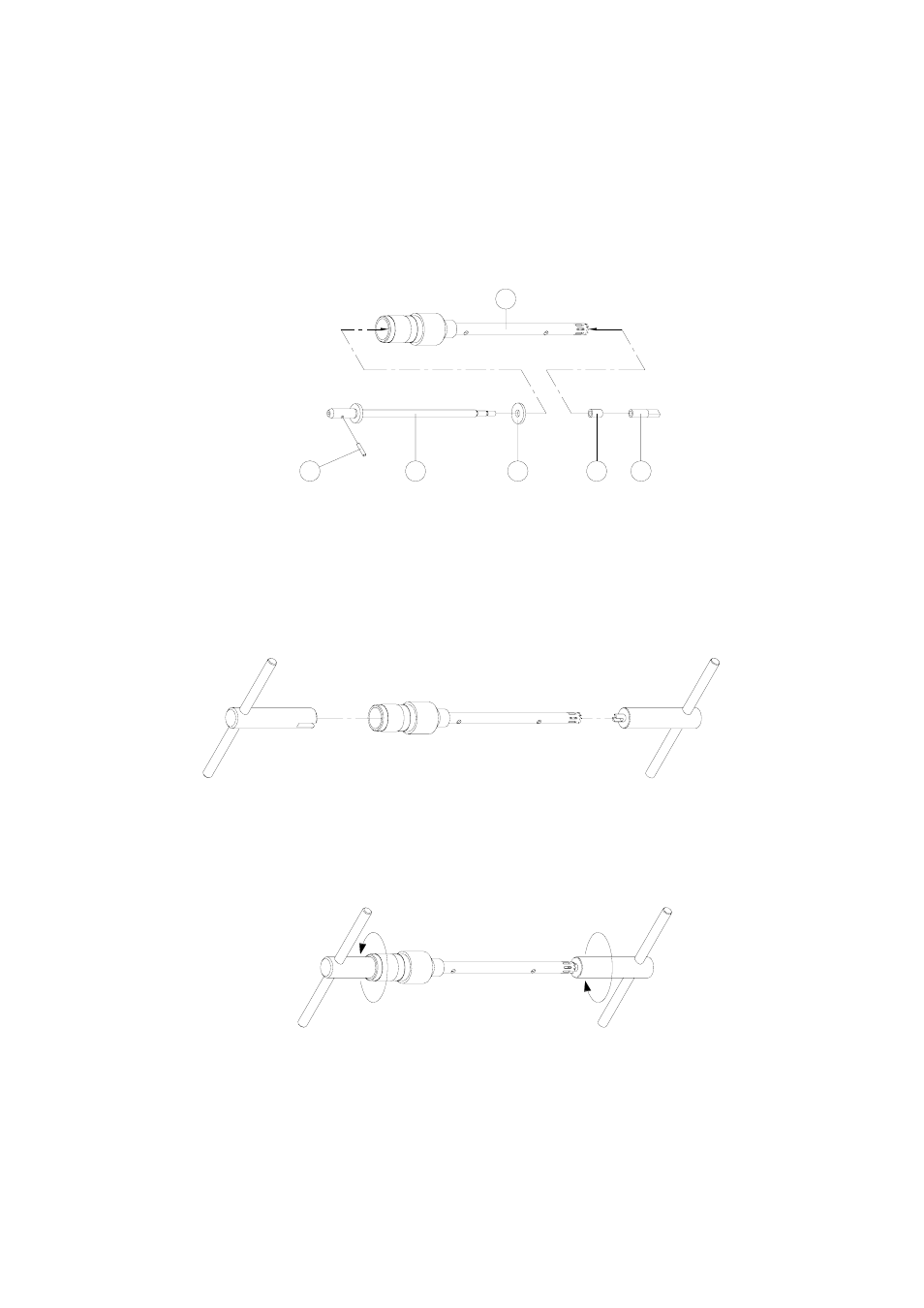

1. Follow the diagram to put all the parts orderly
into the connect pipe.
Each part name:
(1) Bolt (2) Inner shaft of connect pipe
(3) Pad (4) Connect pipe (5) Pipe
(6) Turning cutter
2. Follow the diagram to insert the tools into the
connect pipe.
3. Follow the diagram to turn the tools toward
their correct directions for fixing the whole
assembly. (For dismantling purpose, it should
follow the same steps but in reverse.)
2 6
4
1 3 5
VIII. ASSEMBLING & DISMANTLING K-7S, 12S, 20S
AND K-30
