8
STEPS FOR ASSEMBLING K-30
(* REVERSE THE STEPS FOR DISMANTLING)

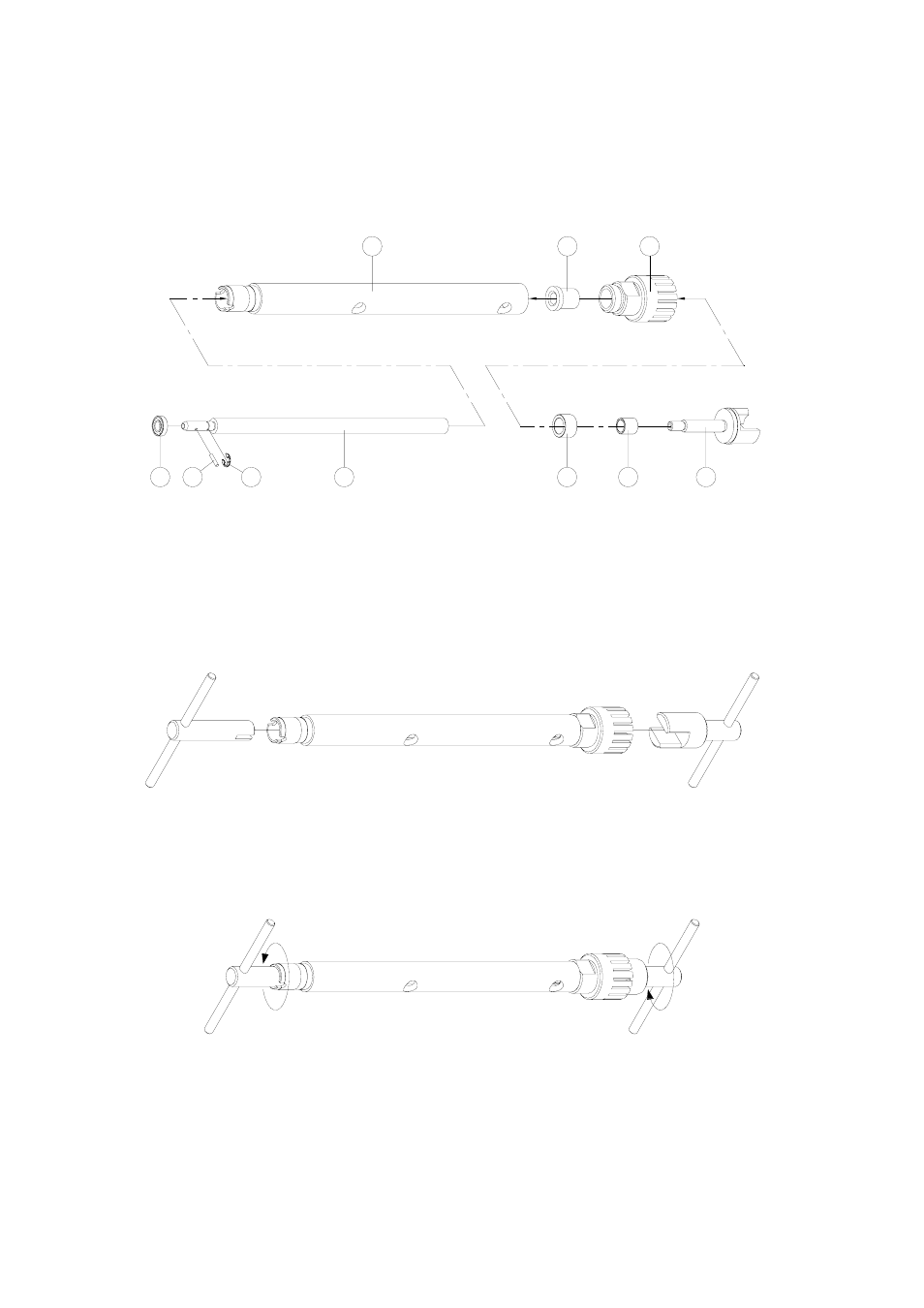

1. Follow the diagram to put all the parts orderly
into the connect pipe.
Each part name:
(1) Bearing (2) E-typed washer (3) Bolt
(4) Inner shaft of connect pipe (5) Connect pipe
(6) Pipe (7) Fixed cutter (8) Inner pipe
(9) Outer pipe (10) Turning cutter
2. Follow the diagram to insert the tools into the
connect pipe.
3. Follow the diagram to turn the tools toward their
correct directions for fixing the whole assembly.
(For dismantling purpose, it should follow the same
steps but in reverse.)
1 3 2 4 8 9 10
5 6 7
