Kuzma RD ULTRASONIC CLEANER KIT 150217 - Manual (Page 6)

Page | 6

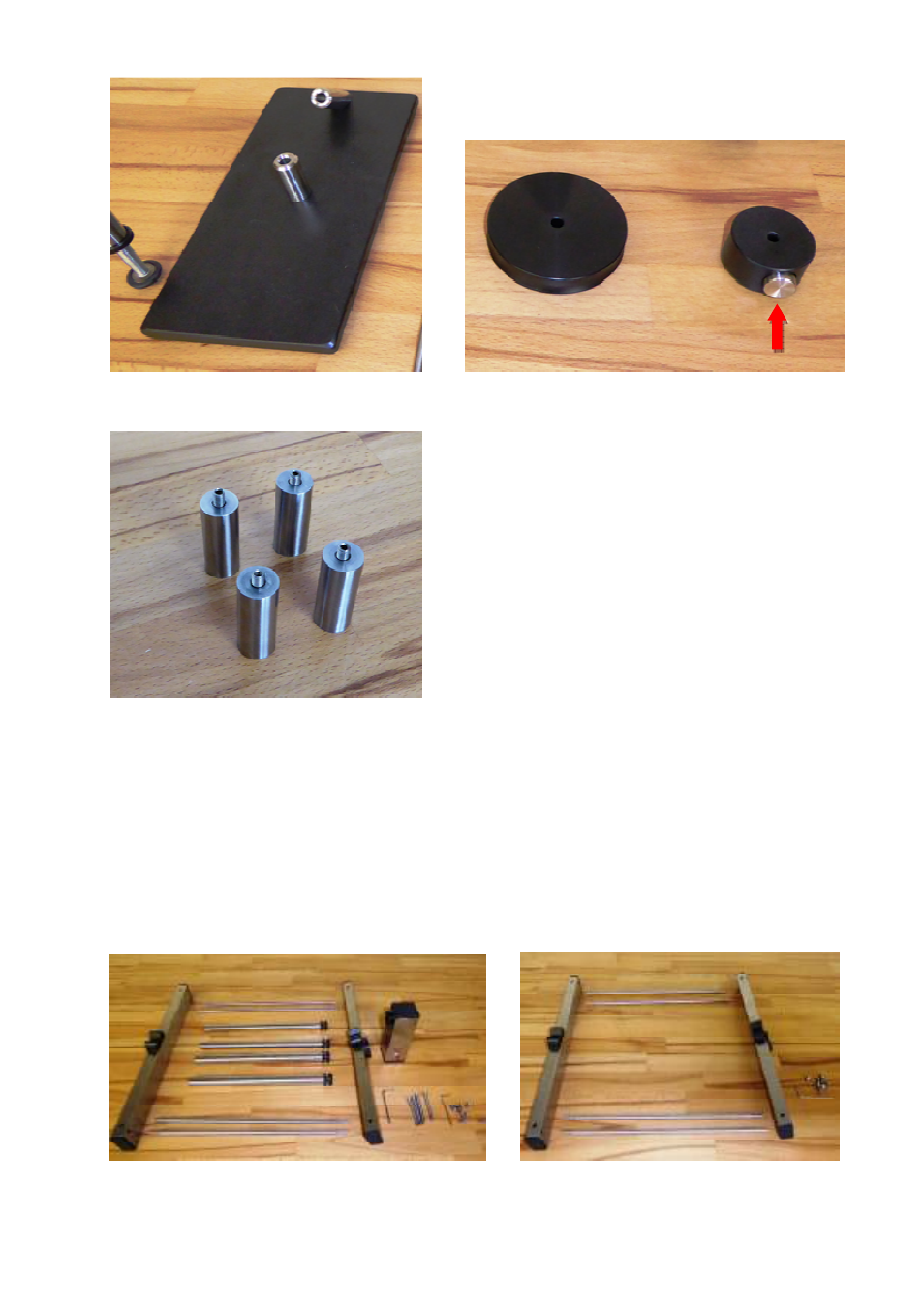

Fig. 1.2. Stand Fig. 1.3. Spacer, clamp
Fig. 1.4. Extension legs
Frame assembly: Fig. 2.0.
The frame consists of two square stainless steel tubes fitted together with 4 thin stainless steel rods and
screws. Fig. 2.0- 2.8.
Fit rods in the larger holes on one side of the square tube and fix screws in the opposite side in the smaller
holes with allen key 2,5 mm.
Fig. 2.0. Parts for frame assembly Fig. 2.1. Frame parts: 2 square tubes with 4 rods
