6

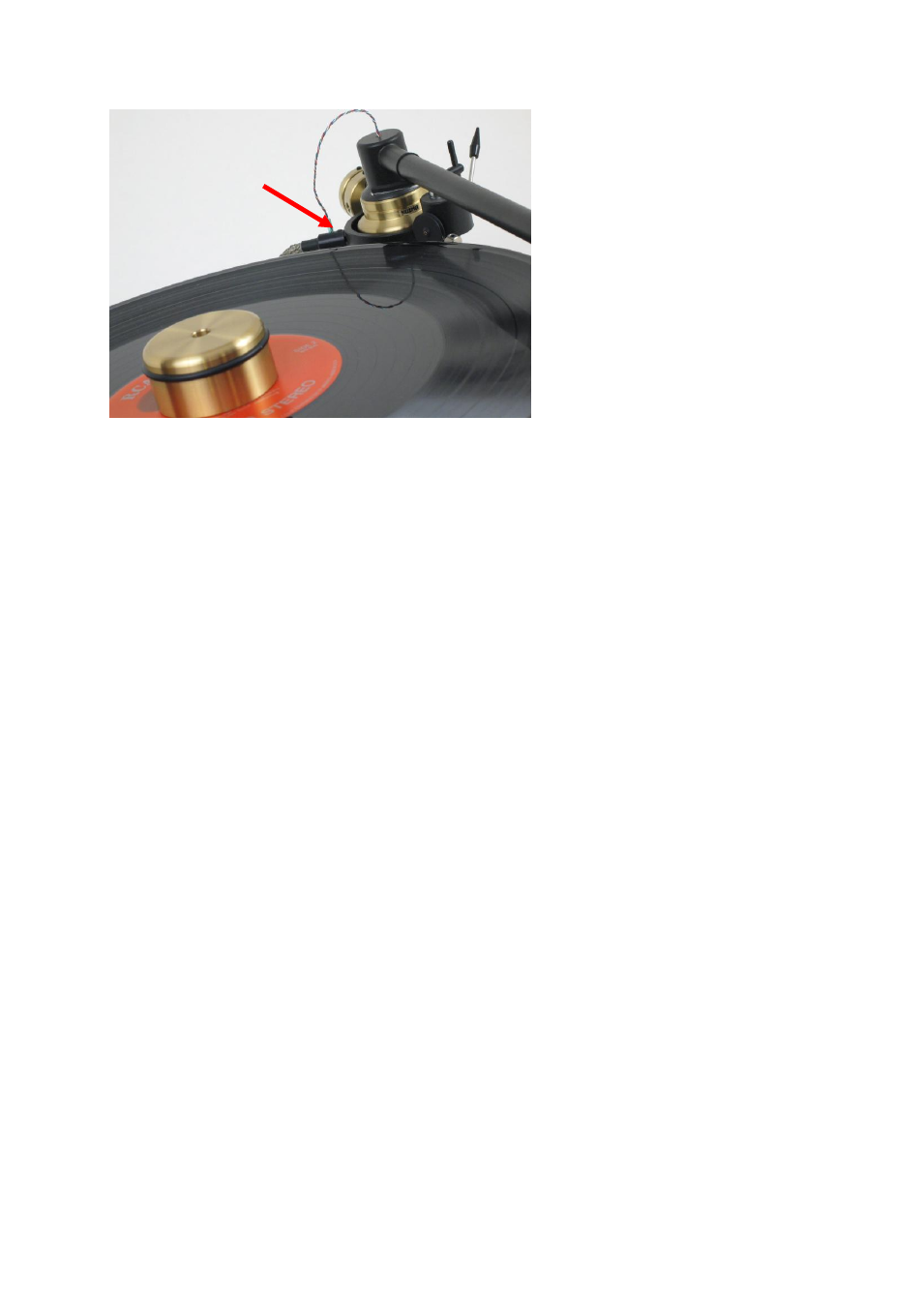

Fig. 5. See cable fixing
Cartridge mounting:
Locate the hex screws for fixing the cartridge, or use screws supplied with the cartridge. Fix
the cartridge under the headshell in such a position that the tip of the diamond is at the
furthest point of the headshell.
With tweezers or other appropriate tool, (if using pliers be aware that strong force can break
the wires under the insulation material) connect pins according colours:
Red right +
Green right -
White left +
Blue left -
Tracking force:
Adjust both thicker counterweights so that the cartridge is balanced while keeping the
thinner counterweight as far away from the bearing as possible. If the cartridge is tilted
(azimuth) when viewed from the front, rotate the thicker counterweight. For some lighter
cartridges one counterweight will be adequate to obtain the correct tracking force.
To adjust tracking force use a gauge and move the counterweight closer to the bearing to
obtain the chosen force. Consult your dealer.
Cartridge set up:
Place the needle on the record and observe azimuth and height of the tonearm (VTA).
Height (VTA):
Adjust the height of the tonearm by raising or lowering the bearing base so that the arm tube
is parallel to the record.
