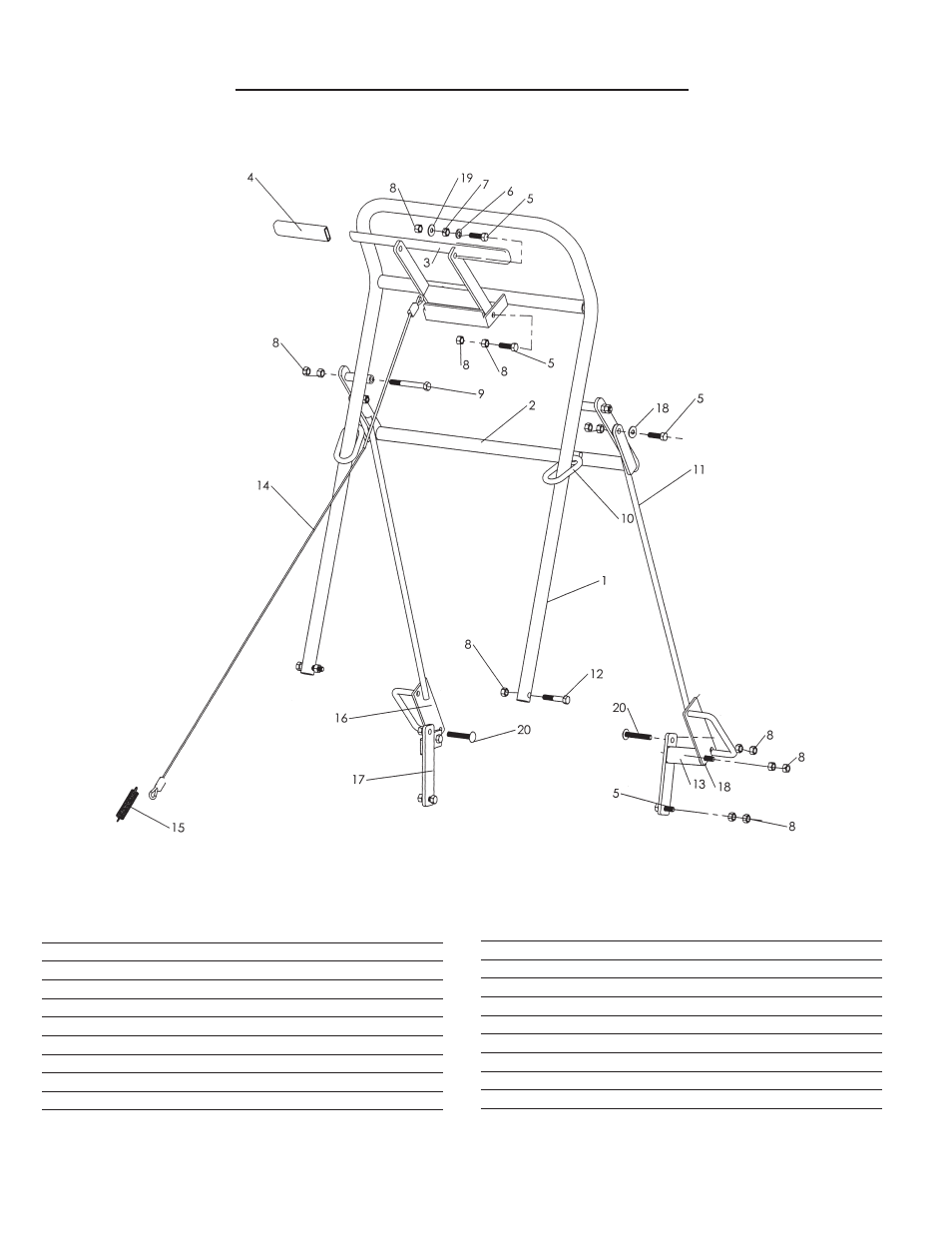

Parts Handle and Control
QTY/PER
KEY
PART NO.
SHEET
DESCRIPTION
1
400128
1
MAIN HANDLE
2
400017
1
LOWERING HANDLE
3
400180
1
CONTROL HANDLE
4
100007
2
RUBBER GRIP
5
500134
9
3/8" x 1-1/4" BOLT
6
500130
1
3/8" LOCK WASHER
7
500129
1
3/8" NUT
8
500041
27
3/8" LOCK NUT
9
500178
2
3/8" x 3-1/4" BOLT
10
100251
2
HANDLE LOCK RING
CA-18 COMPACT AERATOR
QTY/PER
KEY
PART NO.
SHEET
DESCRIPTION
11
400130
1
ARM, L.H. LINKAGE
12
500091
4
3/8" x 2" BOLT
13
400133
1
LH LINKAGE PIVOT
14
200035
1
CLUTCH CABLE
15
100034
1
SPRING
16
400129
1
ARM, R.H. LINKAGE
17
400132
1
RH LINKAGE PIVOT
18
500042
4
3/8" FLAT WASHER
19
500083
4
5/16" FLAT WASHER
20
500204
2
3/8" x 2-1/4" CARRIAGE BOLT
