KERO Puffin 12 - Manual (Page 2)

– 2 –
Cross Ribs
Boat Skin
Stem Stem
Keel
Gunwales
Deck
Seat
Forward Deck Support w/latch clip
Stern Deck Support w/clip at end
Latch Clip
(A) (B1) (B2)
(C)
(C)
(D) (D)
Cross Ribs:
Stem
(inside boat skin)
Strap
Keel
Inflated Air Tube Seat
Forward Deck Support
Stern Deck Support
(A) (B1) (B2) (C) (C) (D) (D)
Gunwale
(
in channel)
Gunwale
(
in channel)

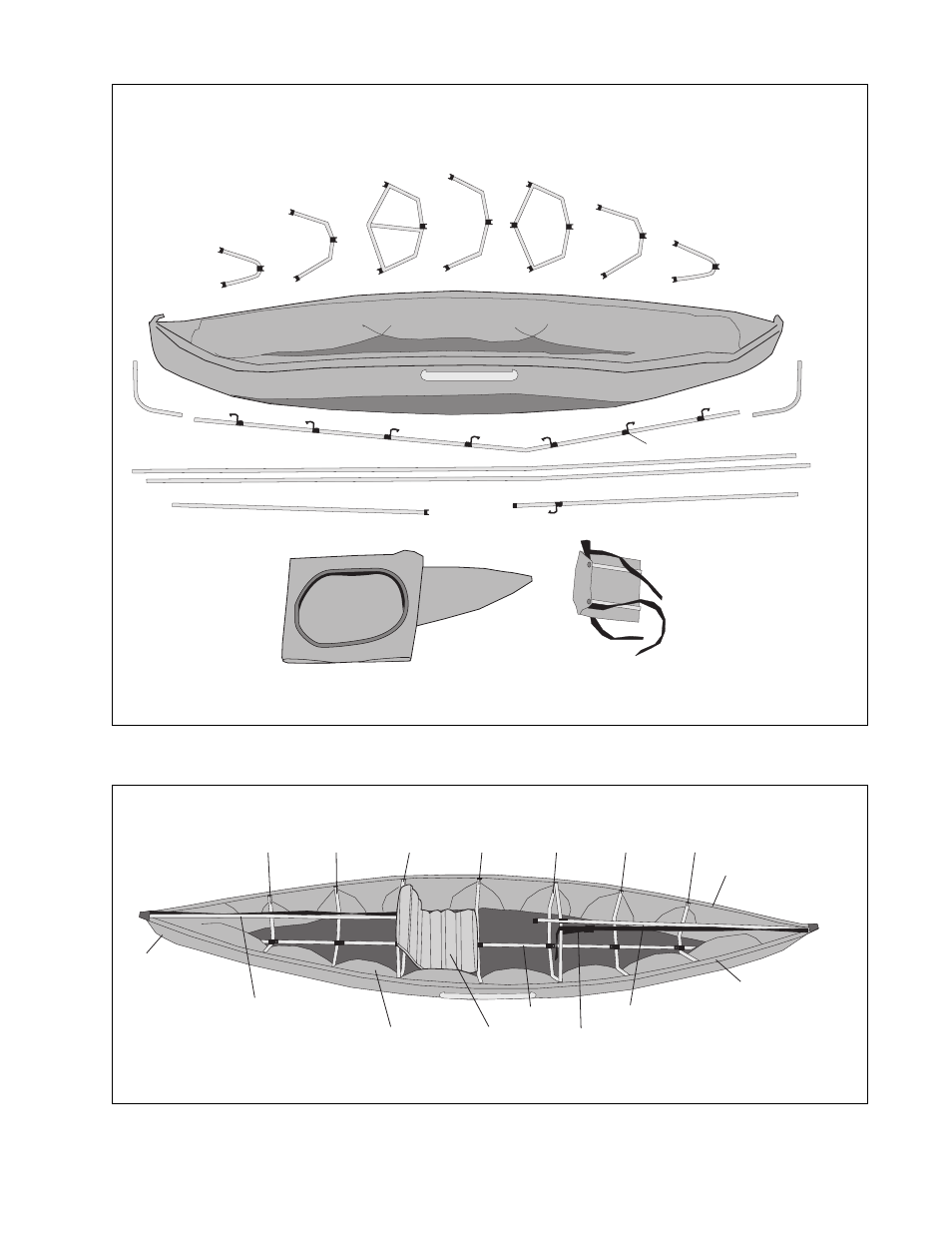

Figure 1, Parts
Figure 2, Assembled (deck removed)
