OPERATING STOVE WITH BURNER SYSTEM

Operating Optional GWMT1 Wall Mounted Thermostat

INSPECTING BURNERS

Pilot Assembly
Burner Flame Pattern

OPERATING STOVE WITH
BURNER SYSTEM

Continued

OPERATING OPTIONAL GWMT1

WALL MOUNTED THERMOSTAT

Light the burner system as instructed in Lighting Instructions
on pages 23 and 24. Set wall thermostat to desired temperature.

This thermostat has been electronically calibrated at the factory
and requires no adjustment or leveling.

Upon installation, the thermostat must be allowed to stabilize at
room temperature for a minimum of 30 minutes for proper
operation.

To turn the burner system off, adjust thermostat to the lowest
setting and turn the gas control knob back to PILOT. The pilot
will remain lit.

IMPORTANT:

To turn the pilot off, turn the gas control knob

on the burner system to the OFF position.

WARNING: Do not connect the thermostat to a

power source. Electrical shock and/or a fire hazard
will occur.

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT ASSEMBLY

The pilot assembly is factory preset for the proper flame height.
Alterations may have occurred during shipping and handling. Call
a qualified service person to readjust the pilot if necessary.

The height of the thermopile must be 3/8" to 1/2" above the pilot
flame as shown in Figure 58. The thermocouple must be at a height
of about 1/8" above the pilot flame. The flame from the pilot burner
must extend beyond both the thermocouple and thermopile.

If your pilot assembly does not meet these requirements:

• turn burner system off (see To Turn Off Gas to Appliance, page 24)

• see Troubleshooting, pages 27 through 29

BURNER FLAME PATTERN

Burner flames will be steady; not lifting or floating. Flame patterns
will be different from unit to unit and will vary depending on
installation type and weather conditions.

If the vent configuration is installed incorrectly, the flames will lift
or "ghost". This can be dangerous. Inspect the flames after installa-
tion to ensure proper installation and performance.

Figure 59 shows a typical flame pattern. If burner flame pattern
differs from that described:

• turn burner system off (see To Turn Off Gas to Appliance, page 24)

• see Troubleshooting, pages 27 through 29

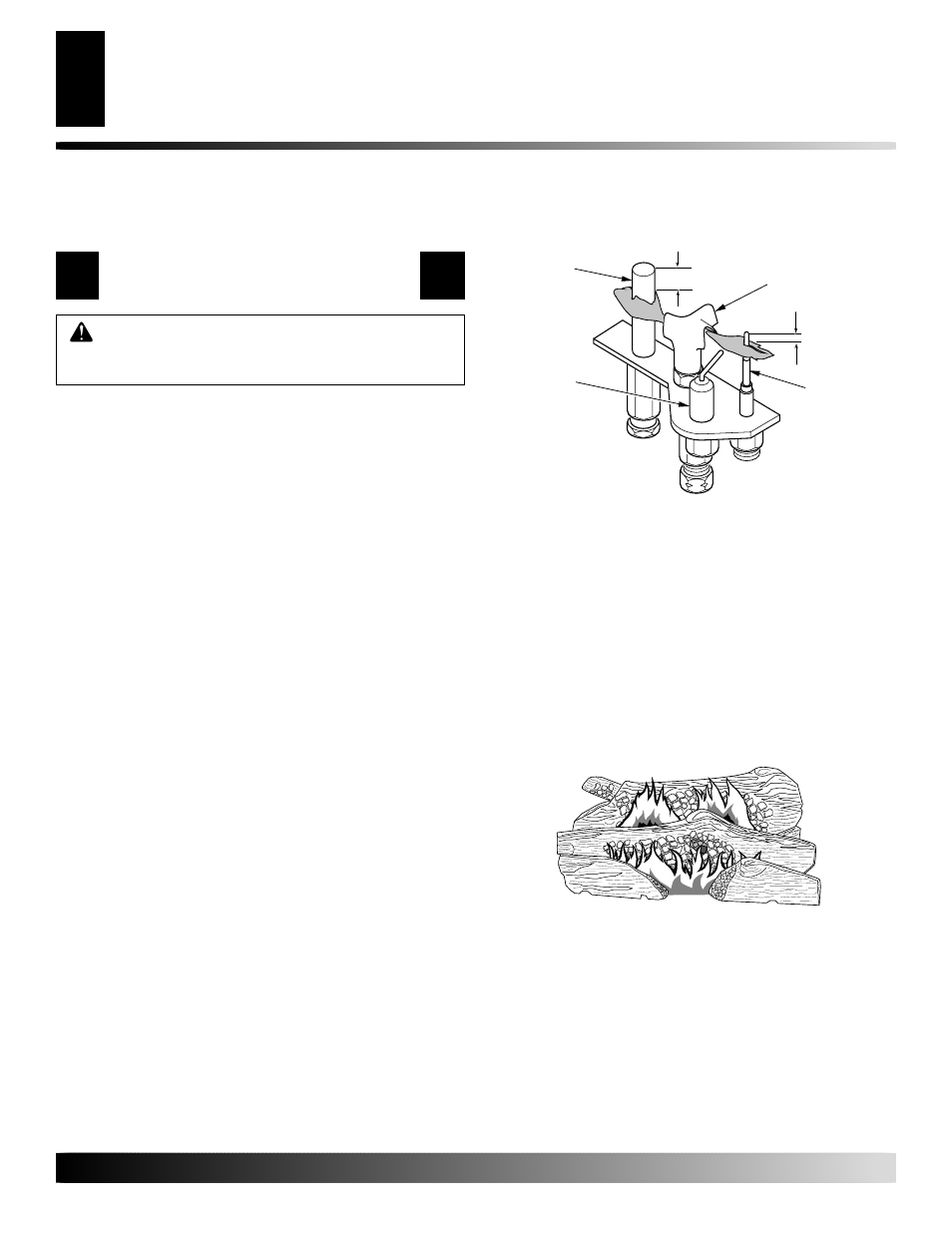

Figure 58 - Pilot Assembly

Figure 59 - Typical Flame Pattern

Thermopile

Pilot Burner

Thermocouple

Piezo Ignitor

1/8"

3/8" to 1/2"
