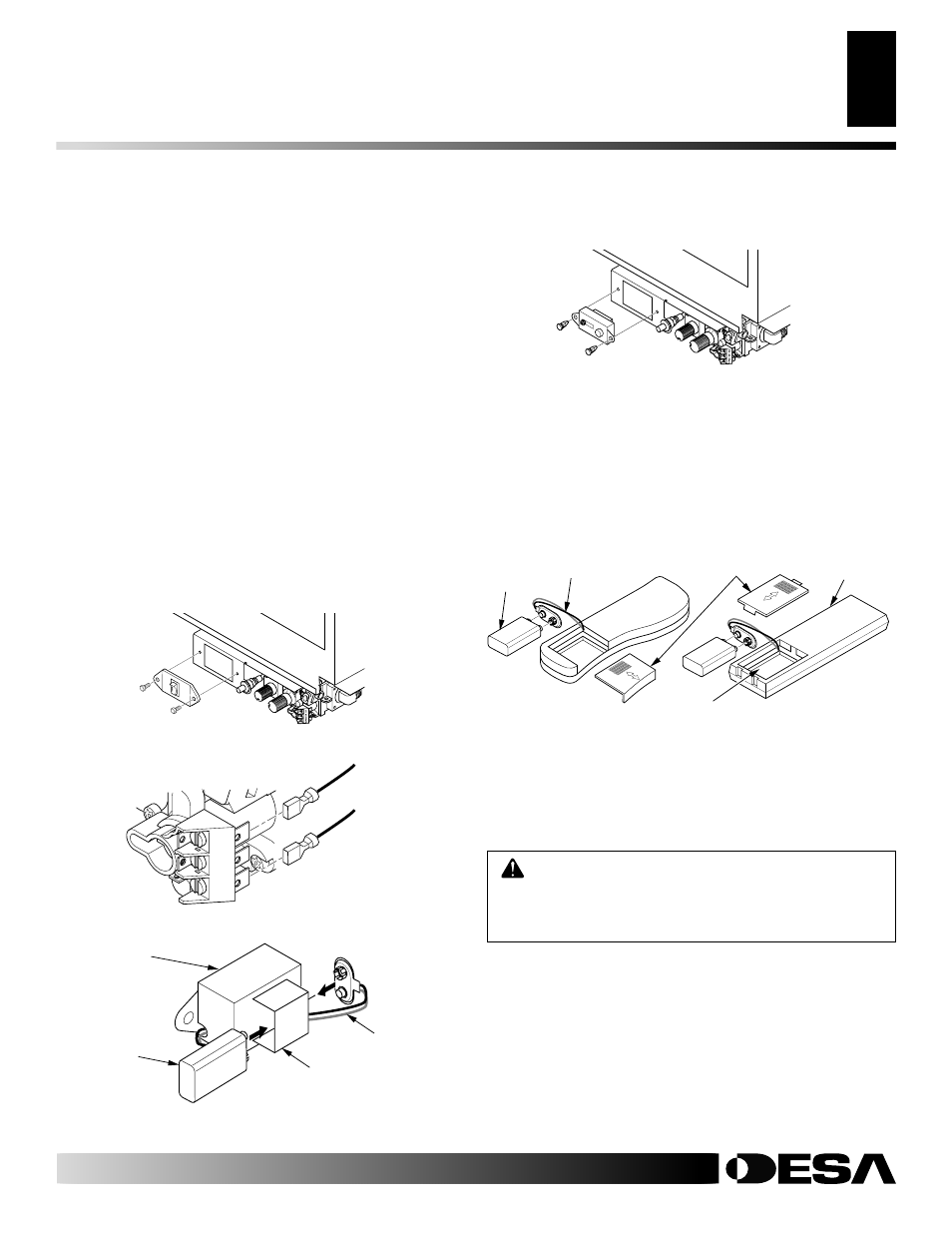

INSTALLING OPTIONAL WIRELESS HAND-
HELD REMOTE CONTROL ACCESSORIES -
CGHRC AND CGHRCTA SERIES
Installing Remote Receiver
1.
Open bottom door on stove body and locate the switch plate
on the left of the valve bracket.
2.
Unscrew switch plate (see Figure 43).
3.
Disconnect wires from THTP and TH on control valve that
lead to the switch (see Figure 44). Discard switch plate, screws,
and nuts.
4.
Install battery into receiver battery clip and connect to termi-
nals (see Figure 45).
5.
Place receiver into valve bracket and align holes (see Figure 46).
6.
Use push-in fasteners included with receiver to secure to
bracket.
7.
Connect the wires from the receiver to the valve at TH and
THTP (see Figure 44).
STOVE AND DIRECT-VENT
BURNER SYSTEM INSTALLATION
Continued
Installing 9-Volt Battery in Hand-Held Remote
Control Unit
1.
Remove battery cover on back of remote control unit
2.
Attach terminal wires to a 9-volt battery (not included). Place
battery into the battery housing.
3.
Replace battery cover onto remote control unit.
STOVE AND DIRECT-VENT BURNER SYSTEM INSTALLATION
Installing Optional Wireless Hand-held Remote Control Accessories - CGHRC and CGHRCTA Series
Removing/Replacing Glass Door
Figure 43 - Removing Switch Plate
Figure 44 - Control Valve Terminals
Figure 45 - Installing Battery in Receiver
9-Volt
Battery
Receiver
Battery
Clip
Terminal
Wires
Figure 46 - Installing Remote Receiver
Terminal
Wires
Battery Cover
9-Volt
Battery
Remote
Control
Unit
Battery Housing
Figure 47 - Installing Battery in Hand-Held Remote Control Unit
REMOVING/REPLACING GLASS DOOR
You must remove glass door to install logs, lava rock, and ember
material. To remove glass door, you must first remove the front
panel on stove body.
CAUTION: Do not operate this burner system with
a broken glass door panel or without the glass door
panel securely in place. For replacement part infor-
mation see
Replacement Parts, page 31.
1.
Remove 2 bolts from bottom of stove and one from the top of
stove to remove front panel (see Figure 48, page 22).
2.
Remove the screws from the 2 tabs at the top of the glass door
while holding door securely keeping it from falling forward.
3.
Grasp door by both sides and ease it upward off of the lower
bracket (see Figure 49, page 22).
4.
To replace glass door, follow the above instructions in reverse.
TPTH
TP
TH
To Control
Switch or
Optional
Accessory
