OPERATION

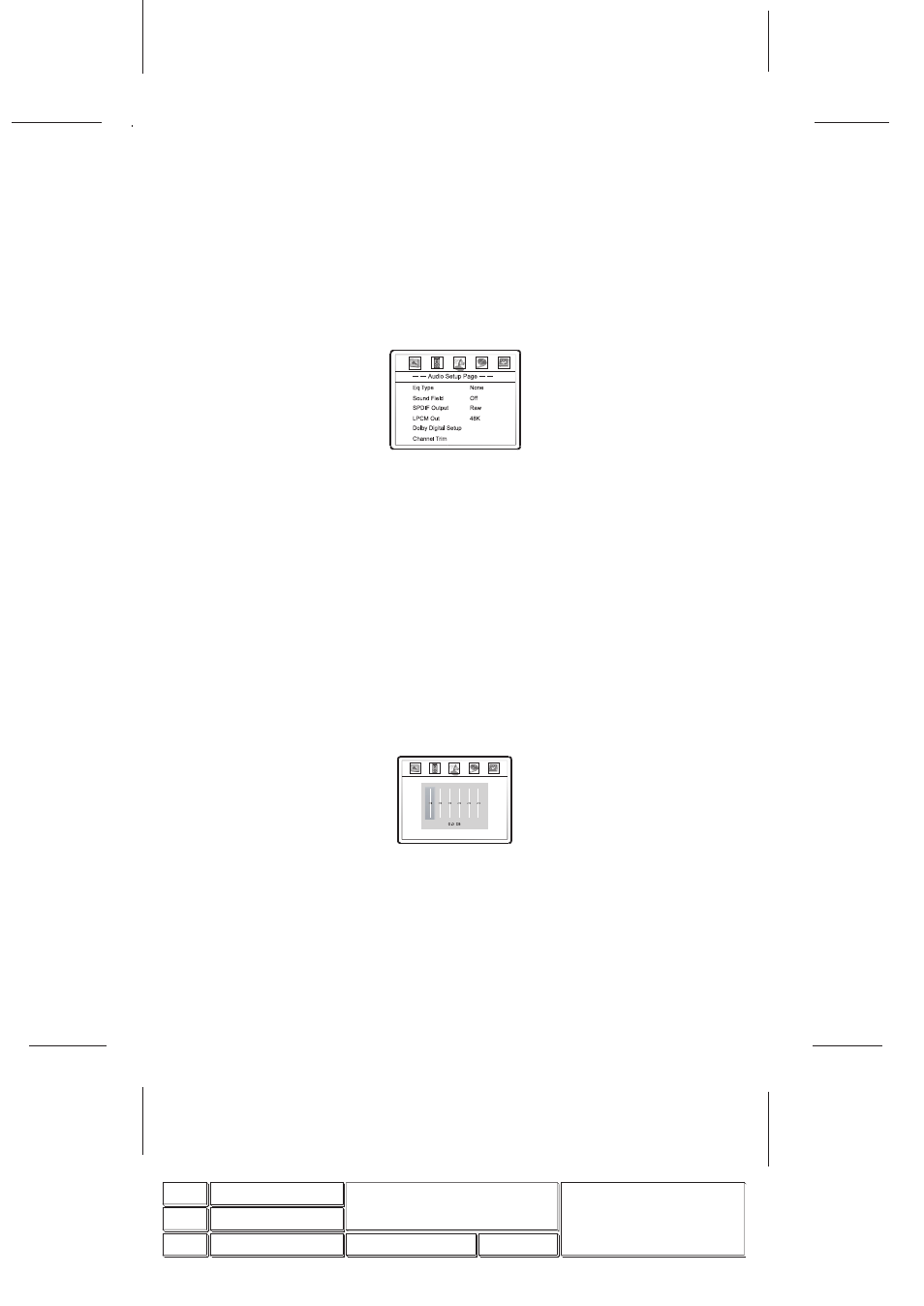

Audio Setup

Select "Audio Setup" item in the setup menu and then press SELECT to enter the AudioSetup Page

To select the "Audio Set-up" menu then press the SETUP button.

EQ Type

Allows you to set the EQ effect on the audio output

Sound Field

Allows you to set the Sound Field Effect on the audio output

SPDIF Output

To set the bitstream type of the digital output, t

To set the output frequency of the LPCM digital audio data to suit different audio systems

Dolby Digita Setup

To set the internaldolby digital decoder settings.

Dymamic Compression

To set the linear comppression ratio default to off

Channel Trim

This alllows you adjust the levels that are outputted to each speaker giving you the total surround effect, please select the desired

speaker and then adjust using the UP/DOWN navigation keys and press select to confrm.

o use the built in 5.1 decoder the SPDIF output should be set to RAW to enable the

5.1 output to be selected.
