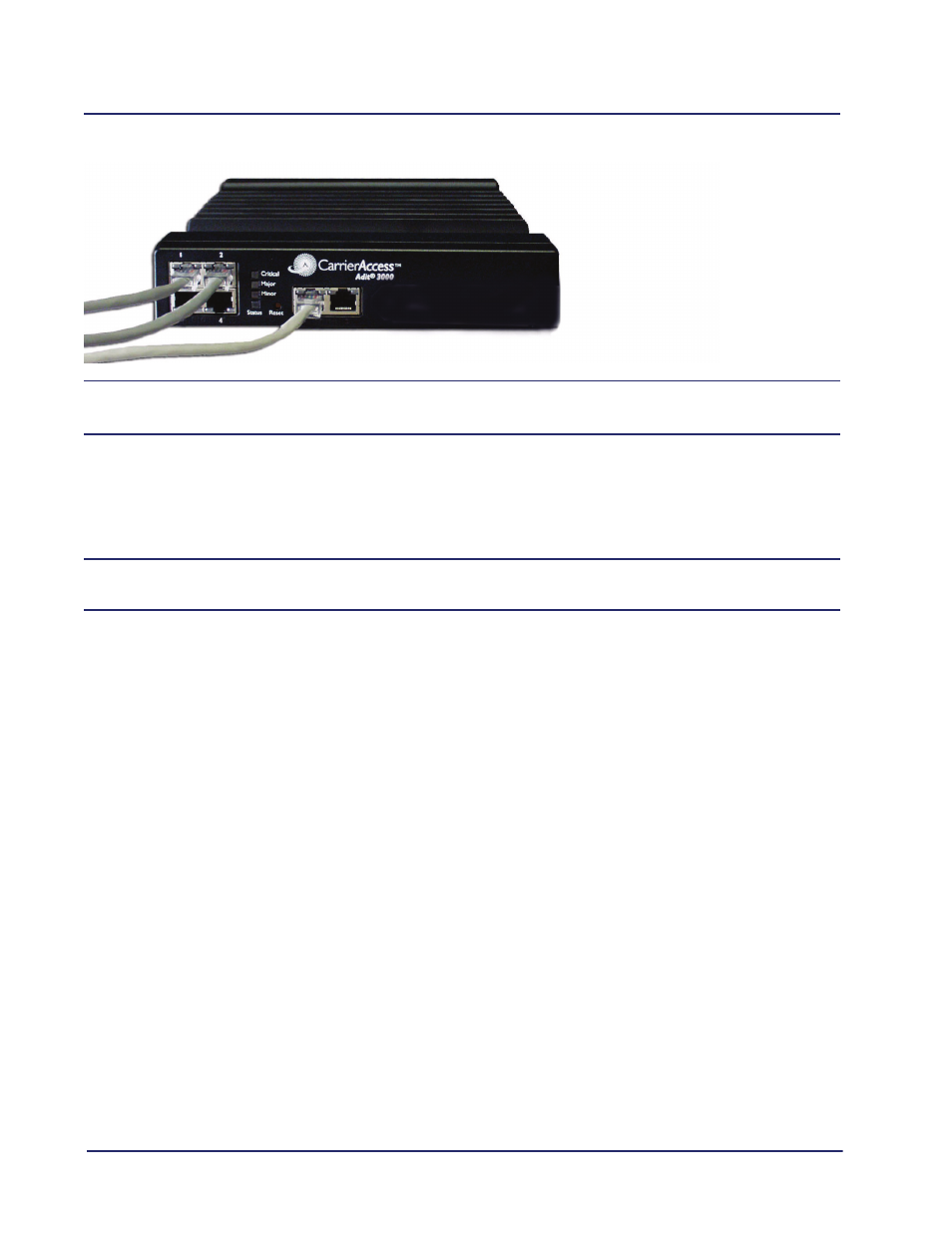

Adit 3200 - Release 1.6
Quick Start
Installation
Compliant Installation
NOTE:
It is important the DS1/E1 Network Interface Cables are secured separately from the
power and Signal Cables.
1. Inspect the unit.
2. Mount the unit, see Wall Mounting on page 7, or Rack Mounting (Optional Feature) on page 8
for detailed instructions.
3. Ground the unit. See Grounding the Unit on page 12.
WARNING!
T
HE
SEPARATE
PROTECTIVE
EARTHING
TERMINAL
PROVIDED
ON
THIS
PRODUCT
SHALL
BE
PERMANENTLY
CONNECTED
TO
EARTH
. S
EE
4. Connect DS1 (T1) and Ethernet connectors as needed.
5. Connect RS-232 connector and open Terminal Emulator software on your PC. Note: With this
connected first, the boot process can be monitored.
6. Connect Power to the unit.
7. Monitor the boot process on your PC, when complete the status light should be green.
8. For any software enabled features, enter the key command. See the key command in the Adit
3000 CLI Reference Manual, for detailed information.
9. To verify use the show version command.
10. Now you can proceed to provisioning the unit. See Basic Configuration on page 22 for
information.
