APPENDIX

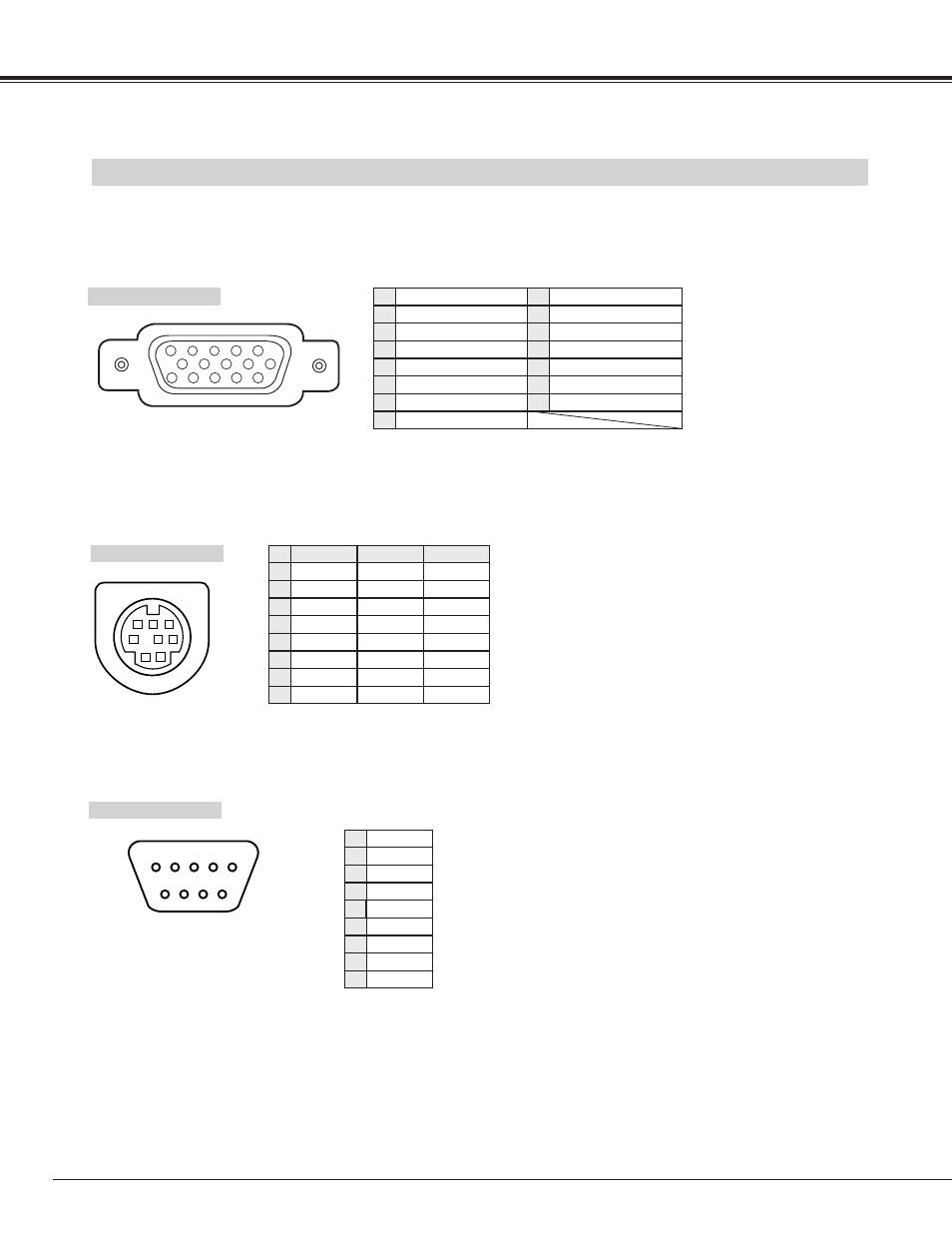

CONFIGURATIONS OF TERMINALS
Terminal : Mini DIN 8-PIN
Connect control port (PS/2, Serial or ADB port) on your computer to this terminal with Control Cable (supplied).
1 2
3 4 5
8 7 6
Pin Configuration
CONTROL PORT CONNECTOR
-----
CLK
DATA
GND
-----
-----
GND
-----
R X D
-----
-----
GND
RTS
T X D
GND
GND
-----
ADB
-----
GND
-----
-----
-----
GND
PS/2 Serial ADB
1
2
3
4
5
6
7
8
-----
RxD
TxD
-----
Ground
-----
-----
-----
1
2
3
4
5
6
7
8
9 -----
1 2 3 4 5
6 7 8 9
Connect serial port output terminal of computer to this terminal with Serial Cable (not supplied).
Pin Configuration
SERIAL PORT IN/OUT TERMINAL
HDB 15-PIN TERMINAL (ANALOG)
Connect display output terminal of computer to this terminal with VGA Cable (supplied).
● When connecting Macintosh computer, use MAC/VGA Adapter (supplied).
5 1 2 3 4
10 9 6 7 8
15 14 13 11 12
Red Input
Ground (Horiz.sync.)
Green Input
Sense 2
Blue Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
+5V Power
Horiz. sync.
Ground (Vert.sync.)
DDC Data
Sense 0
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
Pin Configuration
