Campbell Hausfeld IN629401AV7 - Manual

© 2009 Campbell Hausfeld/Scott Fetzer
Re
pl
ac
em
en
t
P
a
rt
s
Q
u
ic
k
C
o
n
n
e
c
t
R
e
fe
re
n
c
e
C
h
a
r
t
1

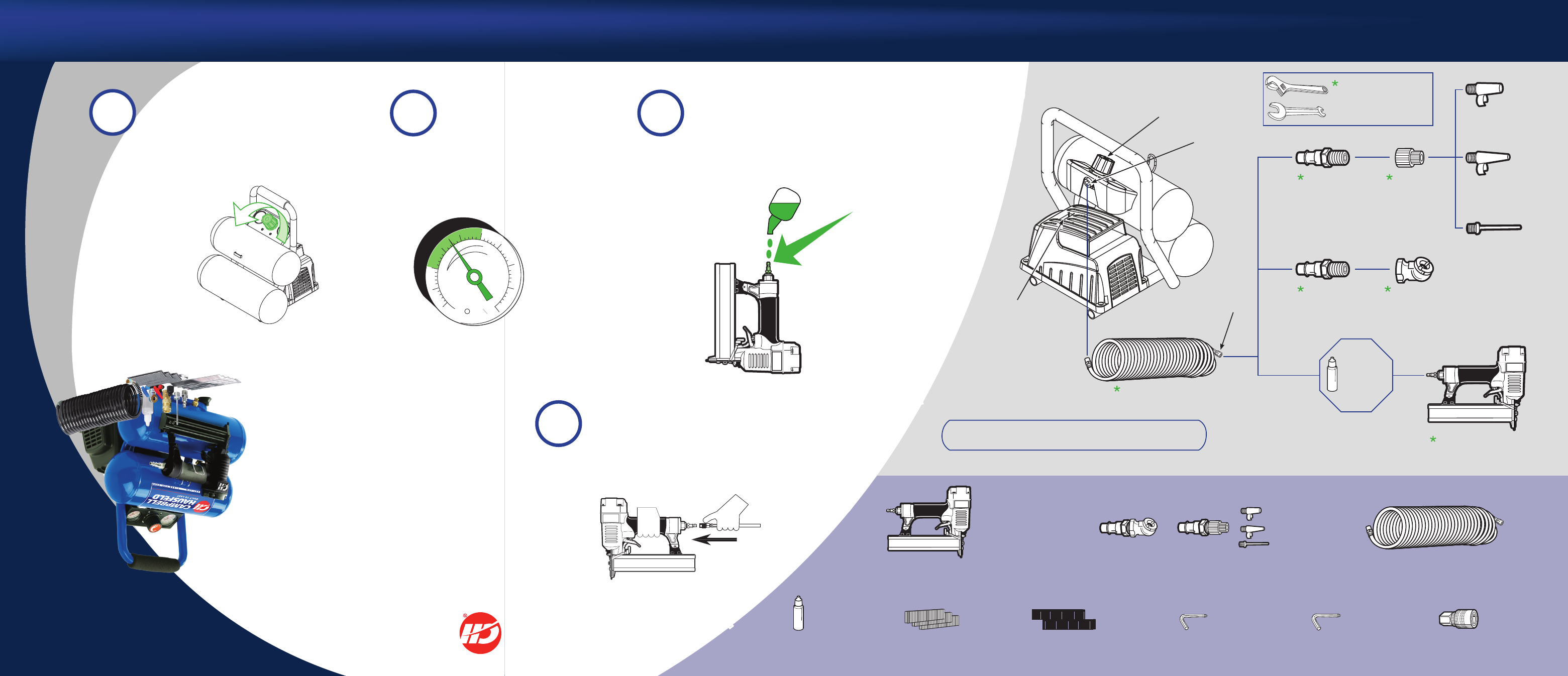

Close pressure regulator,
Turn on compressor and
Allow tank to reach
maximum pressure.
2
Attach air hose
to regulator outlet.
Adjust regulator
knob so outlet
pressure is between
60 psi and 100 psi.
Use 90 psi to
100 psi for
nailing or
stapling.
2 Gallon Air
Compressor Kit
FP2095
Setup Like a Pro
Easy Setup Guide
Projects ar e easier with
Campbell Hausfeld pr oducts.
Thank you for deciding to purchase a Campbell
Hausfeld product. W e are dedicated to pr oviding
tools to our customer that help them to complete
their projects Like a Pro.
IN629401AV 7/09
Visit us at chpower .com
Setup Like a Pro
FP2095 — Oilless Compressor
3
When using the Nailer / Stapler,
Place 4 to 5 drops of nailer
oil in air inlet. Tip nailer back
to reduce spillage.
Recoil Air Hose
Male Plug
Male Plug Tire Chuck
Adapter
Inflation Nozzle
Inflation Nozzle
Inflation Needle
Brad Nailer / Stapler
Compressor
Regulator Outlet
Pressure Regulator Knob
ON / OFF Switch Female Coupler
OIL: For
use with
Brad Nailer/
Stapler.
Use a wrench to
tighten threads when
connecting hose,
coupler, and plug.
4
Pull back collar on
coupler. Insert nailer plug
or plug with attached inflation
accessory.
Recoil Air Hose
Part Number: MP268100AV
Female Coupler
Part Number: MP288300AV
Tire Chuck, (2) Inflation Nozzles, Inflation Needle,
Inflation Adapter, and Male Plugs
Part Number: FP204008AV
Crown Staples
Part Number: FN258K00AV
Nailer Oil
Part Number: ST127012AV
3 mm Allen Wrench 4 mm Allen Wrench Brad Nails
Part Number: FB180050AV
Brad Nailer / Stapler
Part Number: SB504099AV
IMPORTANT: Drain tank after each use. After tank is drained,
tighten drain valve completely to help eliminate air leaks.
