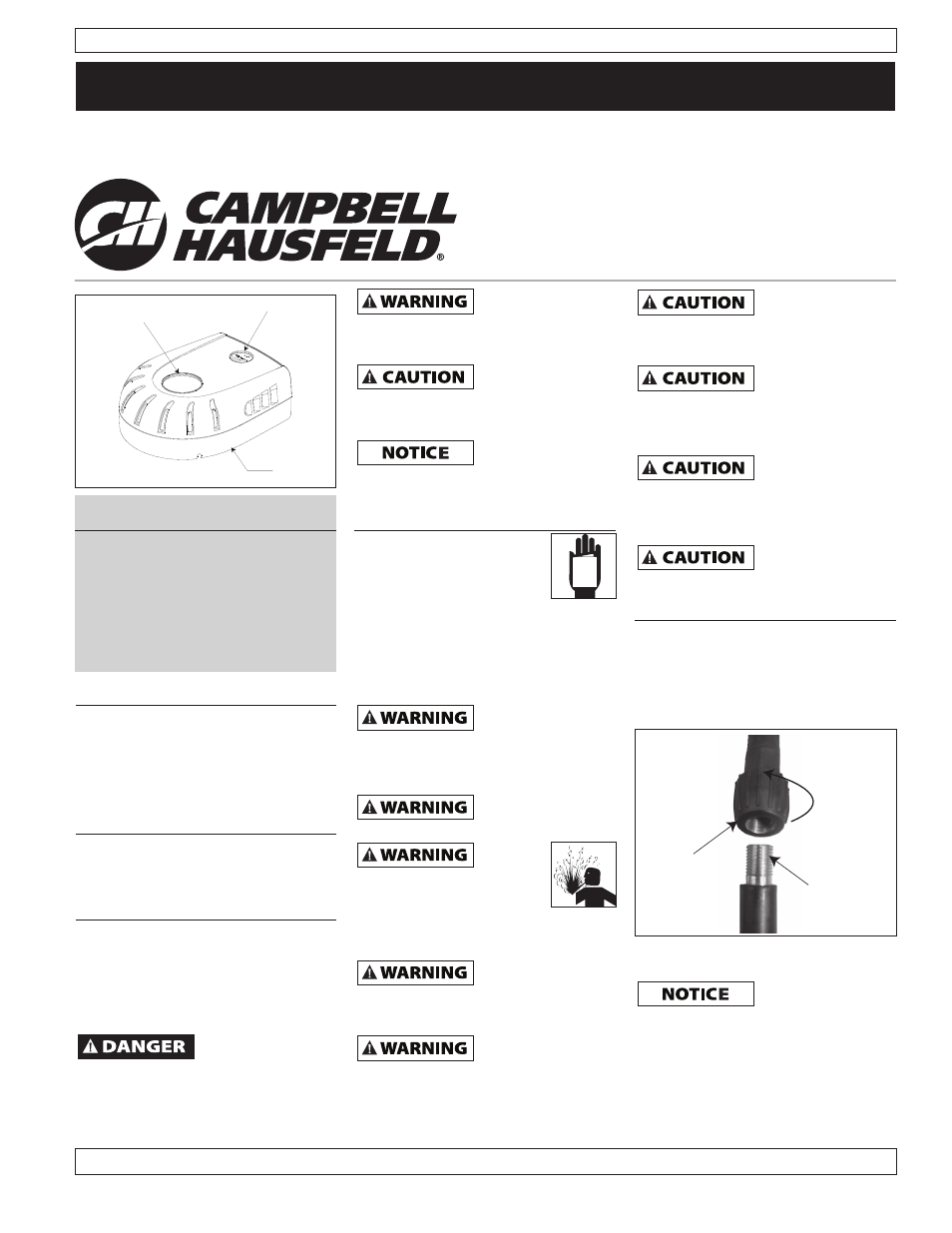

Campbell Hausfeld IN718303AV - Manual

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
For parts, product & service information
visit www.chpower.com
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
IN718303AV 1/10
See Warranty on page 2 for important information about commercial use of this product.
Operating Instructions
RP0650
© 2009 Campbell Hausfeld/Scott Fetzer
12-Volt Inflators
Description
The 12-volt inflator comes with inflation
nozzles and needle. The inflator can be used
for emergency roadside tire inflation and to
inflate bike tires, soccer balls, beach balls and
other sporting equipment.
Unpacking
When unpacking this product, carefully
inspect for any damage that may have
occurred during transit.
Safety Guidelines
This manual contains information that is very
important to know and understand. This
information is provided for SAFETY and to
PREVENT EQUIPMENT PROBLEMS. To help
recognize this information, observe the
following symbols.
Danger indicates an
imminently
hazardous situation which, if not
avoided, WILL result in death or serious
injury.
Always use a
separate pressure
gauge to check the actual pressure in
tires and in low pressure inflatable
objects.
Inflator must
cool for 20 minutes
after 20 minutes of continuous
operation. The Inflator is not designed
to operate continuously for more than
20 minutes.
Do not use inflator
on high pressure
tires used on large trucks, trailers or
tractors. The inflator is not designed to
operate for the length of time necessary
to inflate these tires.
Make sure the
adapter is properly
connected to the valve stem.
Operation
Tires
1. Remove valve stem cap.
2. Turn the adapter onto the valve stem
in a clockwise direction until a good
connection is achieved (See Fig. 1).
3. Plug power cord into 12-volt DC power
outlet.
For use with 12-volt
DC power outlets
rated 15 amps or higher. Do not use
with older 8 amp cigarette lighter
receptacles.
4. Turn power switch on.
Warning indicates a
potentially
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
Caution indicates a
potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates
important
information, that if not followed, may
cause damage to equipment.
General Safety
Completely read the manual
included with this product
carefully. Be thoroughly familiar
with the proper use of the unit.
Any misuse of unit could
cause property or equipment
damage and/or personal
injury.
CalIfORnIa PROPOSITIOn 65
This product or
its power cord may
contain chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.
Do not leave the
inflator unattended
while the unit is running.
Never exceed the
recommended pressure for
any inflatable object. Do
not over inflate objects. Over inflation
could cause property damage and/or
personal injury.
The adapter
must be properly
connected to secure the inflation
accessories. Use extreme caution when
using inflation accessories.
Always put the
car in park; set the
emergency brake; and chock the wheels
before using the inflator or property
damage and/or personal injury could
occur.
Specifications
Max Pressure . . . . 150 psi
Features . . . . . . . . Built-in Pressure Gauge
Compact Size
Cooling Fan
Weight . . . . . . . . . 1.5 lbs.
Voltage . . . . . . . . 12V, DC
Air Outlet. . . . . . . High Pressure Chuck
Fuse . . . . . . . . . . . 10 amp
MANUAL
figure 1
Turn
Valve Stem
Universal
Adapter
Pressure Gauge
Power Switch
Power
Cord Model RP0650
