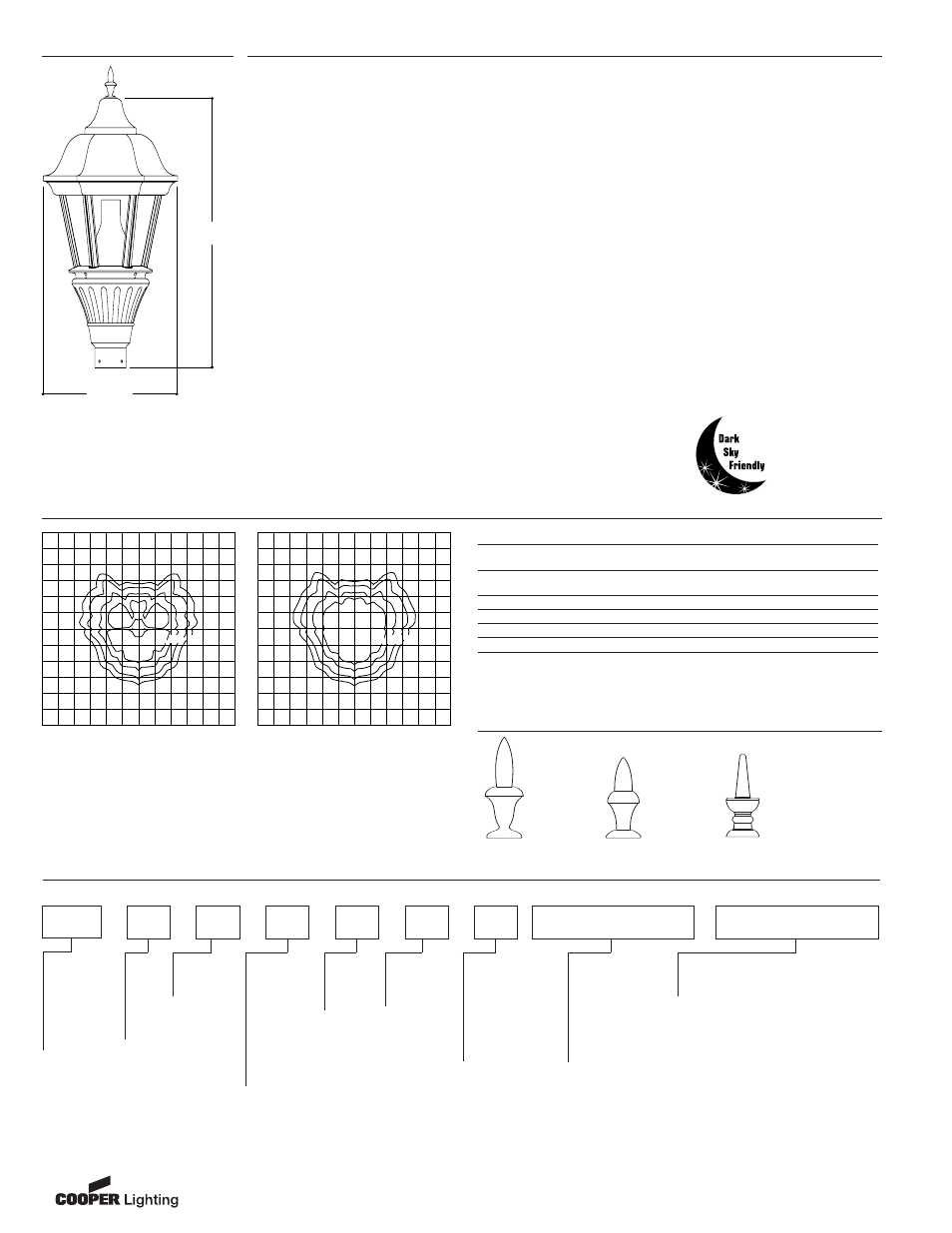

O R D E R I N G I N F O R M A T I O N
S A M P L E N U M B E R : C A C - 1 5 0 - H P S - 2 7 7 - 3 C - X - B K - L
F I N I A L O P T I O N S
www.cooperlighting.com
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 ADH041296
20 3/8"
[516 mm]
40 7/8"
[1038 mm]
NOTES: 1 Medium-base lamps standard for 150W and below Metal Halide. 2 Dual-tap is 120/277V wired 277V. Triple-Tap ballast is 120/240/347V wired 348V. 5-Tap ballast is 120/208/240/277/480V wired 480V. 3 Custom and RAL
color matching available upon request. Consult your Cooper Lighting Representative for more information.
Product Family
CAC=Cascade
with
Classical
Base
CAA=Cascade
with
Acorn Base
CAR=Cascade
with
Architectural Base
Color Option
(add as suffix.
Must specify color)
3
BK=Black
AP=Grey
BZ=Bronze
WH=White
GN=Hartford Green
DP=Dark Platinum
GM=Graphite Metallic
Options (add as suffix)
F=Single Fuse
(120, 277 or 347V.
Specify Voltage)
FF=Double Fuse
(208, 240 or 480V.
Specify Voltage)
CC=Matte Black Finish Chimney
R=Internal NEMA Twistlock Photocontrol
L=Lamp Included
Accessories (order separately)
OA/RA1016=NEMA Photocontrol—Multi-Tap
OA/RA1027=NEMA Photocontrol—480V
OA/RA1207=NEMA Photocontrol—347V Lamp
Wattage
1
50=50W
70=70W
100=100W
150=150W
175=175W
250=250W
Lamp Type
MH=Metal
Halide
HPS=High
Pressure
Sodium
Voltage
120=120V
208=208V
240=240V
277=277V
347=347V
480=480V
DT=Dual-Tap
Wired 277V 2
MT=Multi-Tap
Wired 277V 2
TT=Triple-Tap
Wired 347V 2
Refractor
Type
3C=Type III
Cutoff
5C=Type V
Cutoff
Finial Type
M=Modern
A=Architectural
N=Nostalgic
X=None
M O D E R N A R C H I T E C T U R A L N O S T A L G I C
C A S C A D E D E C O R A T I V E L U M I N A I R E
F o o t c a n d l e Ta b l e
Select mounting height and read across for footcandle values of each isofootcandle line.
Distance in units of mounting heights.
Mounting Footcandle Values for
Height Isofootcandle Lines
A B C D
10' 2.25 1.12 0.45 0.22
15' 1.00 0.50 0.20 0.10
20' 0.56 0.28 0.11 0.05
S P E C I F I C A T I O N F E A T U R E S D I M E N S I O N S
P H O T O M E T R I C S
A . . . To p a n d F i n i a l
Six-sided cast aluminum top provided with spun
aluminum top access cover for toolless lamp
replacement. Various cast aluminum finials
available.
B . . . R e f l e c t o r
Highly specular multi-faceted reflector system
provides a Type III or V Cutoff Distribution.
The vertical lamp position maximizes light output,
ensures a uniform distribution and minimizes
direct glare.
C . . . G l o b e
Six sided thermoformed acrylic lens is standard.
D . . . D e c o r a t i v e C h i m n e y
Decorative spun aluminum chimney provided with
brushed aluminum finish.
E . . . C a g e A s s e m b l i e s
Six (6) uprights are manufactured of cast
aluminum and attached to the cage ring via four
(4) allen head stainless steel fasteners. Cage is
attached to the top casting via four (4) stainless
steel set screws. Finish colors match housing color
choice.
F . . . E l e c t r i c a l
Ballast assembly is mounted on a removable tray
with quick disconnects for ease of installation and
maintenance. Plug-in starter is standard for all
HPS systems. Terminal block is hard mounted to
the casting and can be easily accessed through
the door’s wide entryway.
G . . . H o u s i n g
Heavy duty-cast aluminum housing for up to
250W Metal Halide or 250W High Pressure Sodium
systems. Optional NEMA photocontrol receptacle
is provided with toolless access for ease of
maintenance. Standard color include black, bronze,
grey, white, hartford green, dark platinum and
graphite metallic. RAL and custom color matches
available. Consult your Cooper Lighting
Representative.
H . . . M o u n t i n g
Post-Top mount fits 3" O.D. tenons. Four (4) allen
head stainless steel fasteners standard.
6
5
4
3
2
1
0
1
2
3
4
5
6
6 5 4 3 2 1 0 1 2 3 4 5 6
A BC D
C A C - 1 7 5 - M H - 1 2 0 - 3 C - X - B K
15' Mounting Height
175-Watt MH, Type III Acrylic Refractor
14,000-Lumen Clear ED-28 Lamp
6 5 4 3 2 1 0 1 2 3 4 5 6
6
5
4
3
2
1
0
1
2
3
4
5
6
A BC D
C A C - 1 5 0 - H P S - 1 2 0 - 3 C - X - B K
15' Mounting Height
150-Watt HPS, Type 3 Acrylic Refractor
16,000-Lumen Clear ED-23.5 Lamp
