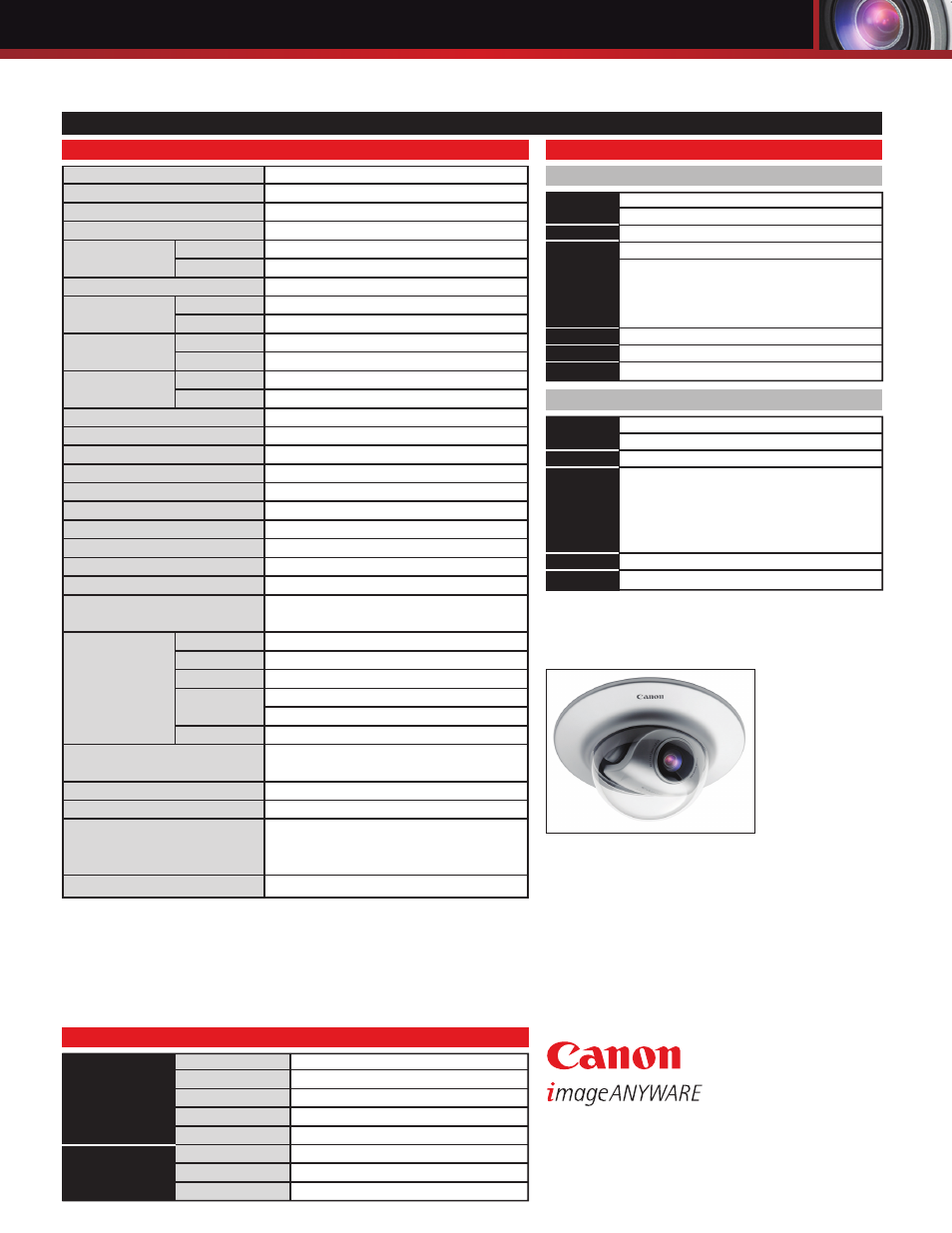

VB-C300
SPECIFICATIONS
OPTIONAL ACCESSORIES
Item Code. N0. Description
4075B001 VK-64 v2.2 Network Video Monitoring & Recording Software
4075B002 VK-16 v2.2 Network Video Monitoring & Recording Software
4075B003 VK-Viewer: 1 License for VK-64/16
4075B004 VK-Viewer: 5 Licenses for VK-64/16
2112B001 VB-RD41S-S Indoor Dome Housing Smoke
2112B004 VB-RD41S-C Indoor Dome Housing Clear
2245B001 PA-V17 AC Adapter
VIDEO SIGNAL Conforms to NTSC
IMAGE SENSOR 1/4-inch CCD (primary color filter)
TOTAL NUMBER OF PIXELS 680,000 (effective 310,000)
SCANNING METHOD Progressive Scan
MINIMUM ILLUMINATION
COLOR VIDEO 1 lux (F2.0, 1/30 sec.)
B & W VIDEO 0.25 lux (F2.0, 1/30 sec.)
DAY / NIGHT MODE Auto / Manual
FOCUS RANGE
DAY MODE 11.8 in.
NIGHT MODE 23.6 in.
LENS
ZOOM RATIO 2.4x Optical Zoom
FOCAL LENGTH / F-STOP f= 3.0~7.2mm / F2.0 (W)~F3.4 (T)
VIEWING ANGLE
HORIZONTAL 70.8° (W) to 29.6° (T)
VERTICAL 51.6° (W) to 22.1° (T)
PAN ANGLE RANGE 340° (+ / - 170°)
TILT ANGLE RANGE Upright Position= 115° (-25° to 90°), Inverted= 115° (-90° to 25°)
MOVING SPEED Pan= Max. 90° / sec., Tilt= Max. 70° / sec.
INFRARED CUT FILTER Power driven insertion / removal (Normal mode / Night Mode)
WHITE BALANCE TTL system: Auto / Manual preset / One-shot
PROTOCOLS HTTP, DHCP, WV-HTTP (from Canon)
VIDEO COMPRESSION METHOD Motion-JPEG compression (movie) JPEG (still pictures)
VIDEO COMPRESSION RATE NTSC: 0.1fps to 30fps
AUDIO COMPRESSION METHOD G.711µ-law (64kbps) full duplex
OUTPUT VIDEO SIZE 640 X 480, 320 X 240, 160 X 120
CONNECTION RESTRICTIONS
Access control (password), video connection, number of concurrent
connections (maximum of 15)
NETWORK LAN x 1 (RJ-45, 100 Base-TX / 10Base T auto negotiation)
AUDIO IN Connection to a microphone with amp and LINE input x 1
MAIN UNIT INTERFACE AUDIO OUT Connection to a speaker with amp x1
VIDEO OUT
3.5 monaural, mini-jack
Video composite signal output from network camera (for maintenance) x 1
EXTERNAL DEVICE I / O Input x 2, Output x 1
DIMENSIONS (H x W x D)
Approx. 4.79 x 5.19 x 5.12 in. (Main unit only, excluding rubber feet
and ceiling bracket)
WEIGHT Approx. 1.85 lbs.
OPERATING ENVIRONMENT Temperature 0° - 40° C, humidity 20-85%RH (condensation free)
Capable of PoE power supply via LAN connector (in accordance with
POWER IEEE 802.3af compliant) 24VAC / 12VDC, (using the supplied connector,
no polarity) AC Adapter for 100VAC to 240VAC (PA-V17)
POWER CONSUMPTION Max: Approx. 10W (PoE), Max: Approx. 13W (When the AC Adapter is used)
OPTIONAL ACCESSORIES
SOFTWARE
OTHERS
P R O F E S S I O N A L P R O D U C T S
Description
PA-V17
100-240 VAC 50 / 60 Hz
13 VDC 1.8 A (max.) Temperature: - 10° C to 35° C
Humidity: 20 to 85%RH (condensation free)
When using the network camera 13 VDC 1.0 A (max.)
Temperature: - 10° C to 45° C
Humidity: 20 to 85%RH (condensation free)
Exterior (-) Interior (+)
2.28 x 4.65 x 0.98 in. (58 x 188 x 25 mm) (W x D x H) (excluding attachment)
Approx. 0.474 lb (215 g) (excluding cables)
Description
VB-RD41S-C / VB-RD41S-S
Clear / Smoke Type
Temperature 0 - 45° C
Humidity 20 - 85%RH (condensation free)
7.09 (4.43: dome) x 3.21 in. (H) Including Ceiling Portion: 5.77 in.
Approx. 0.820 lb (372 g) (excluding cables)
MODEL
INPUT
OUTPUT
POLARITY
DIMENSIONS
WEIGHT
MODEL
TYPE
USING
ENVIRONMENT
IN COMBINATION
WITH THE
CAMERA
DIMENSIONS
WEIGHT
AC ADAPTER
INDOOR DOME HOUSING
The VB-C300 is also
versatile in the ways it
can be installed. It can
be placed in an upright
position, or mounted on
the ceiling, either in the
open or in an optional
indoor dome recessed
housing available in clear
or smoked models.
Easy Setup and Installation
