Installation Instructions MSS6000
7

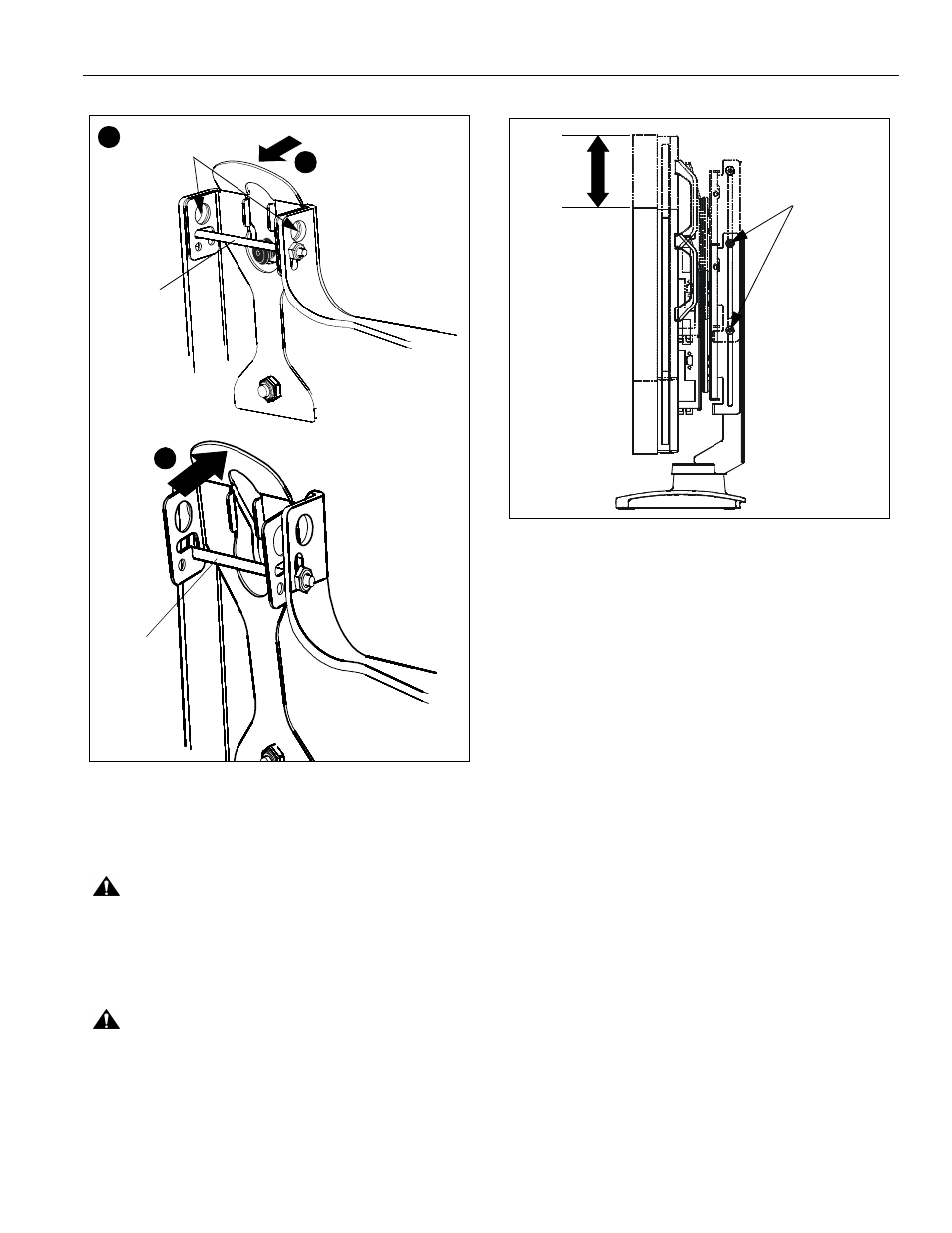

Figure 7
ADJUSTMENTS
Display Height Adjustment
CAUTION: Displays are fragile. Allowing the display to
drop to bottom of stand may result in damage to the
display.
1. While holding the display, loosen the four height
adjustment screws. (See Figure 8)
CAUTION: Make sure all cables and wires are not
pinched when raising or lowering display.
2. Position display at the desired height.
3. Tighten four height adjustment screws. (See Figure 8)
Figure 8
Display Roll Adjustment
The MSS-6000 provides limited display roll adjustment
for the purpose of leveling the display.
To level the display:
1. Loosen upper and lower roll adjustment nuts.
(See Figure 9)
2. Level display. (See Figure 9)
3. Tighten roll adjustment nuts.
2
1
Remove bolt
or padlock
if used
Pin in
"Open"
position -
Pin in
"Closed"
position -
4
move to
"Open"
position to
move to
"Closed"
position
remove
display
after display
is removed.
Height Adjustment
Screws
(2 each side)
5" Max.
