Pre-Out connections

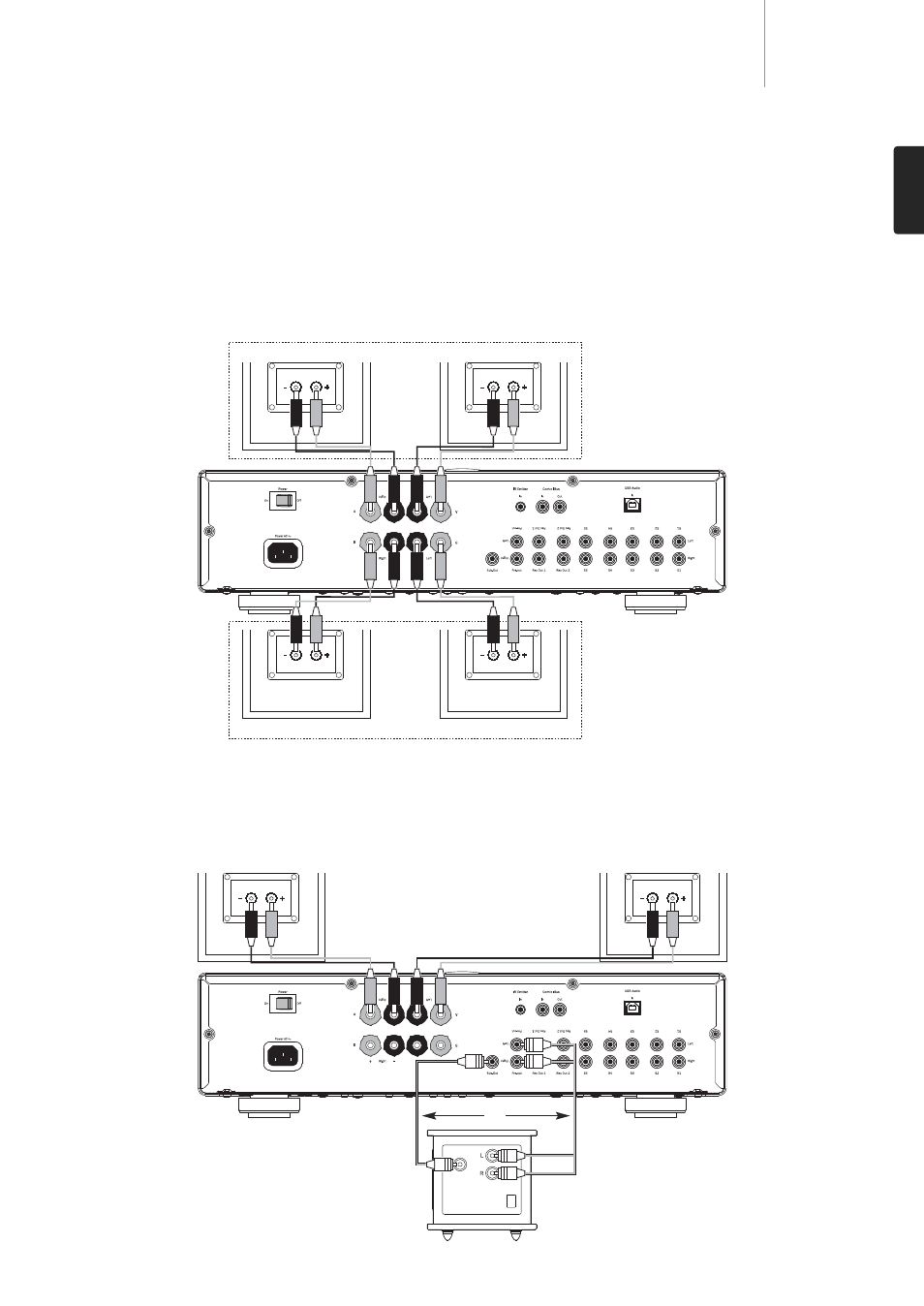

The Pre-Out sockets are for connecting to the input sockets of a power
amplifier, or active subwoofer. The diagram below shows how to connect
the amplifier to an active subwoofer via either a mono Sub in or Stereo
Line In inputs on the subwoofer.

Line

In

Sub

In

ENGLISH

Speaker B connections

The Speaker B connections on the back of the amplifier allow for a second
set of speakers to be used (i.e. speakers located in another room).
The Speaker A/B button on the remote control allows the two sets of
speakers to be toggled on and off. Refer to the Remote Control section of
this manual for more information on the Speaker A/B operation.

Set either A or B, or both A and B may be selected for use.

Note: When using two pairs of speakers, use speakers with a minimum
nominal impedance of 8 ohms each.

Amplifier

Amplifier

Speaker A

Main Room

Speaker B
Room Two

Right

speaker

Left
speaker

Subwoofer

Or
