6

Connections

Note: Before making any connections, make sure that the 651A is turned
off.

When designing our amplifiers we include features that allow you to
connect your system in various ways. The inclusion of features such as
Pre-Out and Speaker B connections mean that you can flexibly configure
your system depending on your requirements.

Record out connection

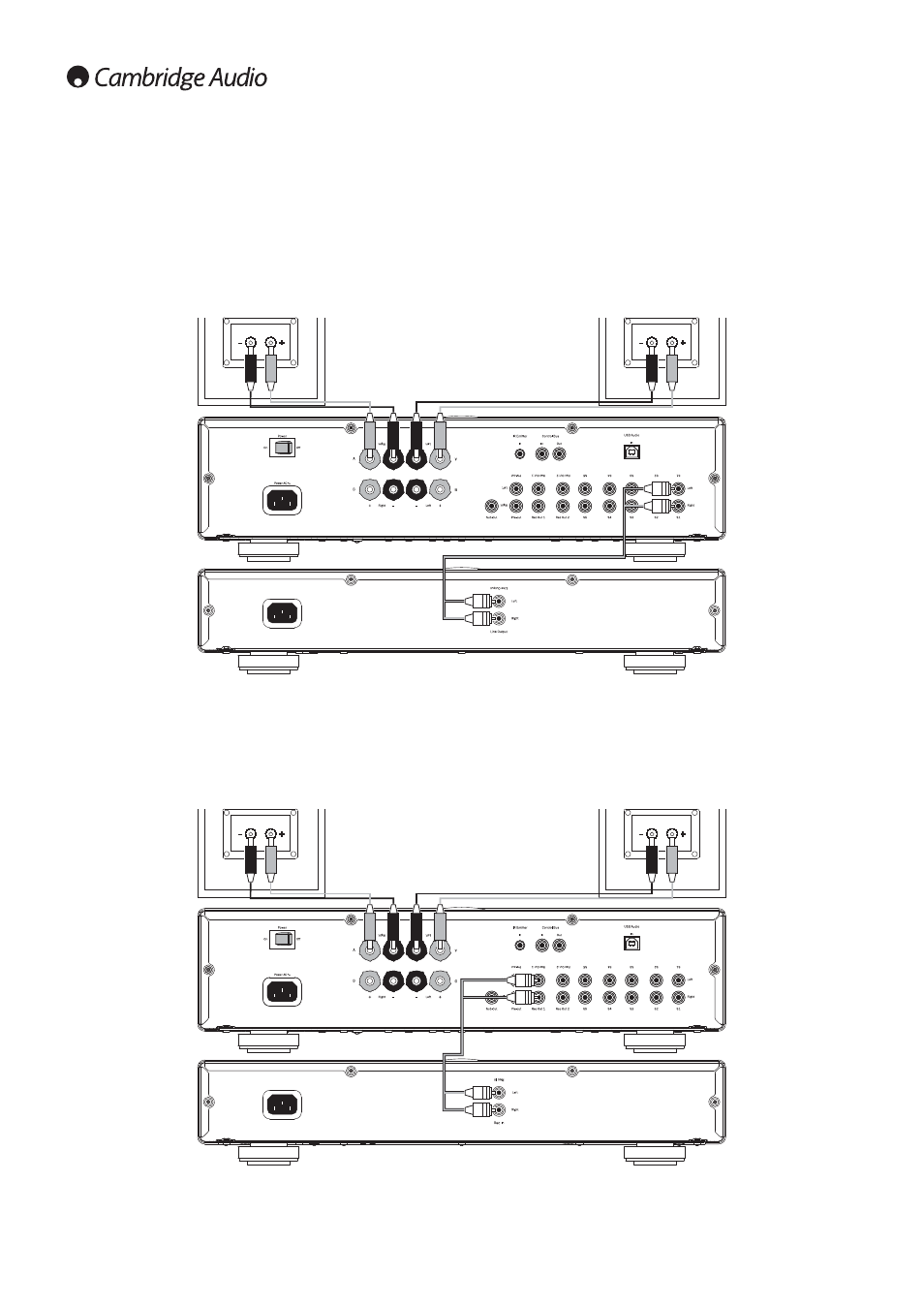

The diagram below shows how to connect the amplifier to a tape recorder
or other component with a record function. Please note that either of the
record outputs can be used (as they are both the same signal in parallel).

Amplifier

Right

speaker

Left
speaker

Right

speaker

Left
speaker

CD player

Amplifier

Tape/MD player

Red

Red Black Black Red

Black

Red

Black

Basic connection

The diagram below shows the basic connection of your amplifier to a
CD player and a pair of loudspeakers.
