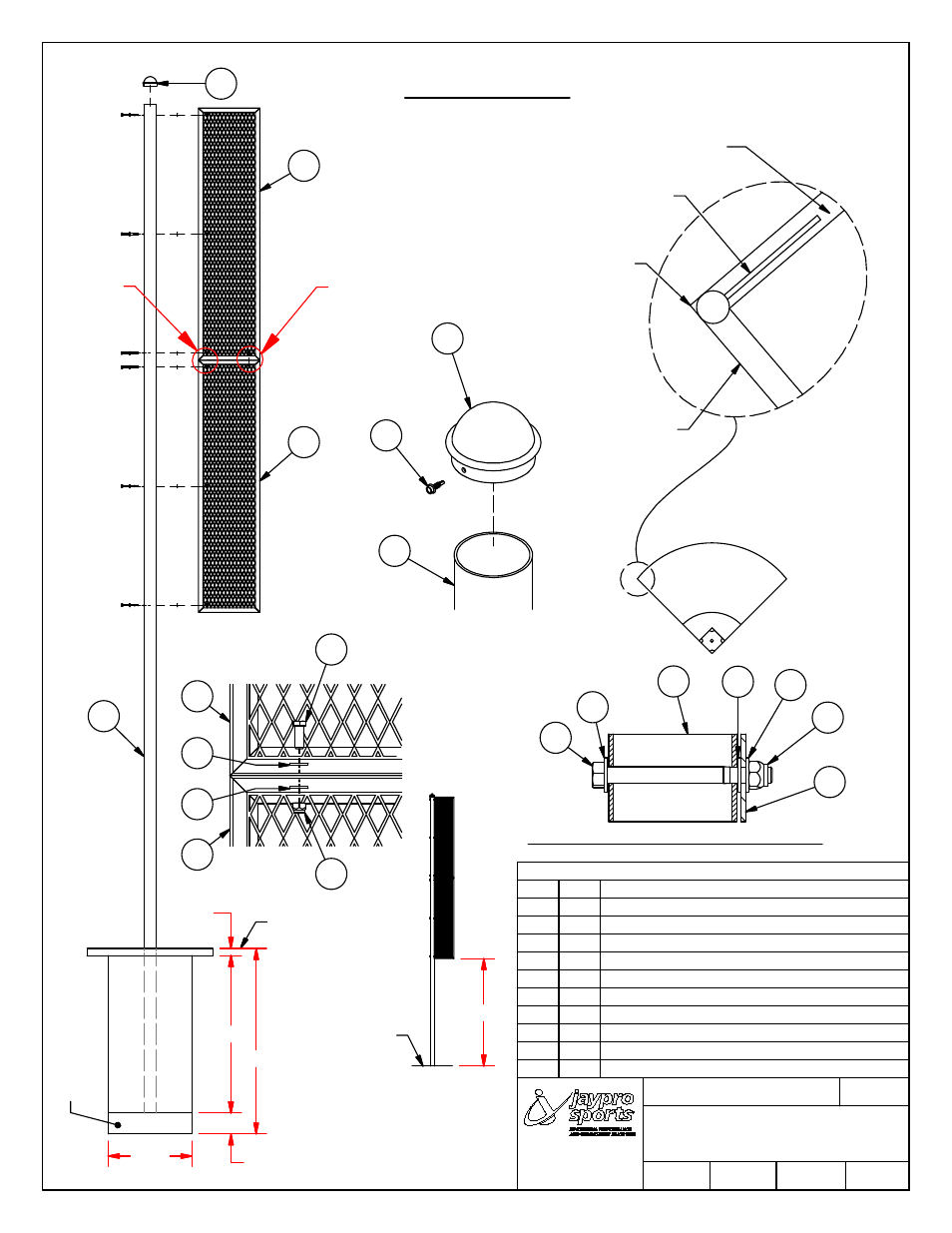

Jaypro Sports BBCFP-20 - Manual

DETAIL A
WING PANEL TO POLE UPRIGHT
DETAIL A
SCALE 1 / 16
Parts List
DESCRIPTION QTY ITEM
BBCFP POLE SCREEN PANEL 2 1
BBCFP-20 SINGLE POLE UPRIGHT 1 2
3/8" SAE FLAT WASHER, ZP 4 3
3/8"-16 HEX HD LOCKNUT, ZP 2 4
3/8"-16 x 1" HEX HD CAP SCREW, ZP 2 5
YELLOW POWDERCOATED CAP FOR 3.5 O.D. TUB 1 6
#12-14 SELF-DRILLING SCREW, ZP 1 7
Hex Bolt - 7/16"-14 x 4-1/2" 6 8
7/16'' SAE FLAT WASHER, ZP 18 9
7/16"-14 NYLON LOCK NUT, ZP 6 10
A A
DATE: DRAWN BY:
12/4/2013
MODEL NUMBER: CHECKED BY:
PRODUCT NAME:
Moune T.
BBCFP-20
20' Collegiate Foul Pole
WVB
REV:
B
SHEET:
1 OF 1
OUTFIELD FENCE
FOUL POLE PANEL IS
ALIGNED WITH OUTFIELD FENCE
OUTSIDE OF FOUL POLE FLUSH
WITH OUTSIDE OF FOUL LINE
FOUL LINE
BBCFP-20
20' Collegiate Foul Pole
GROUND LEVEL
C
O
N
C
R
E
T
E
C
O
N
C
R
E
T
E
24"
45"
2" TYP
TURF
6"
53"
2
* FOLLOW CONCRETE DETAIL AS
SHOWN IF OPTIONAL GROUND SLEEVE
IS NOT USED.
* MANUFACTURER RECOMMENDS
THE FOOTING BE REINFORCED
WITH 6 PIECES OF 3/4" x 46" REBAR.
1
1
6
10
9
1
9 2
9
8
7
6
2
TOOLS:
1) 5/8" WRENCH FOR POLE TO PANEL.
2) 9/16" WRENCH FOR PANEL TO PANEL.
3) 5/16" HEX SOCKET FOR END CAP.
C
R
U
S
H
S
T
O
N
E
O
R
C
O
N
C
R
E
T
E
F
O
O
T
IN
G
8'-0"
GROUND LEVEL
1
1
5
4
3
3
