1

1

OF

PHONE:

800.243.0533 (TOLL FREE)

860.447.3001 (LOCAL)

FAX:

860.444.1779 (SALES)

860.440.0628 (ENG.)

JAYPRO SPORTS, LLC, 976 HARTFORD TURNPIKE, WATERFORD, CT 06385 USA

www.jaypro.com

THIS PRINT IS THE PROPERTY OF JAYPRO SPORTS, LLC.

AND MAY NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION

COPYRIGHT 2006

JAYPRO SPORTS, LLC.

ALL RIGHTS RESERVED

REV.

DESCRIPTION

DATE

BY

BREAKAWAY BASE SET

BB-700

Moune T.

2/25/2013

WVB

BB-700

DRAWN BY:

DRAWING NAME / PART NUMBER:

CHK'D BY:

ISSUE DATE:

REV.

SHEET:

2/26/2013

INITIAL RELEASE

Moune T.

-

2/26/2013

CHK DATE:

-

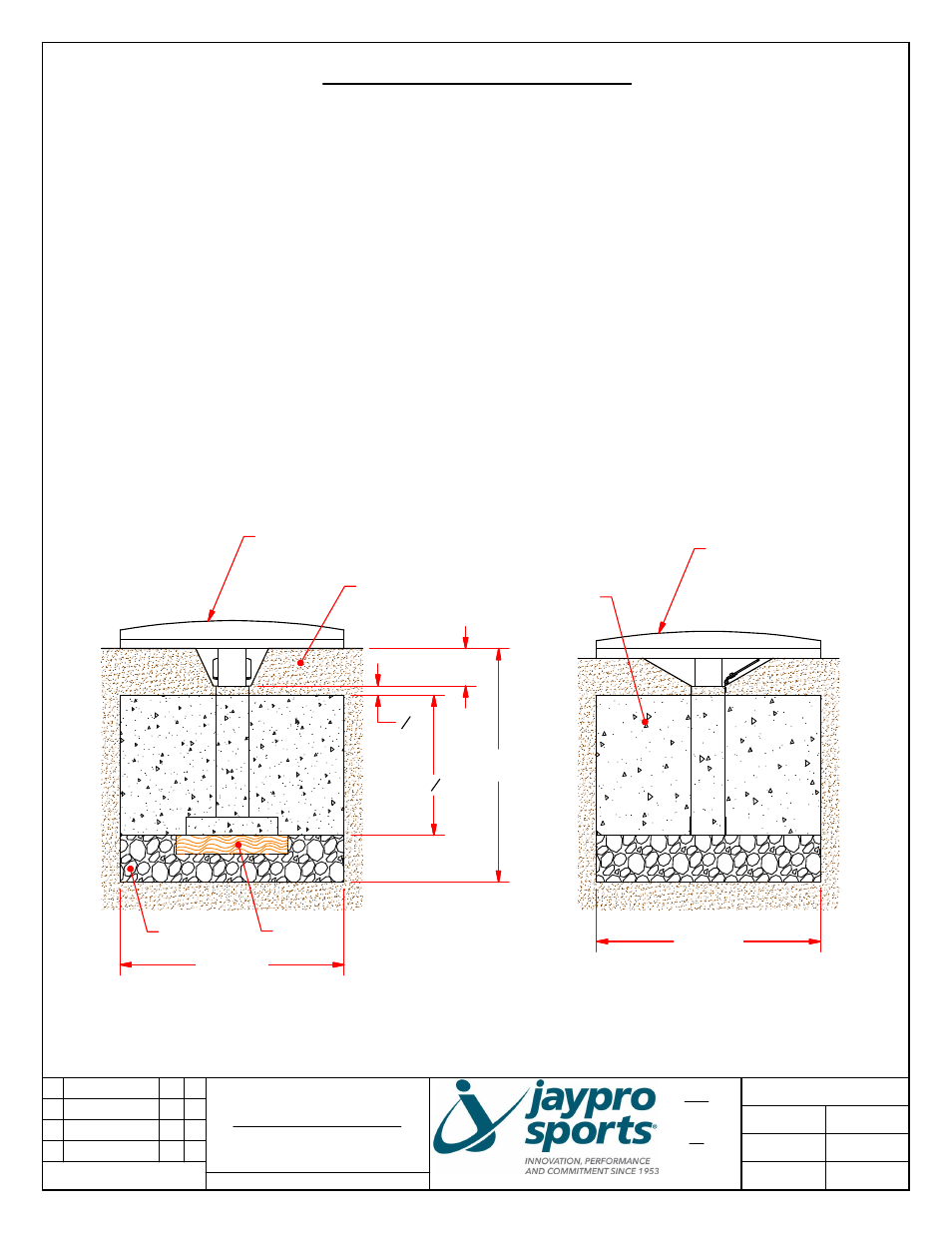

1. Excavate hole at location required for your distance. (12 long x 12 wide x 12 deep)

2. Establish block to allow top of anchor 2 below top of mound.

3. Fill hole with stone to bottom of anchor.

4. Pour concrete to within 1/2 of top of anchor. 2-1/2 below top of playing surface. Allow to cure.

5. Fill void with clay allowing for taper to openings of anchor.

REMOVABLE BASES

Installation Instructions Models: BB-700

MAINTENANCE: Keep ground anchors covered with built-in hinge cap when not in use to
prevent dirt from getting into the anchor. Remove any dirt that might obstruct the base from
entering the ground anchor.

7

1

2

"

12" LONG

1

2

"

2"

12" WIDE

12"

DEEP

STONE

BLOCK

CONCRETE

CLAY

RUBBER BASE PLATE
W/ BASE COVER

RUBBER BASE PLATE
W/ BASE COVER
