www.jaypro.com Page 4
ITEM QTY DESCRIPTION
1 1 CENTER UPRIGHT INSERT
2 1 EYEBOLT 3/8-16 x 3 1/2in
3 1 EYEBOLT 3/8-16 x 3 in
4 1 EYE NUT 3/8-16
5 1 NYLOCK NUT 3/8-16
6 1 ACORN NUT 3/8-16
7 1 BUTTON HEAD SCREW 3/8-16
8 1 FLAT WASHER 3/8 in
9 1 CAP
ASSEMBLY INSTRUCTIONS
1. Unpack unit and check to see that unit is undamaged and complete as shown. Read all assembly
instructions and caution labels carefully.
2. Unit is designed to fit a 3 1/2 in diameter 10 inch deep sleeve. Refer to the Double Court Layout
Illustration for location of ground sleeves.
3. Uprights are heavy and it is imperative to have two persons lift and place into ground sleeve.
Final configuration will have a Volleyball winch on each outside standard.

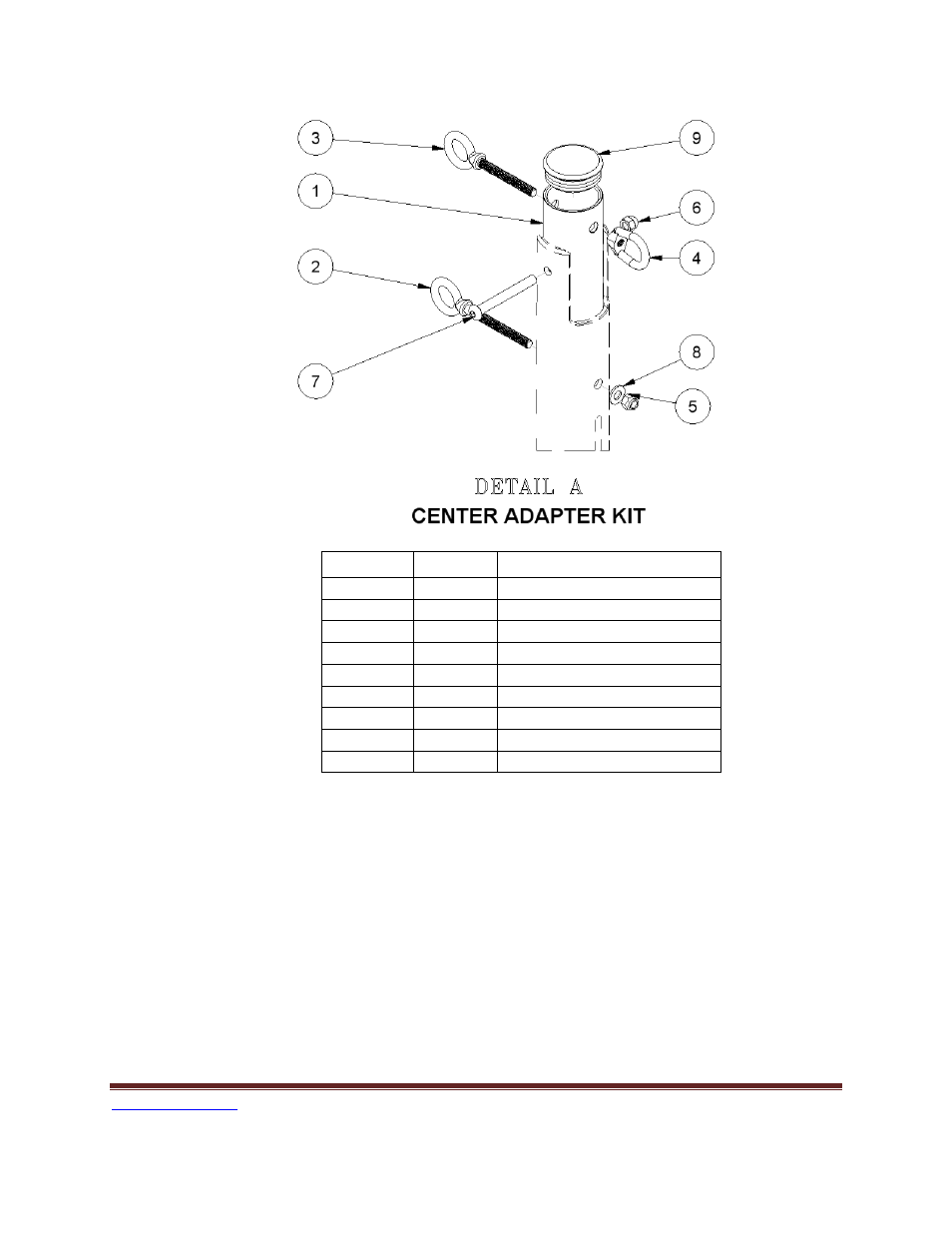

4. Assemble Center Standard as shown in Detail A. Refer to the system installation instructions to
assemble the outer uprights.
