PVB Series Collegiate Net System Instructions
- 6 of 9-
JSL-Inst040
www.jayprosports.com
6 Assembly
WARNING: Uprights are heavy. Do not attempt to lift or install without assistance.
1. Install each upright into the ground sleeves.
2. Follow instructions included with winch to set the winch clamp to the correct
upright diameter (3-1/2”).
3. Install winch to one upright using the button head cap screw and acorn nut
(Figure 6-1, items 1 & 2).
4. Fasten the clamp together using the cap screws supplied with the winch (Figure
6-1, item 4-1).

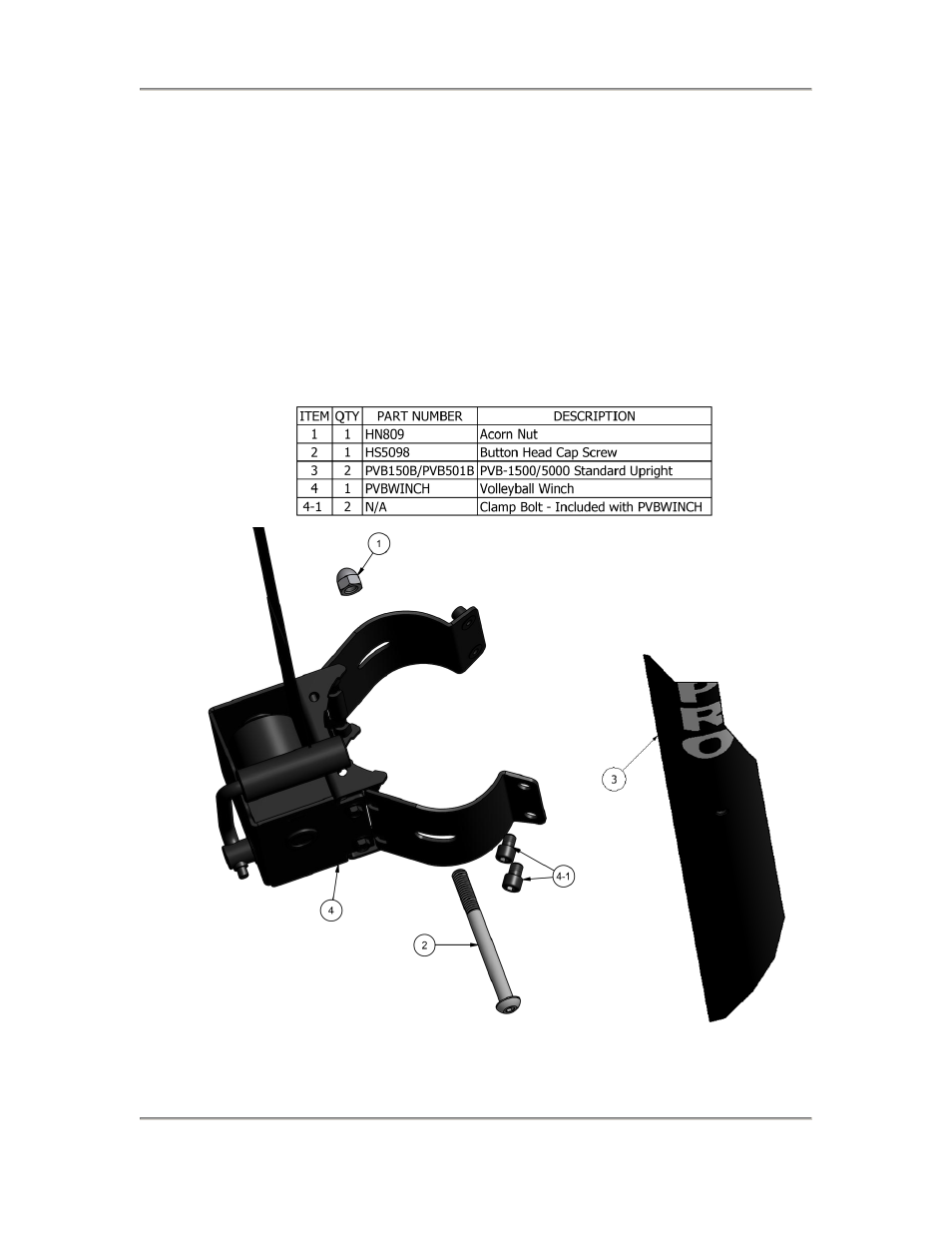

Figure 6-1: Winch installation.
