Jaypro Sports OFHG7124 - Manual (Page 2)

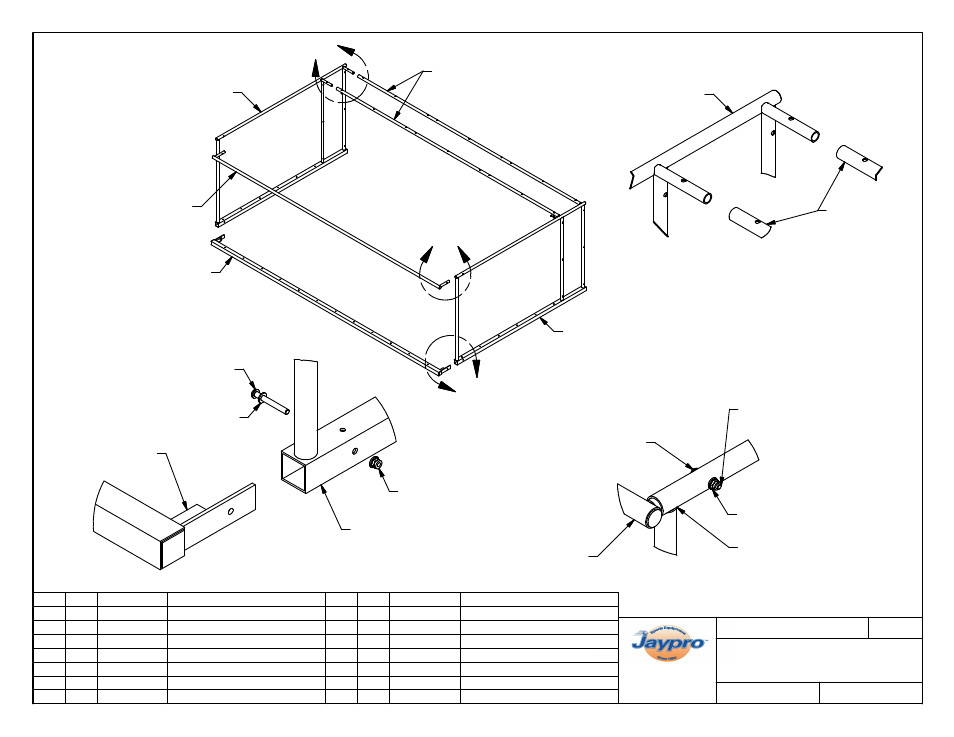

DETAIL C
(TYP BOTH ENDS)
DETAIL B
(TYP BOTH ENDS)
DETAIL A
(TYP BOTH ENDS)
976 Hartford Turnpike
Waterford, CT 06385 USA
(800)243−0533 Fax: (800)988−3363
www.jaypro.com
EFFECTIVE DATE: DRAWN BY:
3/22/2010
MODEL NUMBER: CHECKED BY:
PRODUCT NAME:
Moune T.
OFHG-7124
OFFICIAL FIELD HOCKEY GOAL
ASSEMBLY INSTRUCTION PACKAGE
WVB
TOP FRONT CROSSBAR FHG-60-J1 1 1
TOP REAR CROSSBAR FHG-60-2 1 2
LEFT SIDE FRAME FHG-60-3 1 3
RIGHT SIDE FRAME FHG-60-4 1 4
REAR LOWER CROSSBAR FHG-60-5 2 5
REAR FOOT BOARD x 48" LONG FHG-16-1 3 6
SIDE FOOT BOARD x 45 1/2" LONG FHG-16-2 2 7
DESCRIPTION PART NUMBER QTY ITEM
M8 x 65 mm BUTTON HD SCREW, ZP BOLT-A 2 8
M8 x 60 mm BUTTON HD SCREW, ZP BOLT-E 30 9
M8 x 50 mm BUTTON HD SCREW, ZP BOLT-C 2 10
M8 WASHER, ZP WASHER-A 4 11
M8 NYLON LOCK NUT, ZP NUT-A 34 12
NET CLIP KIT SNT-180 1 13
7' x 12' x 4' WEATHERPROOF NET FHND-8 1 14
DESCRIPTION PART NUMBER QTY ITEM
C
B
A
RIGHT SIDE FRAME
(ITEM 4)
LEFT SIDE FRAME
(ITEM 3)
TOP FRONT CROSSBAR
(ITEM 1)
TOP REAR CROSSBAR
(ITEM 2)
M8 x 65 mm BUTTON HD SCREW, ZP
(ITEM 8)
M8 WASHER, ZP
(ITEM 11)
M8 NYLON LOCK NUT, ZP
(ITEM 12)
M8 x 50 mm BUTTON HD SCREW, ZP
(ITEM 10)
M8 WASHER, ZP
(ITEM 11)
M8 NYLON LOCK NUT, ZP
(ITEM 12)
TOP FRONT CROSSBAR
(ITEM 1)
LEFT SIDE FRAME
(ITEM 3)
REAR LOWER CROSSBAR
(ITEM 5)
TOP REAR CROSSBAR
(ITEM 2)
LEFT SIDE FRAME
(ITEM 3)
REAR LOWER
CROSSBAR
(ITEM 5)
RIGHT SIDE FRAME
(ITEM 4)
