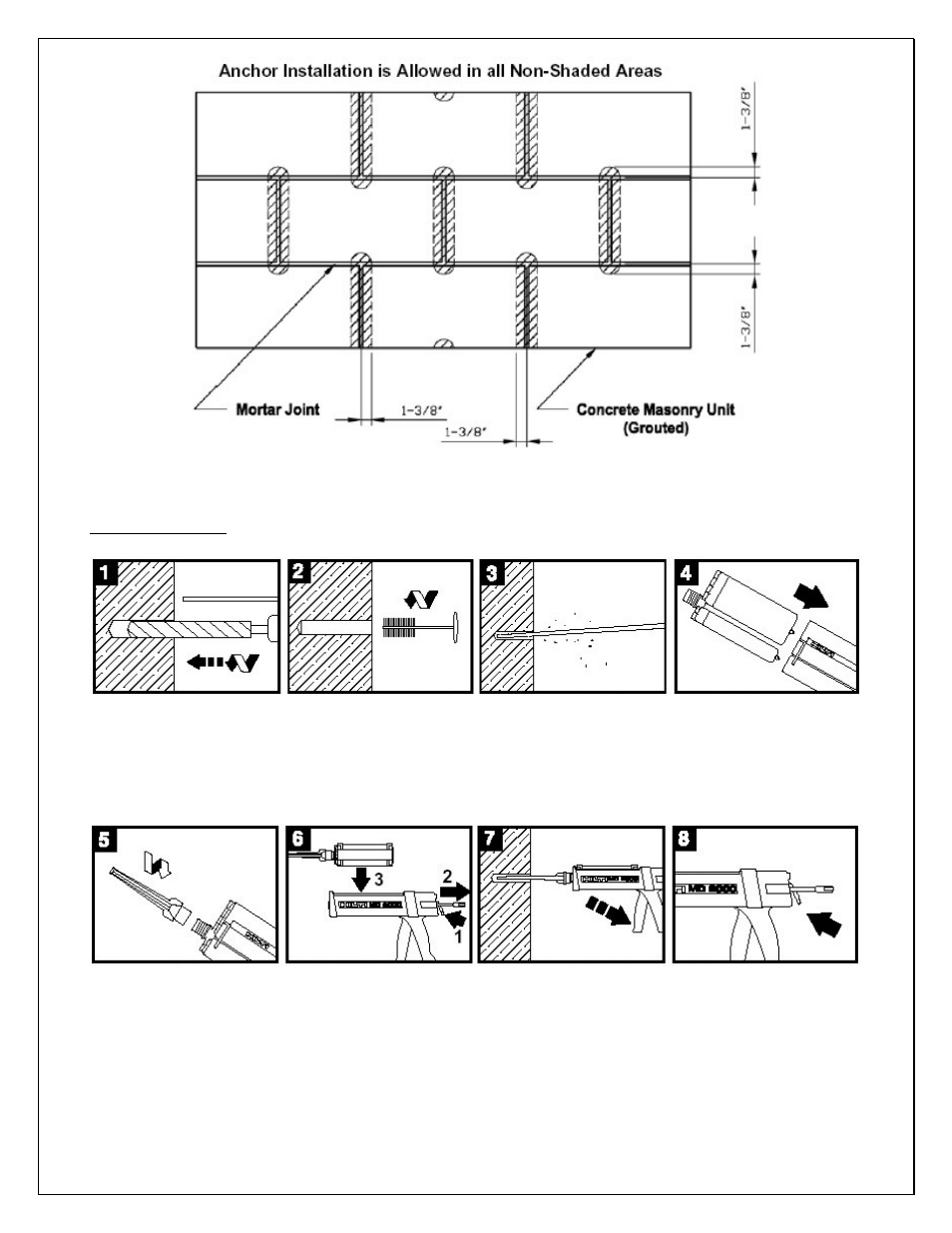

Figure 5: Allowed Anchor Locations for Concrete Masonry Unit (CMU)
Hilti Kwik Bolt 3 [HIT HY 150 Adhesive Anchor System]
1. Drill anchor hole with carbide bit. Contact Hilti for use of Diamond Core bits.
2. Clean hole with wire brush. Proper hole cleaning is essential.
3. Insert air nozzle to bottom of hole and blow out hole using a pump or compressed air.
4. Put refill pack into holder. Remove cap covering threaded projection.
5. Screw on static mixer.
6. Put holder/cartridge into appropriate dispenser and discard first two trigger pulls of adhesive
from each refill pack or cartridge.
7. Inject adhesive into hole starting at the bottom until 1/3 to 2/3 full. Use mixer filler tube
extensions when needed to reach the hole bottom.
8. Unlock dispenser.
