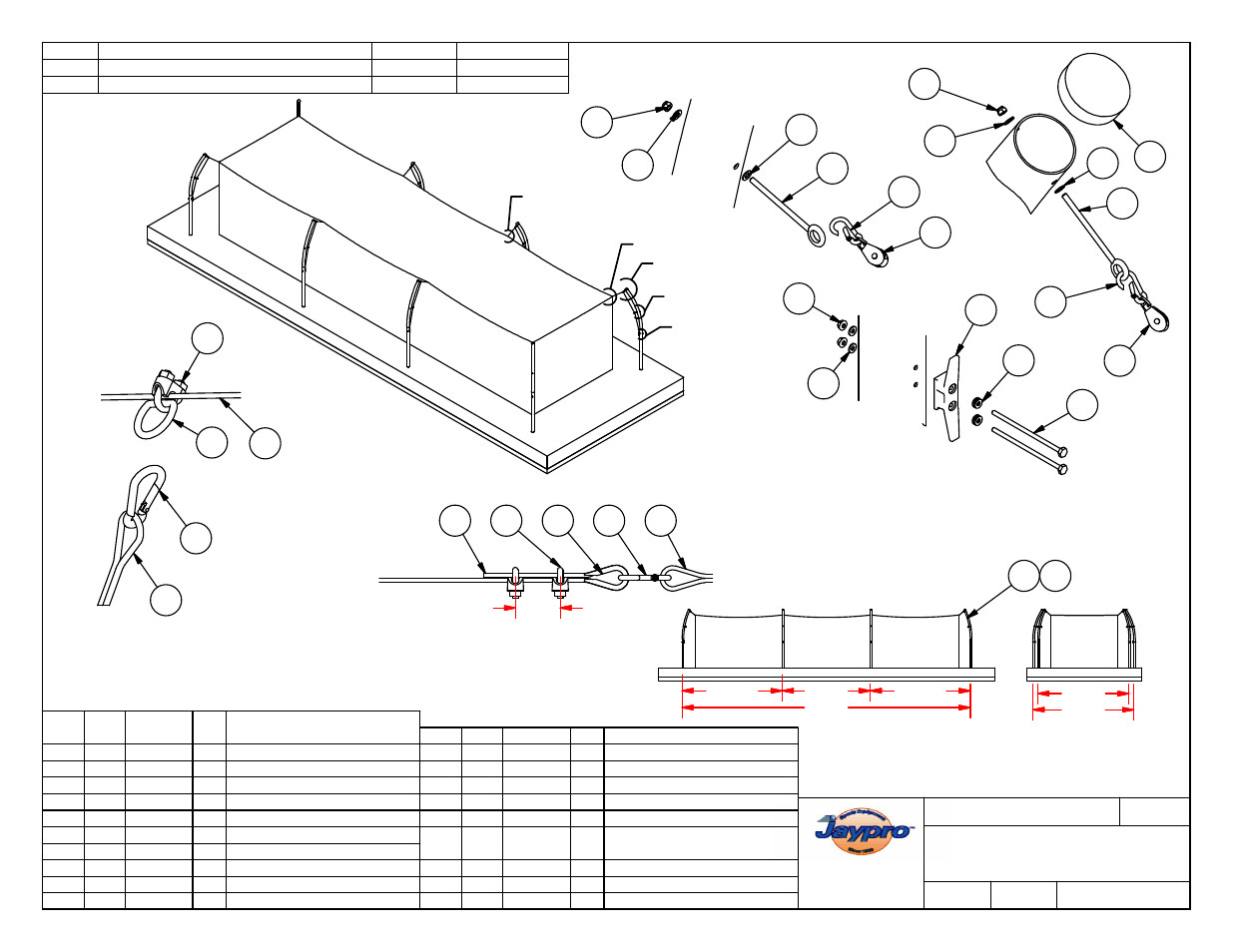

DETAIL A
SCALE 0.01 : 1 DETAIL B
SCALE 0.01 : 1
DETAIL C
SCALE 0.01 : 1
DETAIL A
DETAIL B
DETAIL C
CABLE END DETAIL D
(TYP AT 4 CORNERS)
MID CABLE END DETAIL E
(TYP AT 4 MIDDLE POLES)
DETAIL D
SCALE 0.01 : 1
DETAIL E
SCALE 0.01 : 1
4" OD CURVED BATTING TUNNEL TUBE
-
PROTF-1
8
1
4" OD GROUND SLEEVE
B
SGP-445G
8
2
4" PLASTIC PIPE CAPS, BLACK
N/A
EP0027
8
3
1/4" WASHER LOCK MD STL, SS
N/A
HW781
48
4
1/4" SAE FLAT WASHER, ZP
N/A
HW2093
16
5
3/16" GALV. AIRCRAFT CABLE x 61 FT
N/A
RC5012
2
6
5/16 - #10 POLYESTER WHITE BRAIDED
HOISTING ROPE x 20 FT
N/A
CR0017
8
7
1/4" x 2 3/8" SNAP HOOK
N/A
HM5013
24
8
1 1/2'' SWIVEL PULLEY
N/A
HM6226
16
9
DESCRIPTION
REV
PART #
QTY
ITEM
3/8"-16 x 5" LONG THREADED EYEBOLT,
ZP
N/A
HB5012
16
10
3/8" FLAT WASHER SAE, ZP
N/A
HW2050
32
11
3/8"-16 HEX HD LOCKNUT, ZP
N/A
HN265
16
12
6" LONG GALV. STEEL CLEAT
N/A
HM6331
8
13
1/4"-20 x 5 1/2" HEX HD SCREW, ZP
N/A
HS5077
16
14
1/4"-20 NYLON LOCKNUT, ZP
N/A
HN256
16
15
3/16" CABLE THIMBLES
N/A
HM251
4
16
3/16" CABLE CLAMPS
N/A
HM218
14
17
1/8" x 1" DIA STEEL RINGS
N/A
HM6022
4
18
PLASTIC ZIP TIES HEAVY DUTY, BLACK
N/A
RP5013
150
19
DESCRIPTION
REV
PART #
QTY
ITEM
A
B
C
A
B
C
D
E
DATE:
DRAWN BY:
1/6/2010
MODEL NUMBER:
CHECKED BY:
PRODUCT NAME:
Moune T.
PROTF-55
55 FT NET PROFESSIONAL OUTDOOR
BATTING TUNNEL FRAMES
WVB
REV:
A
REV
DESCRIPTION
DATE
BY
-
INITIAL RELEASE
1/26/2010
Moune T.
A
DETAIL D & E ADDED, UPDATED BOM QTY
3/2/2012
Moune T.
1
2
20'-10"
18'-4"
20'-10"
60'-0"
19'-0"
21'-0"
6
17
16
8
7
0'-2"
3
12
11
10
9
8
15
13
14
4
11
x3
5
12
11
11
10
8
9
18
6
17
7
8
(AIR CRAFT CABLE)
(HOISTING ROPE)
(HOISTING ROPE)
