Jaypro Sports BBTF-70 - Manual (Page 2)

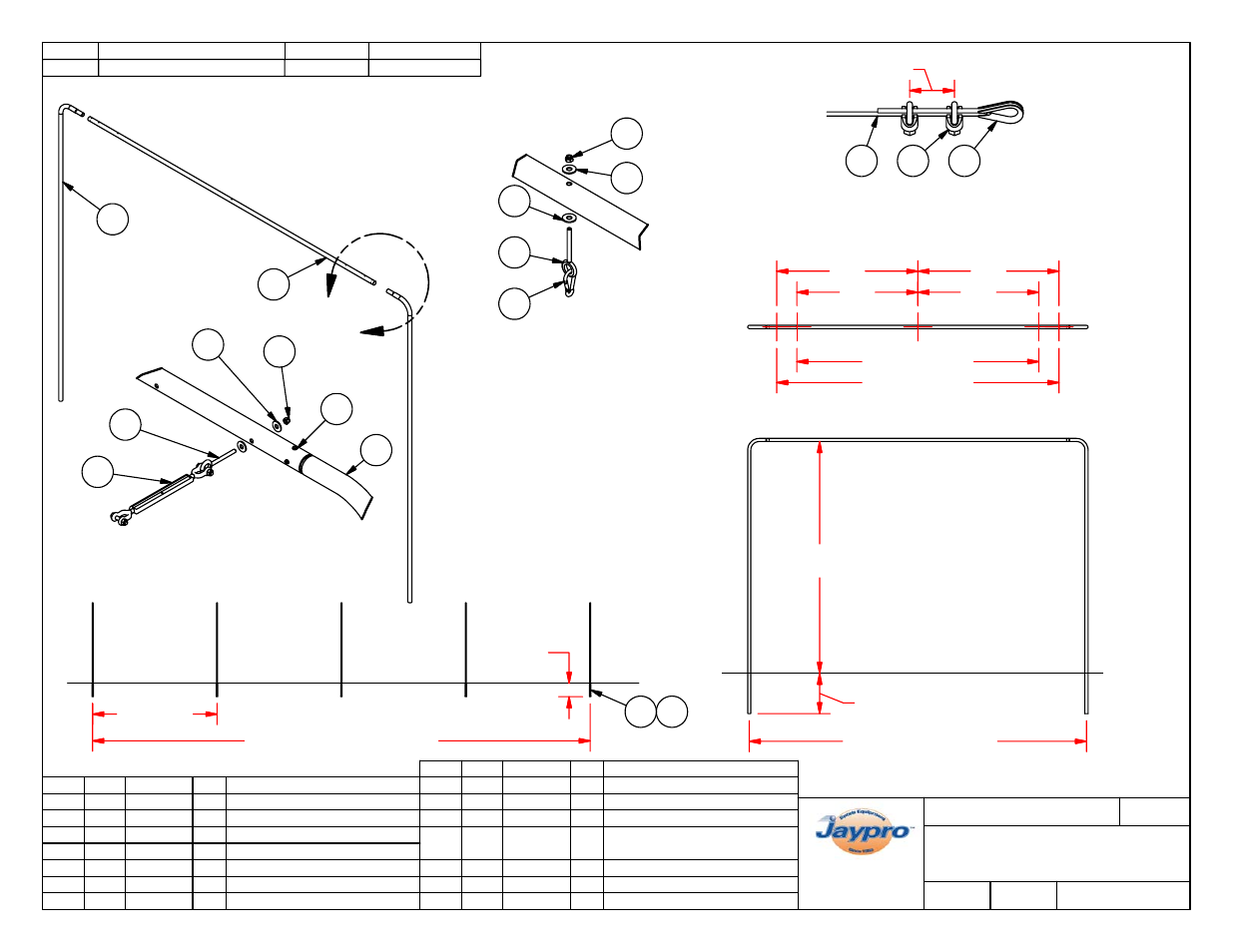

DETAIL A
(TYP ONE END ONLY)
DETAIL B
(TYP AT OTHER END)
976 Hartford Turnpike
Waterford, CT 06385 USA
(800)243−0533 Fax: (800)988−3363
www.jaypro.com
DATE: DRAWN BY:
1/4/2010
MODEL NUMBER: CHECKED BY:
PRODUCT NAME:
Moune T.
BBTF-70
OUTDOOR BATTING TUNNEL FRAMES
70 FT LONG CAGE
WVB
REV:
-
WICKET FRAME UPRIGHT - BBTF-A 10 1
WICKET FRAME CROSSBAR - BBTF-B 5 2
3/8"-16 TURNBUCKLE, JAW TO JAW N/A HM6275 3 3
STEEL SPRING CLIPS N/A HM5013 12 4
3/8"-16 x 3" LONG THREADED EYEBOLT,
ZP
N/A HB5048 15 5
3/8" FLAT WASHER, ZP N/A HW2050 30 6
3/16" CABLE CLAMP N/A HM218 12 7
DESCRIPTION REV PART # QTY ITEM
3/16" THIMBLE N/A HM251 6 8
#12-14 SELF-DRILLING SCREW, ZP N/A HS2663 24 9
3/16" GALV. CABLE x 76' N/A RC5012 3 10
8 1/2" ZIP TIES HEAVY DUTY N/A RP5013 300 11
3/8"-16 NYLON LOCK HEX NUT,ZP N/A HN265 15 12
2 1/4" ALUMINUM TUBE - BCGS-1 10 13
2 1/4" END CAP N/A EC0003 10 14
DESCRIPTION REV PART # QTY ITEM
A & B
11'-6" SURFACE
TO PLAYING
2'-0" TYP
74'-0" OVERALL SIDE VIEW
16'-8 5/8"
CENTER TO CENTER
7'-0" 7'-0"
14'-0" FOR NET
2'-0" TYP
2
1
6'-0" 6'-0"
12'-0" FOR NET
18'-6" TYP
REV DESCRIPTION DATE BY
- INITIAL RELEASE 1/4/2010 Moune T.
13 14
4
5
6
6
12
10 7 8
2 APPROX. "
END CABLE DETAIL
3
5
6
12
9
1
