SETUP INSTRUCTIONS (continued)
3

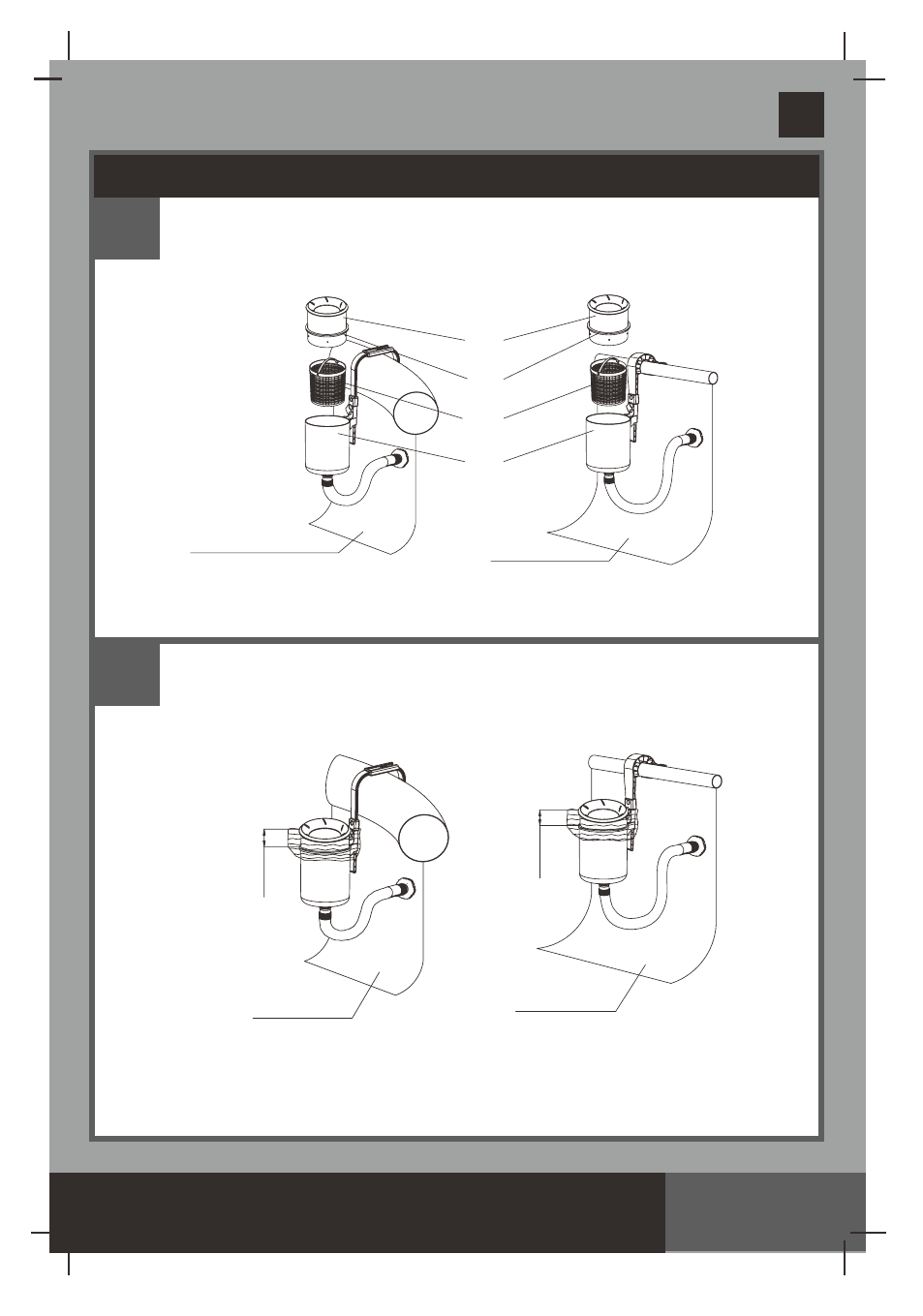

Place the basket (9), cover rim (7) and the floating cover (6) into the
skimmer (10). NOTE: the cover rim must be installed in place in order to
hold the Floating Cover in position.
EASY-SET® POOL
METAL FRAME POOL
6
7
9
4
The floating cover (6) should be floating off the skimmer (10) by 1" to 5"
(2.5cm to 12.7cm). Loosen the skimmer screw, slide the skimmer up and
down on the assembled hook to adjust the height. Hand tight the screw
when done.
1”- 5”
(2.5CM-12.7CM)
1”- 5”
(2.5CM-12.7CM)
EASY-SET® POOL METAL FRAME POOL
IMPORTANT: The skimmer must stay vertical at all times, so that the top of the
floating cover can parallel to the water surface for skimming.
10
Inside of the
Pool Wall
Inside of
the Pool Wall
Inside of the
Pool Wall
Inside of the
Pool Wall
