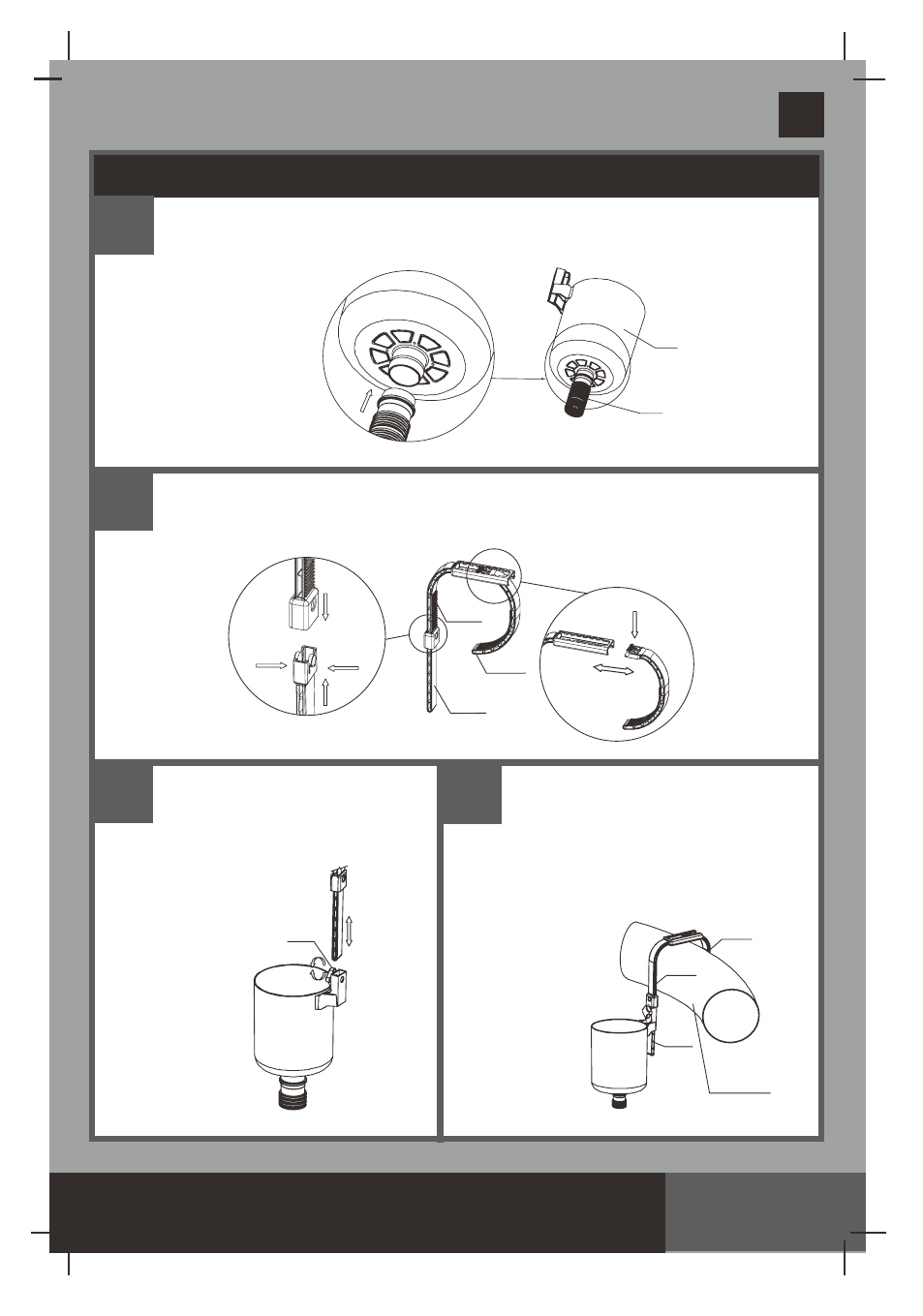

HOOK ASSEMBLY FOR EASY SET ® POOLS WITH INFLATABLE TOP RINGS
1
NOTE: If you are using a METAL FRAME POOL, go to page 8.
Connect the skimmer
hose (16) to the
skimmer (10)
bottom connector.
2
Assemble the hook as shown. Adjust the opening of the hook (13) by
pressing and sliding the arm (14) at the same time.
Press Press
Insert
Insert
Press
Slide
3 4
Loosen the skimmer
screw (11), attach the
assembled hook and hand
tighten the screw.
NOTE: Do not over
tighten or use tools
such as pliers.
Slide
Place the whole assembled
hook unit over the top of an
EASY-SET® Pool Top Ring near the
water outlet connector (lower hose
connection). Adjust the hook to be
snug around the
inflated ring
(see step #2).
Ensure
the hook is
securely
tightened
over the
pool.
10
13
14
12
11
16
Inflatable
Top Ring
13
14
12
