LADDER SETUP (continued)

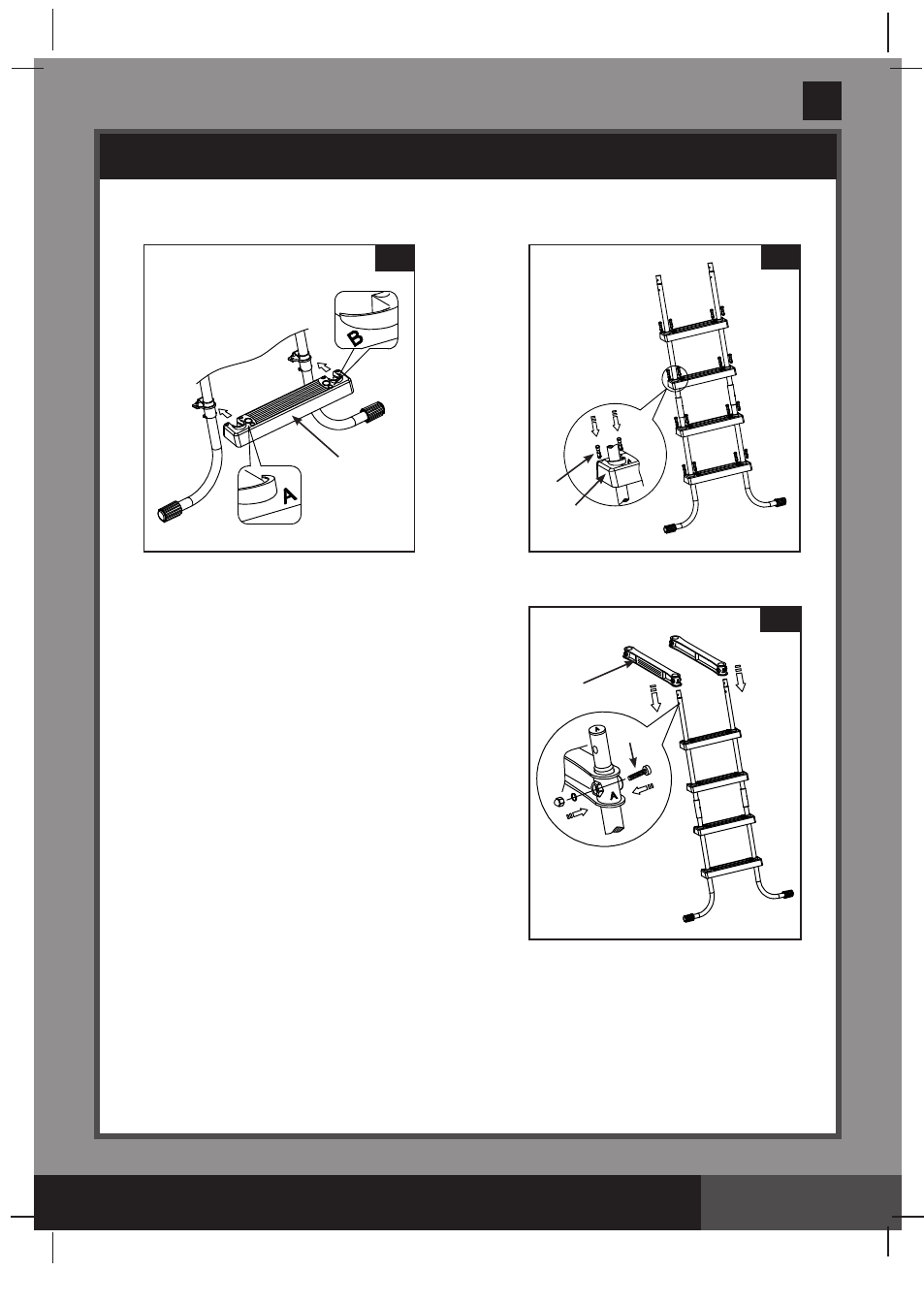

3. STEP INSTALLATION (refer to figures 2.1 through 2.2):
IMPORTANT: Make sure all pins are securely locked.
4. TOP BRACE INSTALLATION – ONE SIDE AT
A TIME (refer to figure 3):
Identify hole “A” and hole “B” on the top braces
(2), marked accordingly at each end. Slide the
top braces over the legs, making sure hole “A”
of one brace slides over leg “A” and hole “B” of
the other brace over leg “B”. The small holes on
the side of braces should align with the lower
holes on the legs. Fasten each brace to the legs
using the longer fasteners/screws (4). Do not yet
attach the other side of the ladder to the top
braces – this assembly step will follow later.
