SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 04/26/2013
English
Page 4

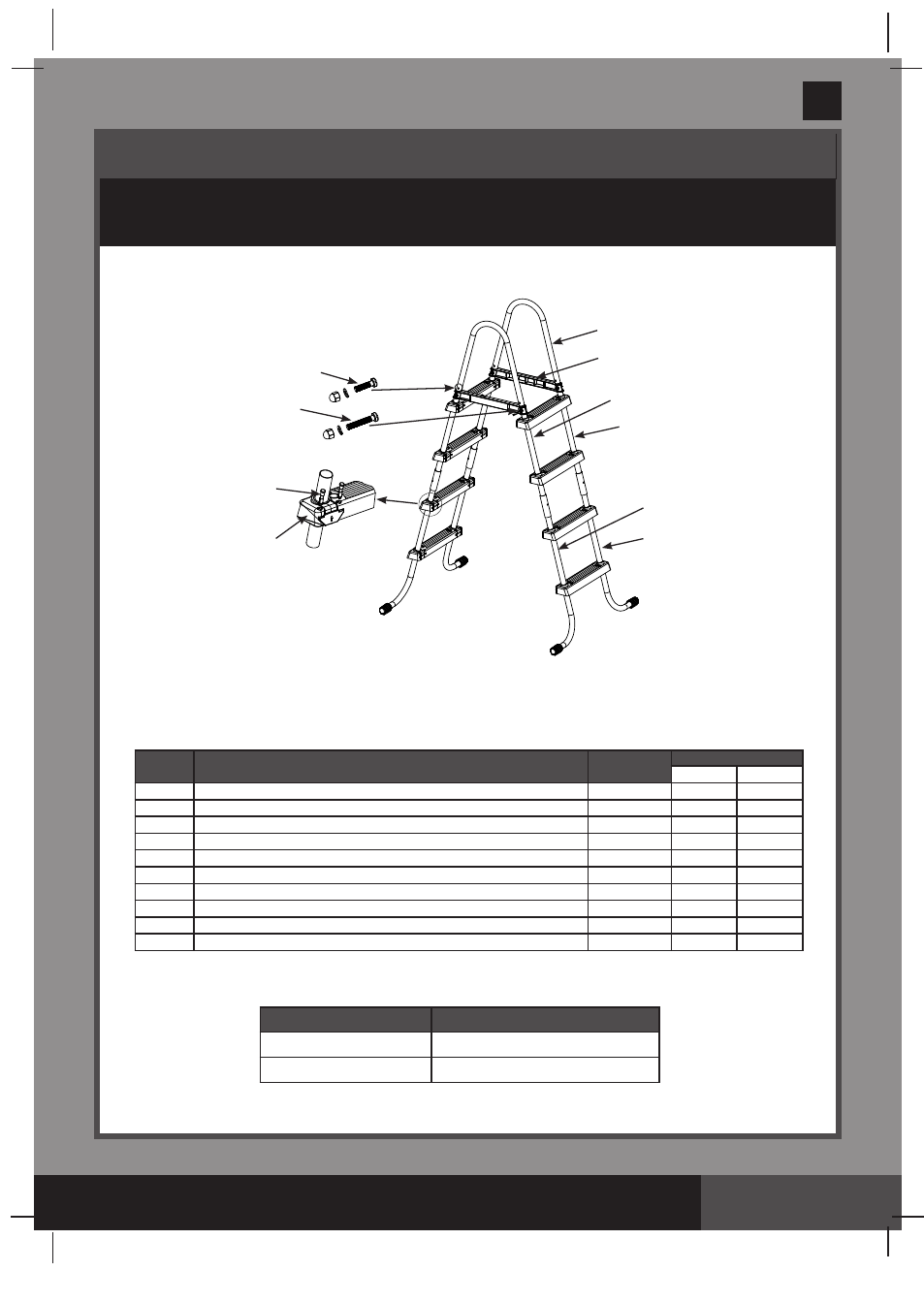

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF.
NO.
DESCRIPTION
QUANTITY SPARE PART NO.
#58974
#10903
1
U-SHAPED TOP RAIL
2
11167
11171
2
TOP BRACE
2
11168
11172
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5
10810
10810
4
LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA)
5
10227
10227
5
STEP MOUNTING PIN (WITH 2 EXTRA)
34
10349
10913
6
STEP
8
10348
10914
7
UPPER SIDE LEG (MARKED “A”)
2
11553A
11555A
8
UPPER SIDE LEG (MARKED “B”)
2
11553B
11555B
9
LOWER J-SHAPED SIDE LEG (MARKED “A”)
2
11554A
11556A
10
LOWER J-SHAPED SIDE LEG (MARKED “B”)
2
11554B
11556B
1
3
4
7
9
10
6
8
2
5
48” (122 cm) model
This ladder is designed and manufactured for Intex pool wall height:
Item #
Pool Wall Height
58974 (white & blue)
48in (122 cm)
10903 (silver & white)
48in (122 cm)
