(91PO) 48" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/25/2012
91PO
SAVE THESE INSTRUCTIONS
Page 7
English
SETUP
INSTRUCTIONS
LADDER SETUP (continued)

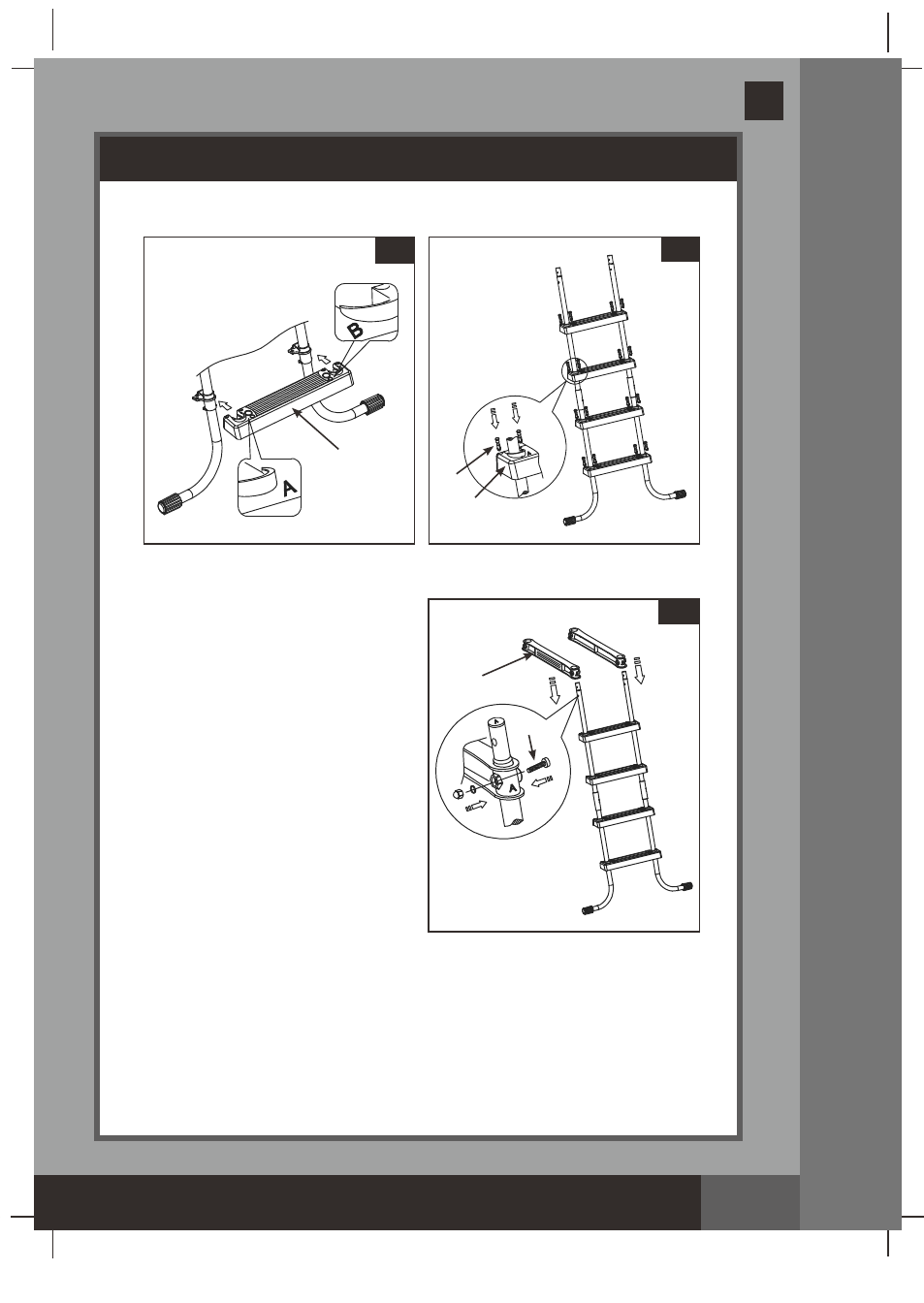

3. STEP INSTALLATION (refer to figures 2.1 through 2.2):
IMPORTANT: Make sure all pins are securely locked.
4. TOP BRACE INSTALLATION
– ONE SIDE AT A TIME (refer to
figure 3):
Identify hole “A” and hole “B” on the
top braces (2), marked accordingly
at each end. Slide the top braces
over the legs, making sure hole “A”
of one brace slides over leg “A” and
hole “B” of the other brace over
leg “B”. The small holes on the side
of braces should align with the lower
holes on the legs. Fasten each brace
to the legs using the longer
fasteners/screws (4). Do not yet
attach the other side of the ladder to
the top braces – this assembly step
will follow later.
2.1
A
B
6
2.2
A
B
5
6
A
B
3
2
4
