(91PO) 48" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/25/2012
91PO
SAVE THESE INSTRUCTIONS
Page 5
English
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
PARTS
REFERENCE

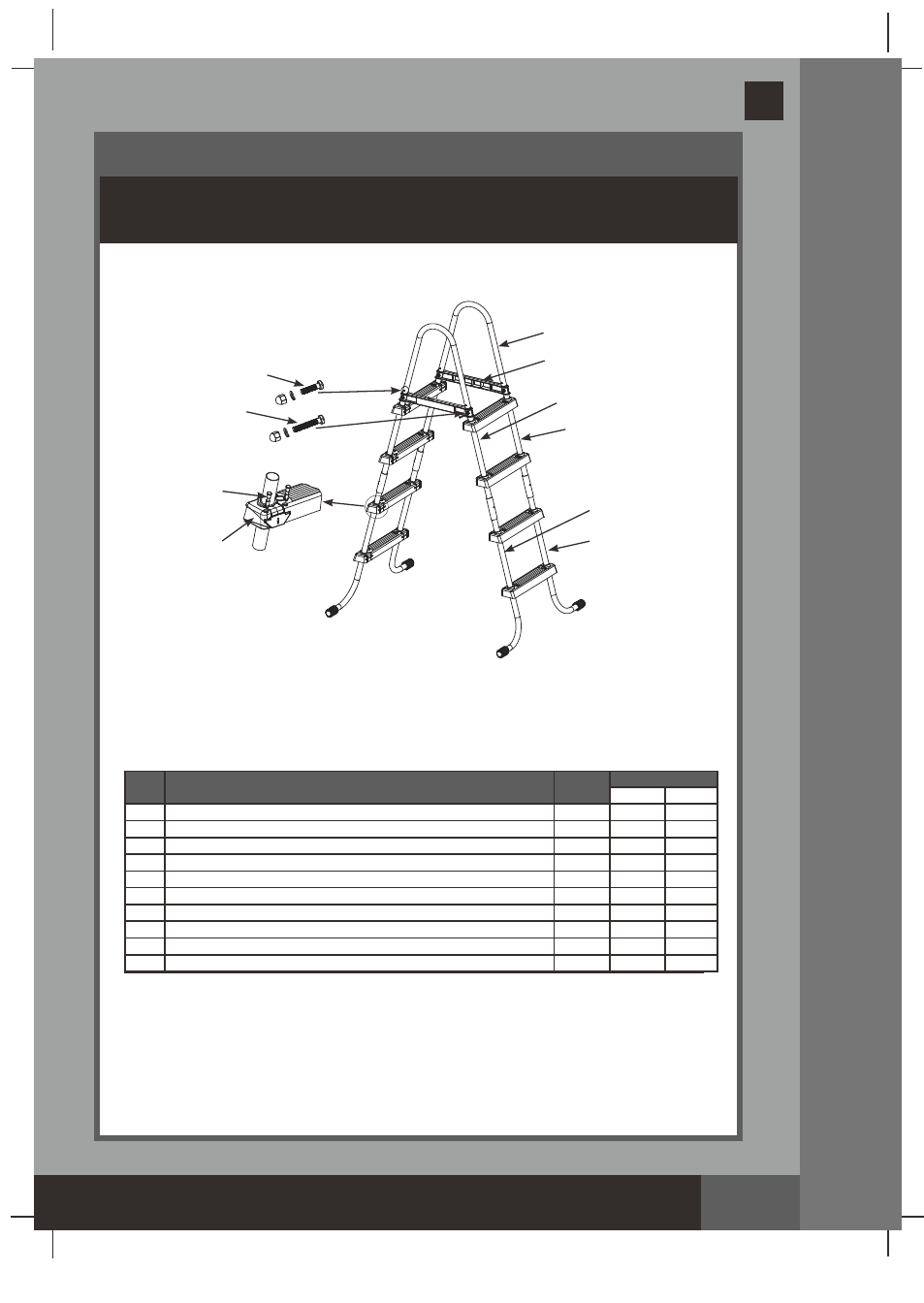

NOTE: Drawings for illustration purpose only. Actual product may vary. Not
to scale.
REF.
NO.
DESCRIPTION
QUANTITY SPARE PART NO.
#58974 #10903
1 U-SHAPED TOP RAIL
2
11167
11171
2 TOP BRACE
2
11168
11172
3 SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5
10810
10810
4 LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA)
5
10227
10227
5 STEP MOUNTING PIN (WITH 2 EXTRA)
34
10349
10913
6 STEP
8
10348
10914
7 UPPER SIDE LEG (MARKED “A”)
2
11553A 11555A
8 UPPER SIDE LEG (MARKED “B”)
2
11553B 11555B
9 LOWER J-SHAPED SIDE LEG (MARKED “A”)
2
11554A 11556A
10 LOWER J-SHAPED SIDE LEG (MARKED “B”)
2
11554B 11556B
1
3
4
7
9
10
6
8
2
5
48” (122 cm) model
