SETUP
INSTRUCTIONS
SETUP INSTRUCTIONS (continued)
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
CLEANING OR REPLACING FILTER CARTRIDGES
1. Make sure filter pump is not operating. Disconnect line cord.
2. To prevent water from escaping the pool, unscrew the pool inlet nozzle (10) and
strainer grid (11) from the strainer connectors and insert the hat-like plugs into
the strainer connectors.
3. In a counter-clockwise motion, remove threaded cover (3) and cover seal (4).
Be careful not to lose the cover seal (4).
4. Remove filter cartridge (5) to clean it. The filter may be cleaned from the spray
from a water hose.
5. Use judgement as to whether cartridge needs to be replaced.
6. Return cartridge to filtering position.
7. Return the seal (4) and threaded cover (3) to their original positions. Tighten
the threaded cover (3) by hand only, twisting it in a clock-wise direction.
8. After service, open the air release valve, remove the plugs, allow any air to
escape through the valve before tightening the valve again and replace the
pool inlet nozzle (10) and strainer grid (11). The pump is now primed with water
again and may be turned on.

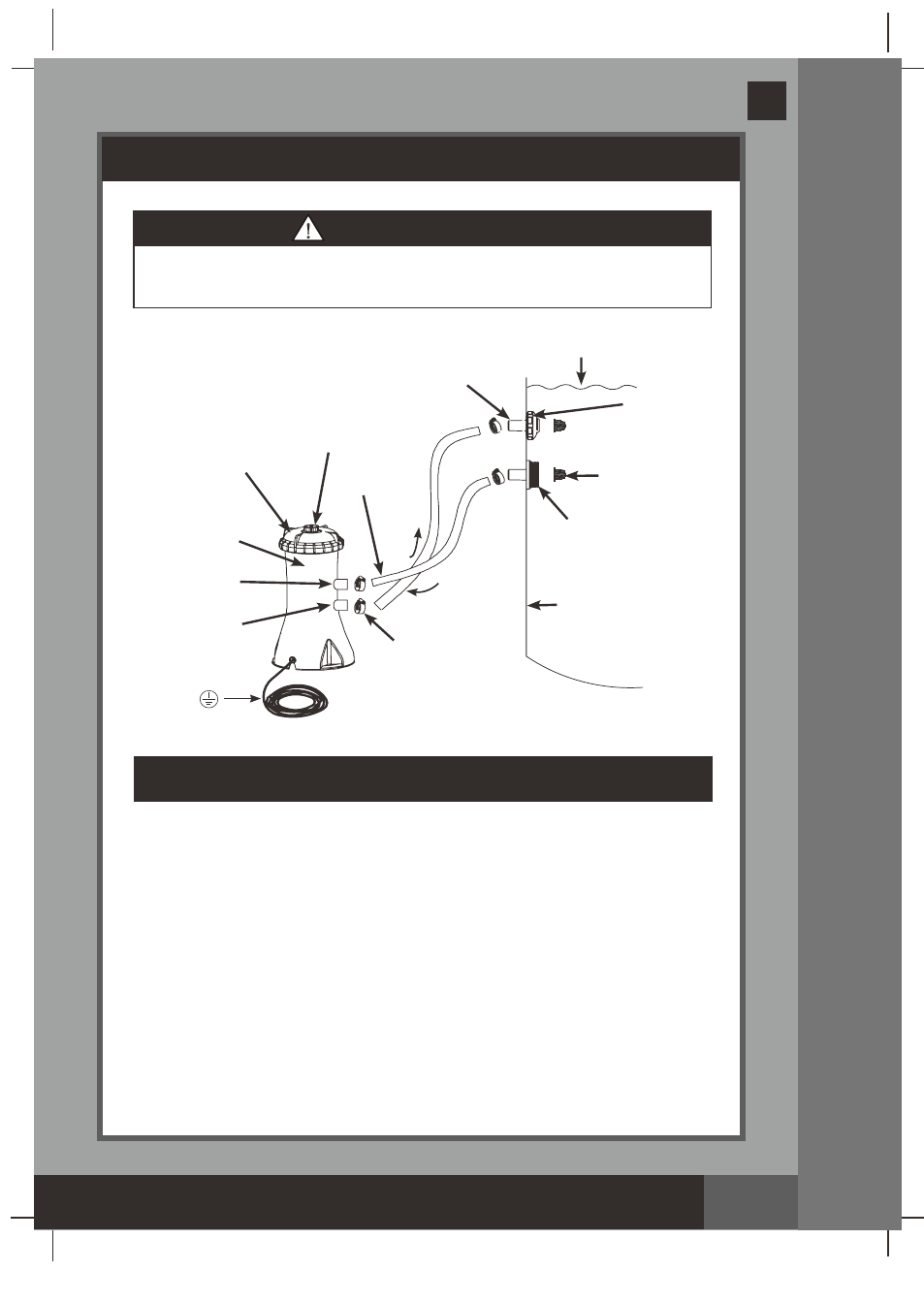

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
POOL INLET
NOZZLE
(REMOVE)
HOSE CLAMP
INSIDE OF POOL
STRAINER GRID
(REMOVE)
PLUG
UPPER PROTRUDING
HOSE CONNECTION
WA
TE
R
DI
RE
CT
ION
W
AT
ER
D
IR
EC
TIO
N
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
THREADED
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
