OPERATING INSTRUCTIONS
1. MAIN ON/OFF SWITCH
The On/Off switch supplies power to all of the functions of
the fireplace. This is an illuminated switch which normally
will light up when in the "on" position.
The control compartment is located behind the lower louvre
panel. To access the controls, simply flip down the lower
louvre panel. To locate the position of each control de-
scribed below, refer to Fig. 9.
During any service of this appliance, the
power to the unit must be turned off. It
is not acceptable to use the "On/Off"
switch to meet this requirement.
2. HEATER CONTROL
The Heater Control acts to turn the heater on and off as well
as setting the comfort level in the room. Turning the knob
clockwise from the off position will place the heater into
operation. The further the knob is rotated clockwise, the
higher the set point temperature. Turning the knob
counterclockwise will lower the set point temperature.
Turning it all the way counterclockwise will turn the heater
function off.
The Heat Hi/Lo Switch is located beside the On/Off switch.
When the Heat Hi/Lo Switch indicates the Off position the
heat is on Low (single state heat). When the Heat Hi/Lo
Switch indicates the On position the Heat is on High (full
state heat)
3. LOG ILLUMINATION CONTROL
This control varies the brightness of the light located above
the log set. Turn the knob to increase, decrease or turn off
the light as desired.
4. FLAME SPEED CONTROL
Turn the flame speed control knob to increase or decrease
the flame speed as desired.

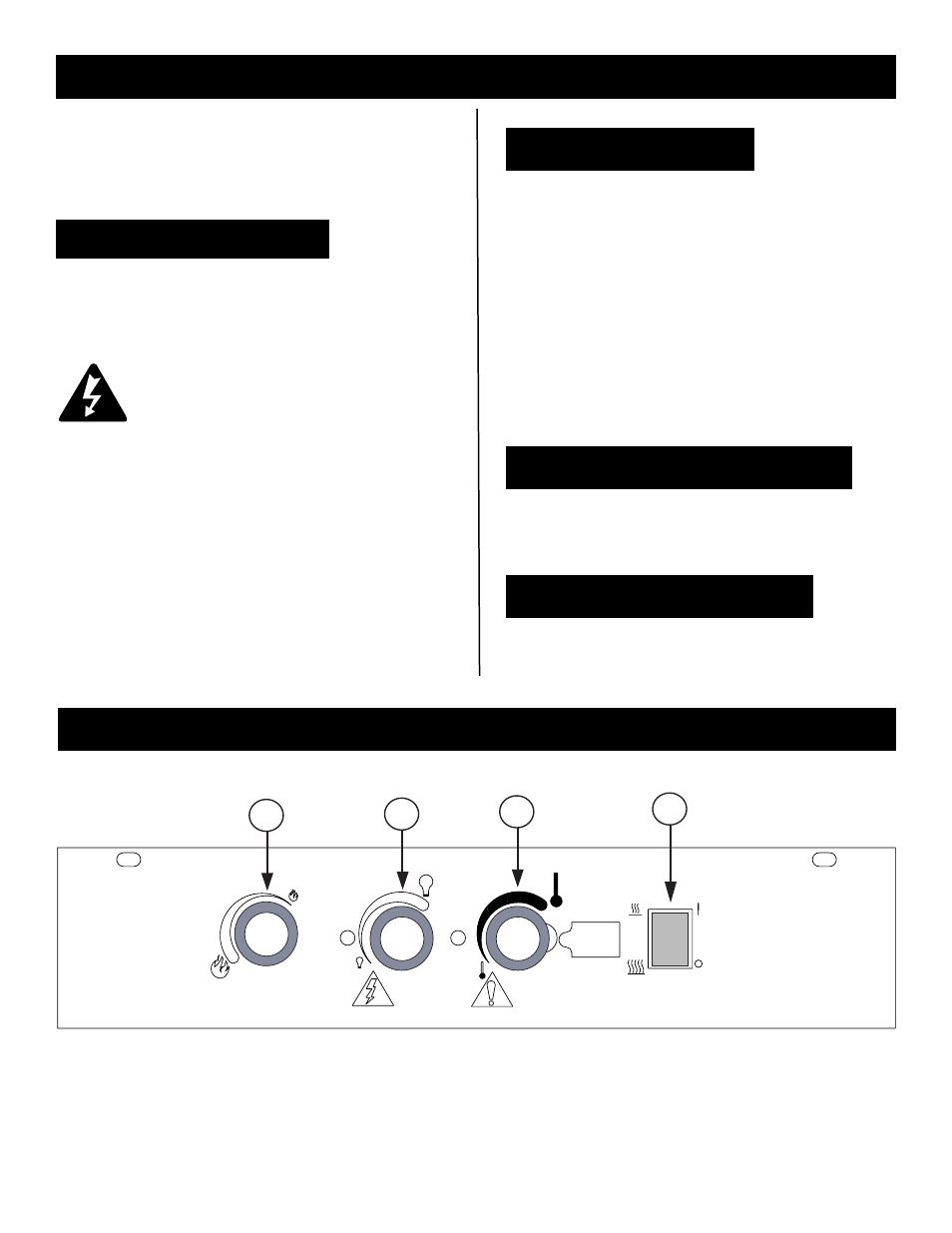

Fig. 9
CONTROL PANEL
10003011
