Maintenance cont.
How To Adjust The Squeegee
The following adjustments are set at the factory, however
they may require slight adjustment.

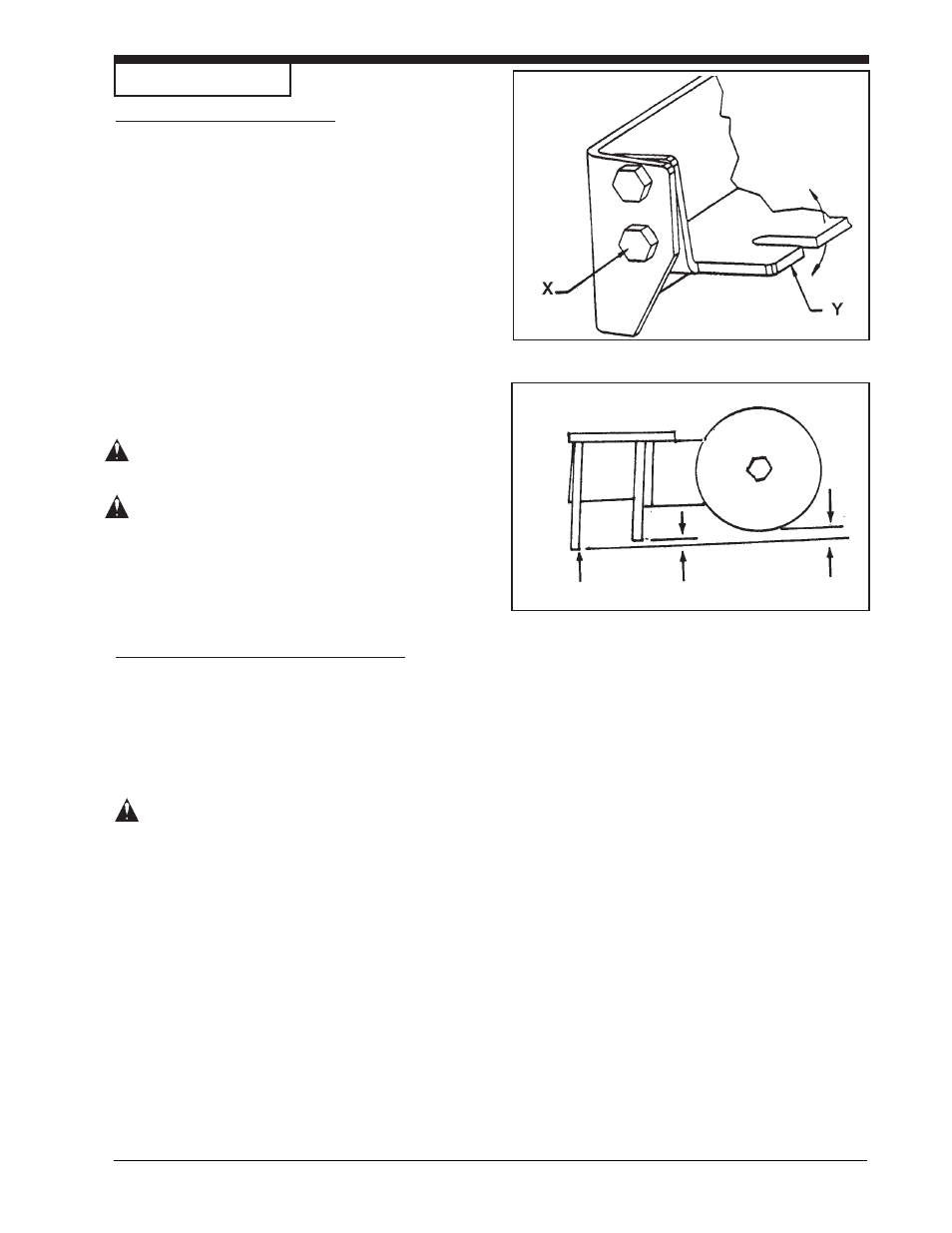

Adjusting Squeegee Tilt:
The tilt of the squeegee causes the rear blade to raise up
in the center or on the ends, depending on which
direction the tilt is changed. For tilt adjustment, refer to
figure 35. Loosen left and right screw "X". In order to
bring the blades down in the center, tip "Y" down. To
bring both ends down, tip "Y" up. Make very small
adjustments and try it until a uniform flare is achieved.
Adjusting Squeegee Blades:
When properly installed the front blade should be ap-
proximately 0.06" (1.5mm) above the rear blade. See
figure 36.
WARNING: Maintenance and repairs must be
done by authorized personnel only.
WARNING: Electrical repairs must be done by
authorized personnel only.
Consult your Clarke Technology Authorized Service
Person to do the service procedures.
Use only genuine Clarke Technology parts.
How to Center or Offset the Brush Head
The brush head on the Encore L26 can be centered or
offset 1 inch to the right side of the machine. To center
or offset the brush head, follow this procedure:
Recommended tools: 3/8" drive rachet, 3" extension and
9/16" socket.
CAUTION: Before offsetting the brush head, be
sure that the recovery tank is empty
of solution. Follow the instructions
on page 20 on how to drain the recov-
ery tank.
1. Turn the key switch "ON".
2. Raise the brush head by pressing and holding the
brush switch until the brush head is in its full up
position.
3. Turn the key switch "OFF" and remove the key.
4. Tip up the recovery tank until it locks in the full open
position.
5. Go to the front of the machine and unlatch the front
cover and swing cover open.
REAR BLADE 0.06 (1.5 mm)
Figure 35
Figure 36
