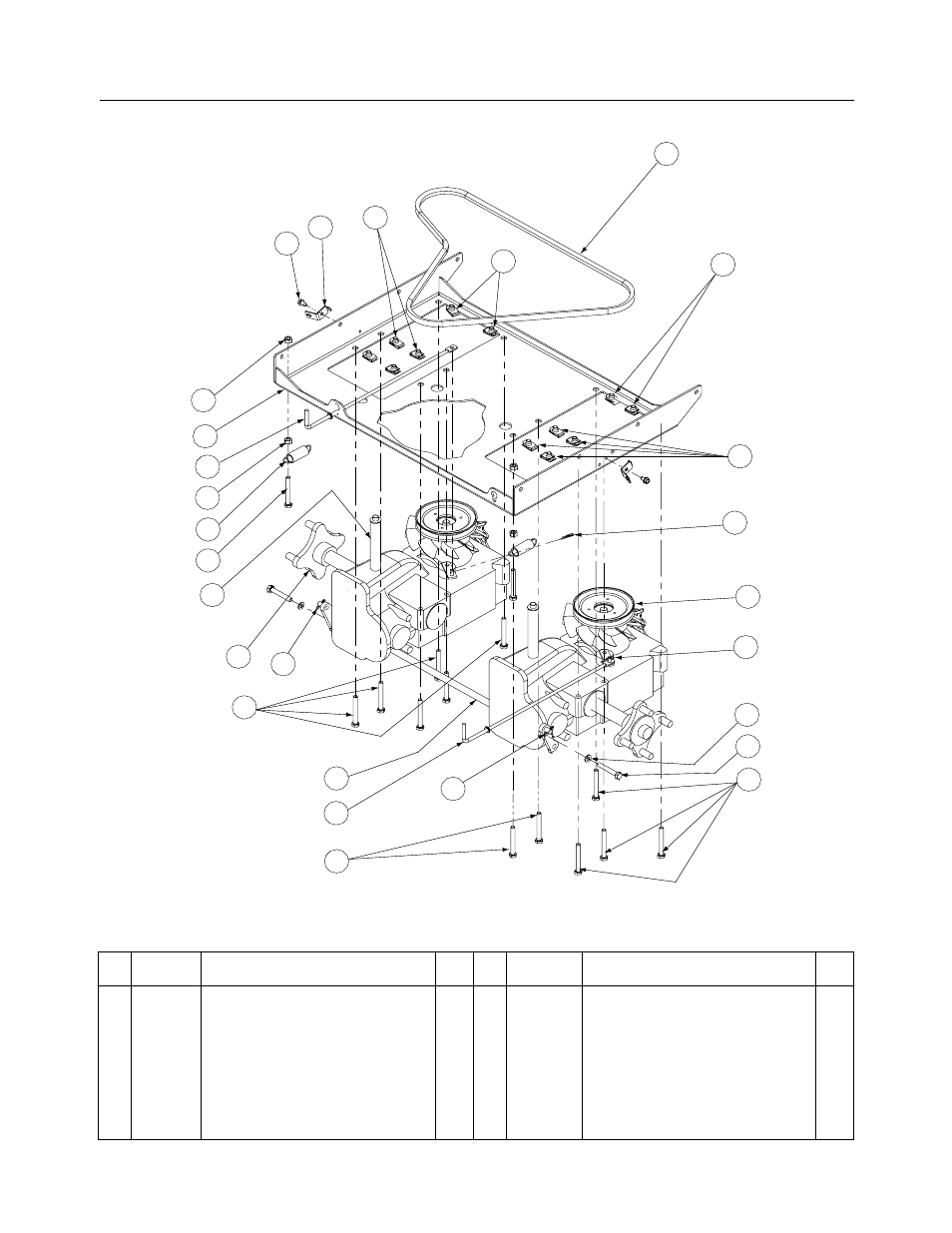

Drive Train Assembly- Figure 11 and Parts List
Ref.
No. Part No.
Description
Qty.
Ref.
No. Part No.
Description
Qty.
1
00013198 Hex Cap Screw, 5/16-18 x 2.0
2
10
01008380 Pump Rod
2
2
00012169 Flat Washer, .320 ID x .591 OD
2
11
01008414 Transmission Brace Tube
1
3
01002771 Cotter Pin, .072 x 1.12 Lg
4
12
00012166 Nut, 5/16-18
4
4
01003563 U-Nut, 5/16-18
12
13
01000628 Screw, 1/4-20 x 1/2
2
5
01007122 Hex Cap Screw, 5/16-18 x 2.5
14
14
01008758 Extension Spring, 1.0 OD x 5.000
2
6
01008192 IZT Transmission, Left Hand
1
15
01008611 Brake Cable Mounting Bracket
2
7
01008193 IZT Transmission, Right Hand
1
16
HG-51401 Hose, 1/2 Dia. x 4" Long includes:
1
8
01008349 V-Belt, 56.00
1
HG-70110 O-Ring Fitting Assembly
1
9
01008461 Transmission Mounting Bracket
1
HG-70109 Cap Vent Assembly
1
8
4
4
3
7
3
5
5
10
5
6
10
9
4
4
12
14
5
12
11
2
1
15
13
3
3
16
