Pink wire: (+) carjack input, Red wire sensor +12v power, Blue wire: neg. warn away – Crimestopper Security Products CS-2004DC User Manual

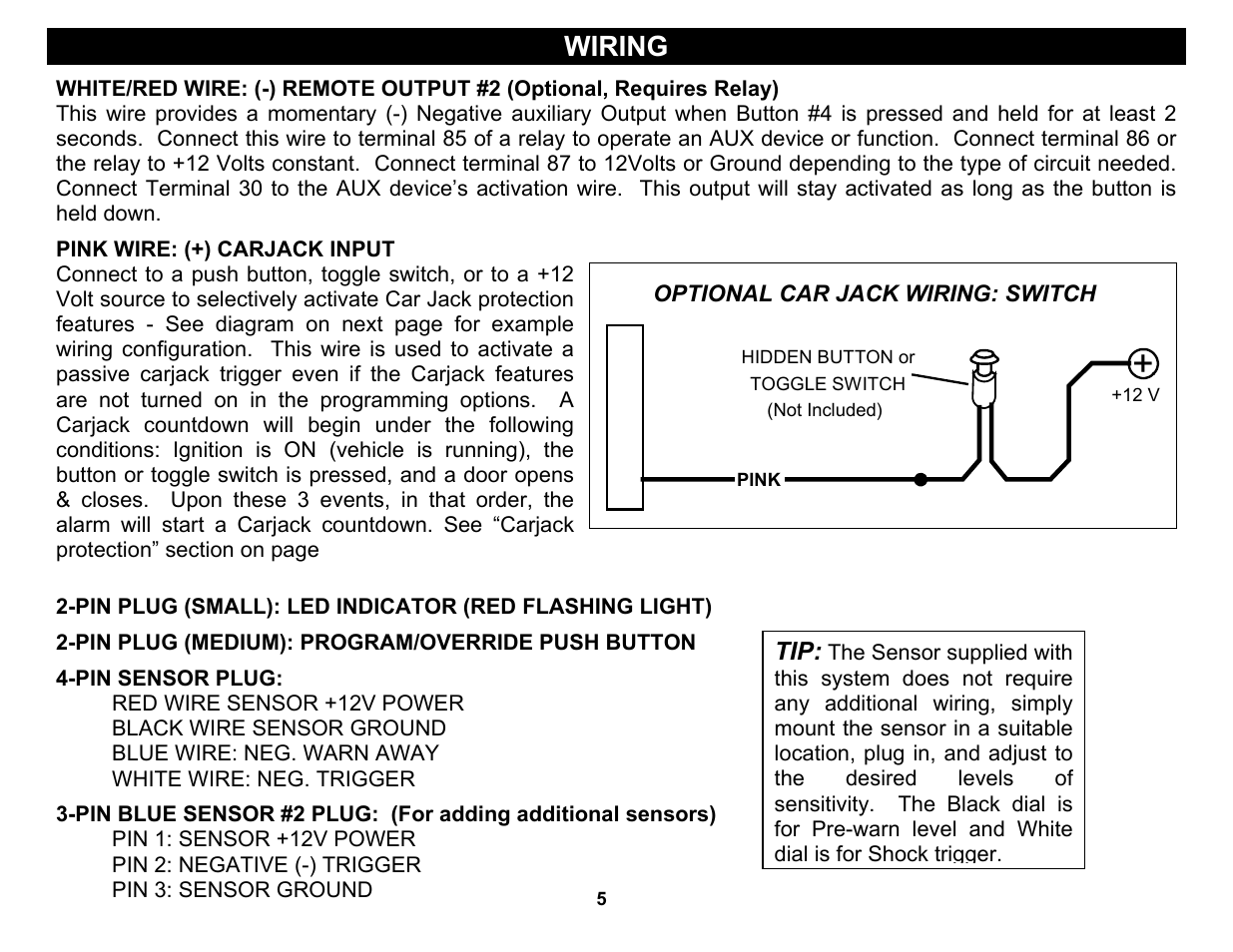

Page 5: White wire: neg. trigger, Pin 1: sensor +12v power, Pin 2: negative (-) trigger, Wiring
