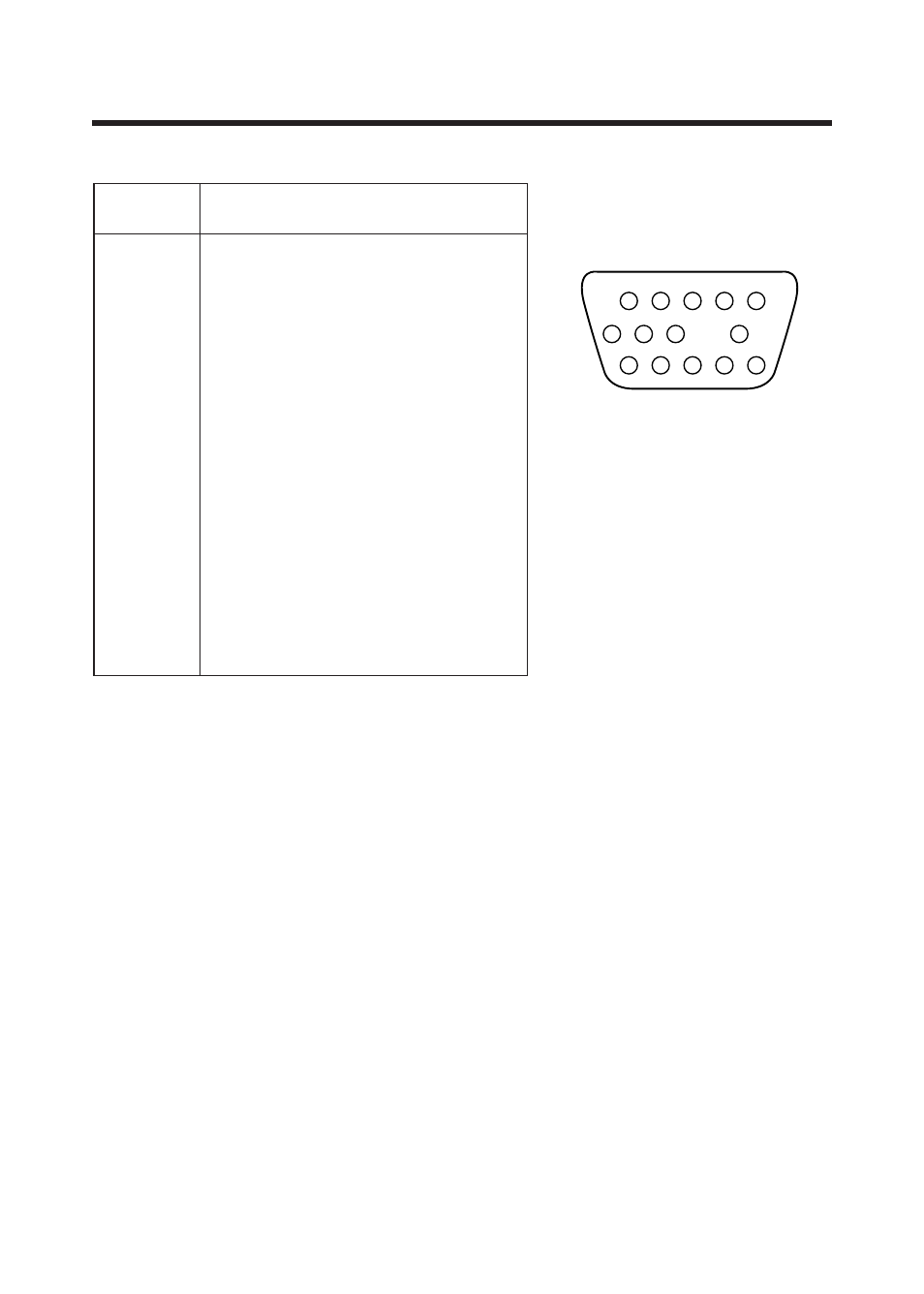

DESCRIPTION FOR D-SUB CONNECTOR
APPENDIX
Pin
Signal
1
Red
2
Green
3
Blue
4
GND
5
GND (Self -Test)
6
GND - Red
7
GND - Green
8
GND - Blue
9
No Pin
10
GND - H.Sync
11
GND-V.Sync
12
Bi-directional Data (SDA)
13
Horizontal Sync
14
Vertical Sync (VCLK)
15
Data Clock (SCL)
1
6
10
15
*GND
= Ground
