PRO RACK G STEREO MOD VERSION:
1. LINE INPUT JACK
THIS ¼ MONO JACK PROVIDES THE HIGH IMPEDANCE INPUT FOR CONNECTION
TO YOUR GUITAR
2. LINE OUTPUT JACK
THIS ¼ MONO JACK PROVIDES OUTPUT TO A SELECTED AMPLIFIED SPEAKER
SYSTEM
THIS VERSION OF THE PRO RACK G IS A CUSTOM VERSION FOR RACK DESIGNERS.
THIS SYSTEM PROVIDES CONNECTIONS THAT REQUIRE THE GUITAR TO BE PLUGGED
INTO THE LINE INPUT JACK (1) AND THE INPUT OF THE AMPLIFIER TO BE PLUGGED
INTO THE LINE OUTPUT JACK (2). THIS WILL ALLOW THE DECIMATOR TO TRACK
YOUR GUITAR SIGNAL MORE ACCURATELY AND WITH MORE PRECISION. CHANNELS 1
AND 2 ARE BOTH AVAILABLE TO PROVIDE NOISE REDUCTION FOR 2 SEPARATE
EFFECTS LOOPS OR STEREO CHANNELS.

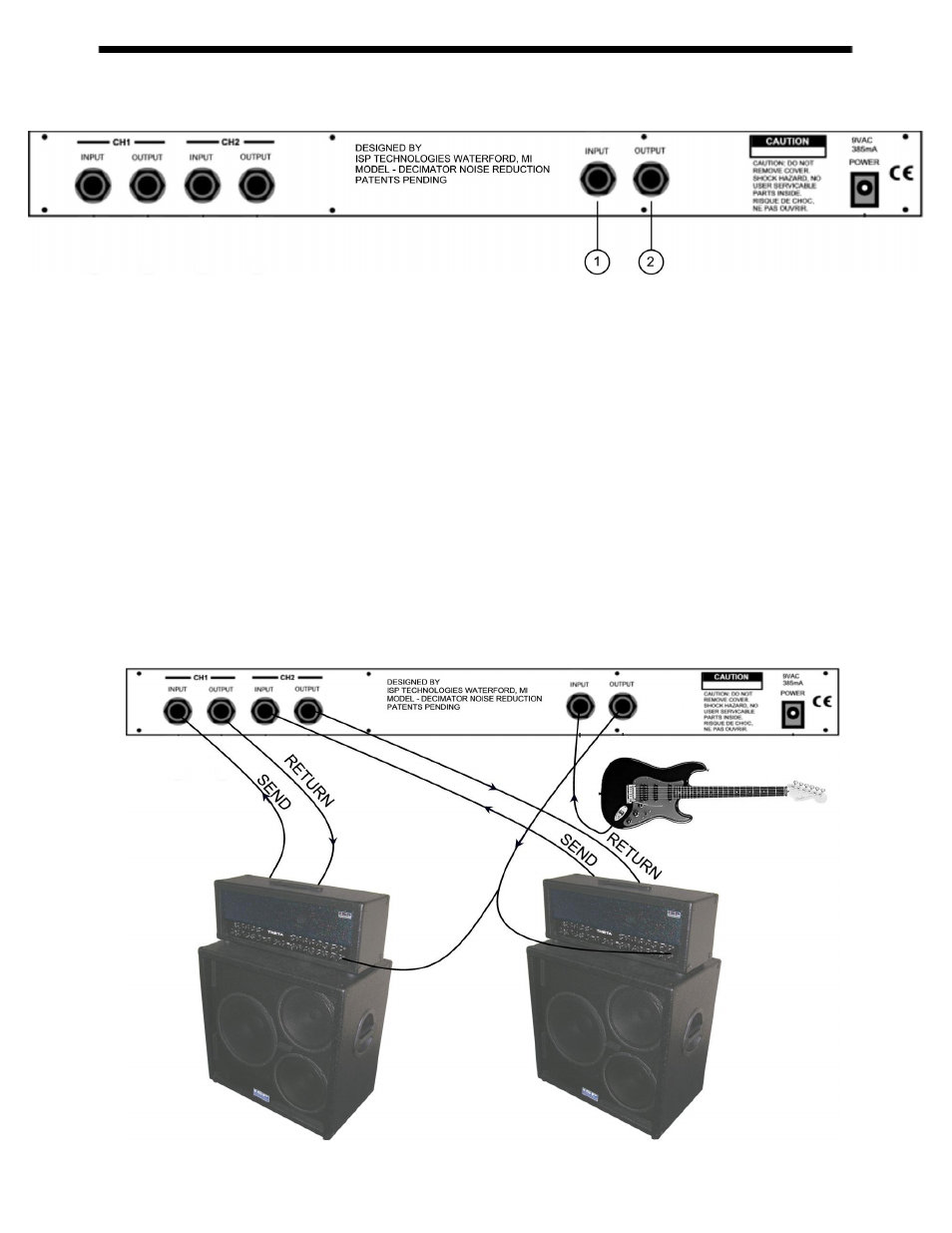

NOTE: THE DIAGRAM BELOW ILLUSTRATES
ONLY ONE CONFIGURATION POSSIBILITY.
