ISP Technologies THETA 212 Combo - Manual (Page 10)

5. CHANNEL SELECT SWITCH
The CHANNEL SELECT switch changes the COMBO operating channel from CLEAN to
DISTORT. The CHANNEL SELECT switch is a momentary switch that changes the channel
upon pushing the switch. This switch can be used with or without the
FOOTCONTROLLER connected.

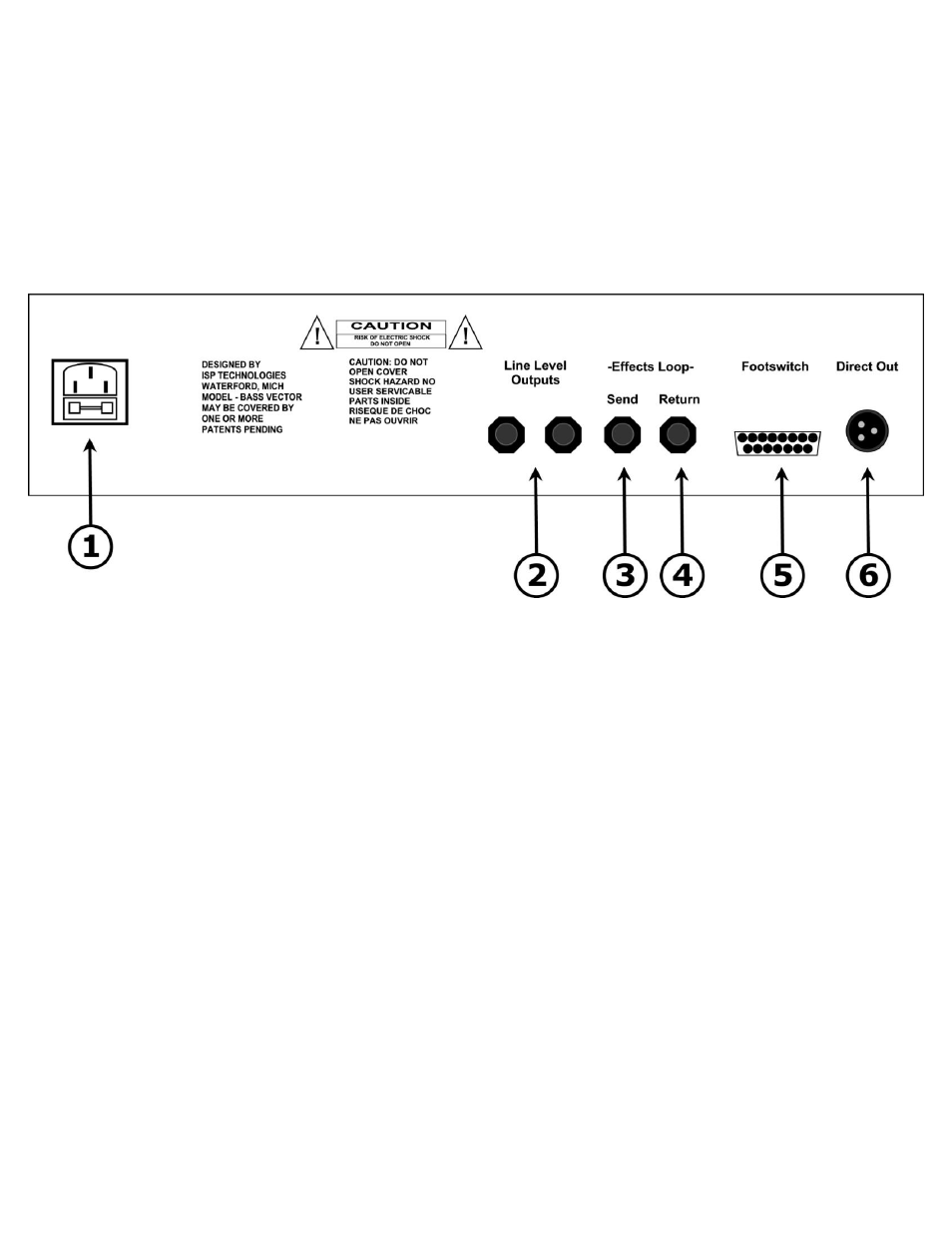

BACKPLATE CONTROLS
1. POWER INLET MODULE
This module provides a connection for the power cord and also houses the main fuse.
(see the fuse replacement section)
2. LINE LEVEL OUTPUTS
One ¼” Connection is linked directly to the power amp section and the other ¼”
connection is provided for hookup to the Vector 212 Extension Cabinet.
3. EFFECTS LOOP SEND
Connects to the input of an external effects device
4. EFFECTS LOOP RETURN
Connects to the output of an external effects device
5. FOOTSWITCH
Provides connection to the Theta Footcontroller. The THETA FOOTCONTROLLER is
connected using the 15-pin Dsub cable supplied with the THETA.
6. DIRECT OUT
Balanced XLR output for recordings or live performances
