TVR 42 Quick Start Guide 1 : EN
EN
TruVision DVR 42 Quick Start
Guide

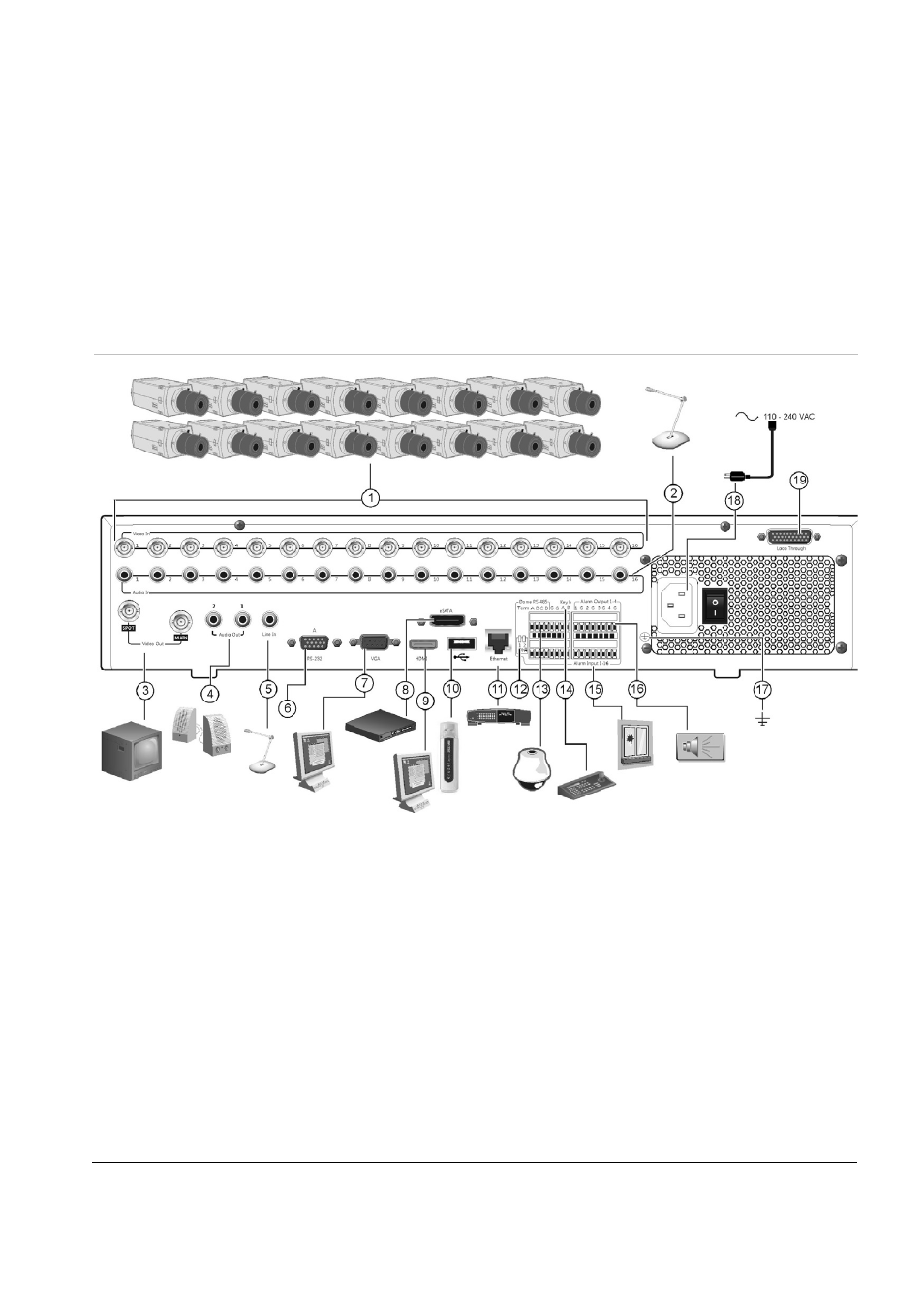

Figure 1: Back panel connections
1. Connect up to 16 analog cameras (depends on
the DVR model).
2. Connect up to 16 audio inputs to RCA
connectors.
3. Connect up to two CCTV monitors: Spot and
main monitors
4. Connect to speakers for audio output.
5. Connect RCA connector to a microphone.
6. Connect to a RS-232 device.
7. Connect one CCTV monitor (BNC-type
connector).
8. Connect to an optional eSATA device such as
SATA HDD, CD/DVD-RM.
9. Connect to a HDTV. The HDMI connection
supports both digital audio and video.
10. Connect to an optional USB device such as a
mouse, CD/DVD burner or HDD. The DVR
supports both a USB DVD and a USB HD on the
front and back USB ports.
11. Connect to a network.
12. Terminate the line to the dome cameras using
this RS-485 switch. Default is Off.
13. Connect to a PTZ control.
14. Connect to a keyboard (KTD-405 shown)
15. Connect up to 16 alarm inputs.
16. Connect up to four alarm relay outputs.
17. Connect to ground.
18. Connect to a power supply.
19. Loop through for up to 16 analog cameras.
