2 / 2 P/N 1072554A • REV 1.0 • ISS 18JUN12
Connect a coaxial cable from the camera’s BNC connector to a
CCTV monitor or video recording device. Connect a 12 VDC or
24 VAC power supply to the power input of the camera.
Caution: Check for polarity when using a 12 VDC power supply.
3. Adjust the lens (see Figure 3).
To adjust the horizontal angle of the platform up to 180 degrees,
turn the platform.
To adjust the horizontal angle of the rotor up to 350 degrees, turn
the rotor on the platform.
To adjust the vertical angle of the platform up to 90 degrees, turn
the platform.
4. Adjust the focus and zoom of the camera by using the zoom and
focus ring thumbscrews (see Figure 4).
5. Secure the dome cover with screws.
Programming
Once the camera hardware has been installed, the camera can then
be configured. Program the camera by attaching a standard video
monitor to the system.
OSD control pad
The on-screen display (OSD) control pad (see Figure 1) is a five-
direction button that lets you manually control the camera functions.
Table 1 below lists the OSD control pad functions and describes their
use.
Table 1 Description of the OSD control pad
Pad direction Description
Up Moves the cursor upward to select an item
Left Moves the cursor left to select or adjust the options
of the selected item.
Right Moves the cursor to the right to select or adjust the
options of the selected item.
Down Moves the cursor downward to select an item.
Enter Press the center of the control pad to display the
Setup menu. If the selected item has its own menu,
press the control pad to enter a submenu.
Accessing the menus
Press Enter on the camera’s OSD control pad to display the Main
menu (see Error! Not a valid bookmark self-reference. below). The
Main menu provides access to the camera configuration options (see
“Menu map” below). The OSD display is only available in English.

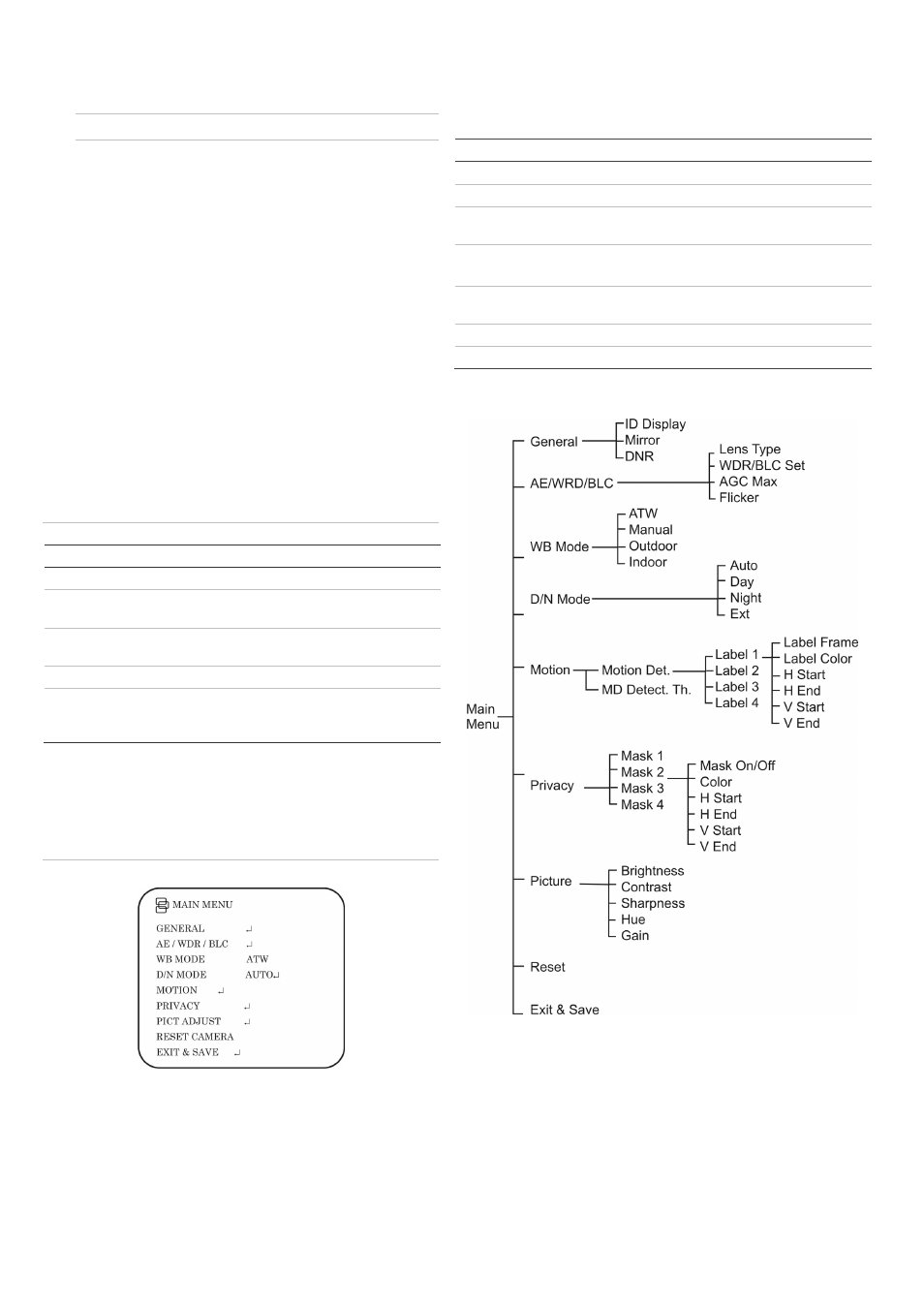

Figure 5: The Main menu screen
To access the Main menu:
1. Press the OSD control pad to access the Main menu and its
submenus.
2. Push the pad up/down to move between menu options.
3. Push the pad left/right to select an option.
4. When in a sub menu, select Return to return to the previous
menu.
5. To exit a menu and return to live mode, move the cursor to Exit at
the bottom of the screen and press Enter . All changes are saved.
Specifications
Model UVD-6120VE-2-P / UVD-6120VE-2-N
Lens type Varifocal: 2.8 to 10 mm
Power supply 24 VAC / 12 VDC
Current 250 mA
Max: 400 mA (heater on)
Power consumption 3 W
Max: 9.6 w (heater on)
Operating
temperature -30 to +50 °C (-22 to +122 °F)
Weight 1130 g (2.49 lbs)
Dimensions (H Ч Ш) 105 Ч133 mm (4.11 × 5.22 in.)
Menu map
